D-Link WebSmart 24-port Fast Ethernet Switch Item # 909436

(0)
 |
 |

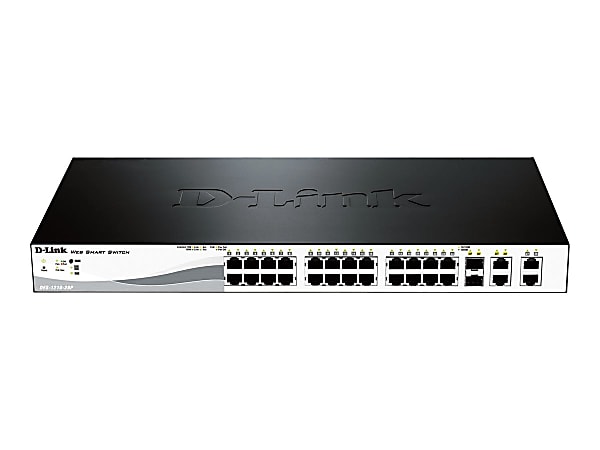

D-Link WebSmart 24-port Fast Ethernet Switch
$375.99 / each
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The Web Smart Switches are designed to provide SMB users a complete control over their network. With Ethernet and Gigabit copper ports capable of connecting to existing CAT5 twisted-pair cables, these switches eliminate the need for a complex reconfiguration process. The DES-1210 Series allows for flexible connection to a backbone or servers. Additionally, all ports support auto-negotiation of MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports.

      Product Details

      Item # 909436
      OfficeMax # 23615241
      Manufacturer # DV7424
      brand name D-Link
      Bypass No
      depth 8.3 in.
      dimensions 1 7/10" x 17 3/10" x 9 4/5"
      Ethernet Technology Gigabit Ethernet; Fast Ethernet
      Expansion Slot Type SFP
      Flash Memory 16 MB
      form factor Desktop
      height 1.7 in.
      Input Voltage 110 V AC; 220 V AC
      Layer Supported 2
      Manageable Yes
      Management SmartConsole; Web Based GUI; SNMP v1/v2/v3; CLI; Telnet; QoS; VLAN; DHCP; D-View 6.0
      manufacturer D-Link Systems, Inc
      Media Type Supported Twisted Pair; Optical Fiber
      model DES-1210-28P
      Modular No
      Network Technology 10/100/1000Base-T; 10/100Base-TX; 1000Base-X
      Number of SFP Slots 2
      Number of Total Expansion Slots 2
      Port/Expansion Slot Details 24 x Fast Ethernet Network; 4 x Gigabit Ethernet Network; 2 x Gigabit Ethernet Expansion Slot
      ports 24 Power over Ethernet (PoE, RJ-45)
      Power Over Ethernet (PoE) PoE
      power source Power Supply
      Product Series DES-1210
      Product Type Ethernet Switch
      Shared SFP Slot Yes
      Total Number of Network Ports 24
      width 17.3 in.
      Show More ▾

                Customer Reviews

                From the Manufacturer|Powered by  Webcollage

                Thank You Is the information in this section helpful? Yes / No

                Description

                • Overview

                  The DES-1210 Series is the latest generation of D-Link® 10/100 Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configuration features ensures your network remains protected after an upgrade from IPv4 to IPv6. By offering multiple management options, these switches allow quick deployment, infrastructure expansion, and seamless upgrades. Targeting small and medium sized businesses, the DES-1210 Web Smart switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

                  The DES-1210 Series switches support 24 or 48 10/100BASE-TX ports. In addition, each switch supports 4 Gigabit ports – two are dedicated 10/100/1000Mbps copper (RJ45), while the other two are Gigabit “combo” ports and can be used for either copper (RJ45) or SFP optical.

                • PoE Support (DES-1210-28P only)

                  One model in the DES-1210 series family, the DES-1210-28P, delivers Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. It supports 802.3at on its first four ports (30W max per port) and supports 802.3af on ports 5 through 24 (15.4W max. per port.) Its total power budget is 193W. Using the product’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. The switches also support time-based PoE – an option that allows administrators to set a time window that determines when each port’s PoE power is turned on and off.

                • Energy Saving

                  The DES-1210 Series Switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, these switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switches so that unnecessary power consumption can be saved during off hours. The switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

                  Easy Management

                  The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. In the intial installation, the D-Link Network Assistant Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and subnet masks quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, can be completed using batch operations for multiple switches.

                • Auto Surveillance VLAN and Voice VLAN

                  The D-Link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of realtime video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at a high level. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

                • Extensive Layer 2 Features

                  Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

                • Secure your Network

                  D-Link’s innovative Safeguard Engine® protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

                • Limited Lifetime Warranty

                  D-Link offers a Limited Lifetime Warranty on the DES-1210 Series Web Smart switches to further its commitment to product quality and long-term customer confidence.

                Features

                Security
                • Access Control List
                • D-Link Safeguard Engine
                • Port Security
                • ARP Spoofing Prevention
                • Smart IP-MAC-Port Binding
                • DHCP Server Screening

                Management
                • IPv4/ IPv6 Dual Stack
                • Web GUI (supports 10 languages)
                • D-Link Network Assistant Utility
                • SNMP and RMON
                • Simplified CLI through Telnet

                QoS
                • Supports IEEE 802.1p QoS
                • Supports DSCP

                Advanced Features
                • Auto Surveillance VLAN
                • Auto Voice VLAN
                • Port or VLAN-based Loopback Detection
                • Cable Diagnostics
                • LLDP/LLDP-MED

                Images

                {"images":[{"sources":[{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/3818b019-30a0-48a6-9037-8a3605ac79a6.png.w960.png","width":960,"height":540},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/3818b019-30a0-48a6-9037-8a3605ac79a6.png.w480.png","width":480,"height":270},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/3818b019-30a0-48a6-9037-8a3605ac79a6.png.w240.png","width":240,"height":135}],"src":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/3818b019-30a0-48a6-9037-8a3605ac79a6.png","width":1664,"height":936},"runtimeSrc":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/3818b019-30a0-48a6-9037-8a3605ac79a6.png.web.png","width":1664,"height":936},"assetWrapper":"image-gallery","caption":"Front Image","description":"DES-1210-28P Front Image","isAdaCompliant":true},{"sources":[{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/ae10bac6-dc77-45af-8329-7894b7179dbc.png.w960.png","width":960,"height":540},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/ae10bac6-dc77-45af-8329-7894b7179dbc.png.w480.png","width":480,"height":270},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/ae10bac6-dc77-45af-8329-7894b7179dbc.png.w240.png","width":240,"height":135}],"src":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/ae10bac6-dc77-45af-8329-7894b7179dbc.png","width":1664,"height":936},"runtimeSrc":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/ae10bac6-dc77-45af-8329-7894b7179dbc.png.web.png","width":1664,"height":936},"assetWrapper":"image-gallery","caption":"Side Image","description":"DES-1210-28P Side Image","isAdaCompliant":true},{"sources":[{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/793a16a7-f5f0-429a-ae4b-3c4c08864578.png.w960.png","width":960,"height":540},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/793a16a7-f5f0-429a-ae4b-3c4c08864578.png.w480.png","width":480,"height":270},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/793a16a7-f5f0-429a-ae4b-3c4c08864578.png.w240.png","width":240,"height":135}],"src":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/793a16a7-f5f0-429a-ae4b-3c4c08864578.png","width":1664,"height":936},"runtimeSrc":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/793a16a7-f5f0-429a-ae4b-3c4c08864578.png.web.png","width":1664,"height":936},"assetWrapper":"image-gallery","caption":"Back Image","description":"DES-1210-28P Back Image","isAdaCompliant":true},{"sources":[{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/1aba730f-b1d1-4aef-af50-2c5853567014.png.w960.png","width":960,"height":540},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/1aba730f-b1d1-4aef-af50-2c5853567014.png.w480.png","width":480,"height":270},{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/1aba730f-b1d1-4aef-af50-2c5853567014.png.w240.png","width":240,"height":135}],"src":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/1aba730f-b1d1-4aef-af50-2c5853567014.png","width":1664,"height":936},"runtimeSrc":{"src":"/_cp/products/DES-1210-28P/tab-5351d1c7-394f-436a-914a-9e60925bedf2/1aba730f-b1d1-4aef-af50-2c5853567014.png.web.png","width":1664,"height":936},"assetWrapper":"image-gallery","caption":"DES-1210 Series","description":"DES-1210 WebSmart Series","isAdaCompliant":true}]}

                Specifications

                General

                Port Standards & Functions
                • IEEE 802.3 10BASE-T Ethernet
                • IEEE 802.3u 100BASE-TX (Fast Ethernet)
                • IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
                • IEEE 802.3z Gigabit Ethernet (fiber)
                • IEEE 802.3x Flow Control for Full-Duplex Mode
                • Auto-negotiation

                Number of Ports
                • DES-1210-28
                     • 24 10/100 Mbps
                     • 2 10/100/1000 Mbps
                     • 2 Gigabit Combo (RJ45/SFP)
                • DES-1210-28P
                     • 24 10/100 Mbps PoE
                     • 2 10/100/1000 Mbps
                     • 2 Gigabit Combo (RJ45/SFP)
                • DES-1210-52
                     • 48 10/100 Mbps
                     • 2 10/100/1000 Mbps
                     • 2 Gigabit Combo (RJ45/SFP)

                Network Cables
                • UTP Cat. 5, Cat. 5e (100 m max.)
                • EIA/TIA-568 100-ohm STP (100 m max.)

                Full/Half Duplex
                • Full/half duplex for 10/100 Mbps speeds
                • Full duplex for Gigabit speed

                Media Interface Exchange
                • Auto or configurable MDI/MDIX

                Performance

                Switching Capacity
                • DES-1210-28
                     • 12.8 Gbps
                • DES-1210-28P
                     • 12.8 Gbps
                • DES-1210-52
                     • 17.6 Gbps

                Transmission Method
                • Store-and-forward

                MAC Address Table
                • DES-1210-28
                     • 8K entries per device
                • DES-1210-28P
                     • 8K entries per device
                • DES-1210-52
                     • 16K entries per device

                MAC Address Update
                • Up to 256 static MAC entries
                • Enable/disable auto-learning of MAC addresses

                Maximum 64 bytes packet forwarding rate
                • DES-1210-28
                     • 9.5 Mpps
                • DES-1210-28P
                     • 9.5 Mpps
                • DES-1210-52
                    • 13.1 Mpps

                Packet Buffer Memory
                • DES-1210-28
                     • 4.1 Mbits
                • DES-1210-28P
                     • 4.1 Mbits
                • DES-1210-52
                     • 12.1 Mbits

                Flash Memory
                • 16 MB

                Power over Ethernet (DES-1210-28P only)

                PoE Standard
                • IEEE 802.3af and IEEE 802.3at

                PoE Capable Ports
                • Ports 1 to 4: Up to 30 W
                • Ports 5 to 24: Up to 15.4 W

                PoE Power Budget
                • Max. 193 W

                Physical & Environment

                AC Input
                • 100 to 240 VAC 50/60 Hz internal universal power supply

                Maximum Power Consumption
                • DES-1210-28
                     • 9.46 W
                • DES-1210-28P
                     • 189.6W (PoE on)
                     • 17.8W (PoE off)
                • DES-1210-52
                     • 14.77W

                Standby Power Consumption
                • DES-1210-28
                     • 4.1 W
                • DES-1210-28P
                     • 11.4 W
                • DES-1210-52
                     • 8.1 W

                Fan Quantity
                • DES-1210-28
                     • 0
                • DES-1210-28P
                     • 3
                • DES-1210-52
                     • 0

                Acoustics
                • DES-1210-28
                     • 0 dB
                • DES-1210-28P
                     • 53.7 dBA
                • DES-1210-52
                     • 0 dB

                Heat Dissipation
                • DES-1210-28
                     • 29.69 BTU/hr
                • DES-1210-28P
                     • 89.05 BTU/hr
                • DES-1210-52
                     • 47.81 BTU/hr

                Operating Temperature
                • 23-122 °F (-5-50 °C)

                Storage Temperature
                • -4-158 °F (-20-70 °C)

                Operating Humidity
                • 0% to 95% non-condensing

                Storage Humidity
                • 0% to 95% non-condensing

                Dimensions

                • DES-1210-28
                     • 13.00 x 7.09 x 1.73 in.
                     • (330 x 180 x 44 mm)
                • DES-1210-28P
                     • 17.32 x 8.27 x 1.73 in.
                     • (440 x 210 x 44 mm)
                • DES-1210-52
                     • 17.32 x 8.27 x 1.73 in.
                     • (440 x 210 x 44 mm)

                Weight
                • DES-1210-28
                     • 3.48 lbs (1.58 kg)
                • DES-1210-28P
                     • 7.12 lbs (3.23 kg)
                • DES-1210-52
                     • 6.15 lbs (2.79 kg)

                Diagnostic LEDs
                • DES-1210-28
                     • Power (per device)
                     • Link/Activity/Speed (per port)
                • DES-1210-28P
                     • Power (per device)
                     • PoE Max (per Device)
                     • Fan (per device
                     • Link/Activity/Speed (per port)
                     • Button to switch LED display mode between PoE and Link/Activity
                • DES-1210-52
                     • Power (per device)
                     • Fan (per device)
                     • Link/Activity/Speed (per port)

                MTBF
                • DES-1210-28
                     • 330,182 hours
                • DES-1210-28P
                     • 205,416 hours
                • DES-1210-52
                     • 487,667 hours

                EMI Certifications
                • FCC Class A
                • CE Class A
                • VCCI Class A
                • IC, C-Tick

                Safety
                • cUL
                • CE LVD

                3rd Party Certifications
                • IPv6 Ready Logo Phase 2

                Software

                L2 Features
                • MAC Address Table
                     • DES-1210-28: 8K entries
                     • DES-1210-28P: 8K entries
                     • DES-1210-52: 16K entries
                • Flow Control
                     • 802.3x Flow Control
                     • HOL Blocking Prevention
                • Port Mirroring
                     • One-to-One
                     • Many-to-One
                     • Supports Mirroring for Tx/Rx/Both
                • Spanning Tree
                     • Supports 802.1D STP 2004 edition
                     • Supports 802.1w RSTP
                     • Supports Root Restriction(defined in 802.1Q-2005)
                • 802.3ad Link Aggregation
                     • DES-1210-28: / DES-1210-28P
                          • Max. 8 groups per device/8 ports per group
                     • DES-1210-52:
                          • Max. 16 groups per device/8 ports per group

                L2 Multicasting
                • Forward all unregistered groups
                • Filter all unregistered groups
                • MLD snooping
                     • Support MLD v1,v2
                     • 256 MLD snooping groups
                • IGMP Snooping
                     • Supports IGMP v1,v2, v3 awareness
                     • Supports 256 IGMP snooping groups
                     • Supports 64 static multicast address

                VLAN
                • 802.1Q tagged VLAN
                • VLAN Group
                     • Max. 256 static VLAN groups
                     • Max. 4094 VIDs
                • Management VLAN
                • Asymmetric VLAN
                • Auto Voice VLAN
                • Auto Surveillance VLAN

                Quality of Service (QoS)
                • 802.1p
                • Max. 4 queues per port
                • Queue Handling
                     • Strict
                     • Weighted Round Robin (WRR)
                • Bandwidth control
                • CoS Based on:
                     • 802.1p
                     • DSCP
                     • ToS
                     • TCP/UDP port number
                     • IPv6 traffic class

                Security
                • 802.1x
                     • Supports IPv4/IPv6 RADIUS Server
                     • Supports Port-based access Control
                     • Supports EAP, OTP, TLS, TTLS and PEAP
                     • Supports MD5 authentication
                     • Supports 802.1X session timeout attribute
                • D-Link Safeguard Engine
                • DHCP Server Screening
                • ARP Spoofing Prevention
                • Storm Control
                • Traffic Segmentation
                • Port Security
                • DoS Attack Prevention
                • SSH
                • SSL
                • Smart Binding(IP-MAC-Port Binding, IMPB)
                • Duplicate Address Detection (DAD)

                Access control list section
                • ACL based on:
                     • 802.1p priority
                     • VLAN
                     • MAC address
                     • Ethernet type
                     • IPv4 and IPv6 address
                     • LLC mask
                     • DSCP
                     • Protocol type
                     • TCP/UDP port number
                     • IPv6 Traffic Class
                • Max. 50 ingress ACL profiles
                • Max. 1280 ingress ACL rules

                Management
                • Web-based GUI
                • Compact CLI through Telnet
                • Telnet Server (IPv4 / IPv6)
                • D-Link Network Assistant Utility
                • SNMP (IPv4 / IPv6)
                     • Supports v1/v2c/v3
                • SNMP Trap
                • System Log
                     • Max. 500 log entries
                     • Supports IPv4 / IPv6 log server
                • TFTP Client (IPv4 / IPv6)
                • BootP/DHCP Client (IPv4 / IPv6)
                • LLDP
                • LLDP-MED
                • SNTP (IPv4/v6)
                • DHCP Auto Configuration
                • RMON v1
                • IPv4/v6 Dual Stack
                • DDP (D-Link Discover Protocol)

                MIB
                • RFC1213 MIB II
                • RFC1493 Bridge MIB
                • RFC1907 SNMPv2 MIB
                • RFC1757,RFC2819 RMON MIB
                • RFC1215 MIB Traps Convention
                • RFC2233 Interface Group MIB
                • RFC1398,1643,1650,2358,2665 Ether-like MIB
                • RFC2674,4363 802.1p MIB
                • IEEE 802.1AB-2005 LLDP-MIB
                • ZoneDefense MIB
                • DDP MIB

                Warranty
                • Limited Lifetime Warranty*

                Ordering Information
                DES-1210-28      28-Port 10/100 Web Smart Switch including 2 Gigabit BASE-T and 2 Gigabit Combo BASE-T/SFP
                DES-1210-28P      28-Port 10/100 Web Smart PoE Switch including 2 Gigabit BASE-T and 2 Gigabit Combo BASE-T/SFP
                DES-1210-52      52-Port 10/100 Web Smart Switch including 2 Gigabit BASE-T and 2 Gigabit Combo BASE-T/SFP

                Optional Management Software
                DV-600S      D-View 6.0 Network Management Software (Standard Edition)
                DV-600P      D-View 6.0 Network Management Software (Professional Edition)

                Optional SFP Transceivers
                DEM-310GT      1000BASE-LX, single-mode, 10 km
                DEM-311GT      1000BASE-SX, multi-mode, 550 m)
                DEM-211      100BASE-FX, multi-mode, 2 km
                DGS-712      1000BASE-T, SFP transceiver

                * Limited lifetime warranty available only in the U.S.A.
