Tripp Lite Isobar Premium Surge Suppressor Item # 925137
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case, unique noise filtration system and built-in single line phone suppression for modems, the Isobar/Isotel series offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOTEL8ULTRA offers 8 outlets arranged in four filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3840 joules/92,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Pair of RJ11 jacks offer single phone line surge suppression for modems, fax machines and cordless phones. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 12 foot AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers.
|brand name||Tripp Lite|
|Certifications & Standards||UL1449 (let through rating 330V); ANSI C62.41; UL1283; UL1363; UL497A; FCC Part 68; cUL; IEEE 587 category A and B|
|color||gray - ac cord; black - receptacle|
|Compatibility||Computers; Network Equipment; CAD / CAM / CAE Workstations; Internetworking Accessories; Telecommunications Systems; Point of Sale Equipment; Audio / Video & Home Theater Systems|
|Input Connectors||1 x power NEMA 5-15|
|Input Voltage||120 V AC|
|Maximum Line Current||12 A|
|Maximum Surge Current||92 kA|
|Output Voltage||120 V AC|
|Plug/Connector Type||NEMA 5-15P|
|Power Cord/Cable Length||12 ft|
|Power Handling||1440 VA|
|Receptacles||8 x NEMA 5-15R|
|Status Indicators||Line OK; Line Fault; Protection Present|
|Surge Energy Rating||3840 J|
|warranty length||limited lifetime|
|Weight (Approximate)||3.40 lb|
|What's Included||Isobar ISOTEL8ULTRA 8-Outlets 120V Surge Suppressor; RJ11 telephone cable; Set of 4 outlet safety covers; Instruction Manual with Warranty Information|
|Show More ▾|
Exclusive Isobar Technology Provides the Most Premium Protection from Power Surges
With more than 19 million satisfied customers worldwide, Tripp Lite's Isobar® is the safe choice when purchasing a premium surge suppressor. Tripp Lite's exclusive Isobar surge suppression technology, combined with a nearly indestructible metal case, stops even the strongest surges before they can damage or destroy sensitive equipment. The ISOTEL8ULTRA features unique isolated filter banks that block disruptive EMI/RFI line noise interference and prevent mutual interference between connected components. These premium features make the ISOTEL8ULTRA ideal for a wide range of applications in factories, warehouses, retail outlets, home offices, and anywhere reliable, surge-protected outlets are required.

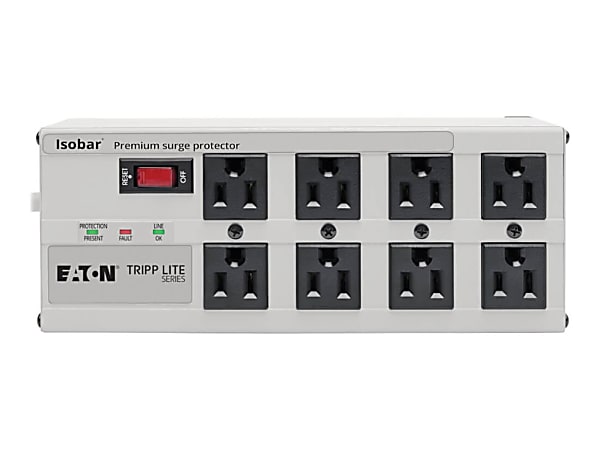

The ISOTEL8ULTRA offers powerful surge protection for all electronics. It provides 8 NEMA 5-15 R outlets arranged in four isolated filter banks. Outlets are widely spaced to accommodate up to four large transformers without blocking the remaining outlets. A set of four plug-in covers is included to safeguard unused outlets. Diagnostic LEDs confirm power availability, line fault and surge protection status at a glance. An extra-long, 12-foot cord enables connection to a distant wall outlet, and a space-saving, right-angle plug allows furniture to be placed flush against the wall. Four keyhole slots on the back of the unit enable wall-mounting
More joules means more protection! The ISOTEL8ULTRA's 3840-joule surge suppression rating, Isobar surge protection technology and rugged all-metal housing shield connected equipment from even the strongest surges. EMI/RFI line noise filtering helps components perform at their peak. Line noise filtering eliminates performance problems that can be caused by radio transmissions, fluorescent lighting and appliances, while promoting longer component life spans.
Devices connected to the same surge suppressor can interfere with one another's performance—for instance, when office equipment or household appliances (printers, copiers, blenders, vacuums, fans) degrade TV picture and sound quality. The Isobar is the only surge suppressor with internal barriers (called isolated filter banks) that prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors, and similar problems. Isolated filter banks ensure that peripheral devices and appliances don't degrade the performance of computers and sensitive A/V components.
A phone connection represents a potential back door through which a damaging surge could reach your equipment. The ISOTEL8ULTRA includes one set of built-in tel/DSL (RJ11) jacks to prevent surges from damaging your modem/fax/phone equipment (6-foot telephone cord included).
Built-In Diagnostic Capability
The ISOTEL8ULTRA features three diagnostic LEDs (LINE OK, GROUND OK & SURGE OK) that show power and protection status at a glance. An illuminated master switch provides one-touch power control over all connected components.
The ISOTEL8ULTRA features an extra-long, 12-foot cord to reach distant outlets. A space-saving, right-angle plug allows furniture to be placed flush against the wall. The ISOTEL8ULTRA's rugged all-metal case stands up to harsh environments such as warehouses, garages, and factory floors. The case is equipped with keyhole mounting tabs to facilitate permanent wall-mounting and under-counter installation. Four included outlet covers safeguard unused outlets.
The ISOTEL8ULTRA comes with $50,000 of Ultimate Lifetime Insurance coverage for connected equipment—guaranteed lifetime protection against damage due to surges, including direct lightning strikes. Additionally, all Tripp Lite surge suppressors are backed by a lifetime product warranty.
