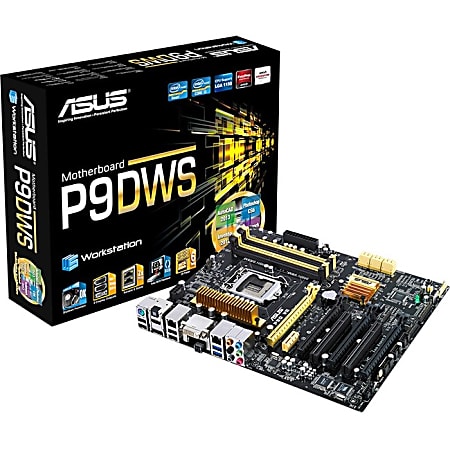

Asus P9D WS Workstation Motherboard - Intel Chipset - Socket H3 LGA-1150
1 / 1
$248.99/each
Description
Fully ISV (Independent Software Vendor) certified, the P9D WS has been designed for workstation and high-end desktop usage, with wider memory compatibility. It features the ASUS Dr. Power utility, which monitors power supply health to prevent sudden shutdowns, and extensive I/O including diverse display ports. The P9D WS works with standard DDR3 non-error correcting (non-ECC) unbuffered memory, and server-grade error-correcting (ECC) unbuffered memory, which is more stable and reliable.
Specifications
Item # | 929845 |
Manufacturer # | RG1584 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS EZ Flash, ASUS Quiet Thermal Solution, ACPI 2.0a support, SMBIOS 2.6 support, USB BIOS Flashback, UEFI BIOS |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz |
Buttons & Keys | MemOK |
Chipset Manufacturer | Intel |
Compatible Processors | Core i5, Core i3, Core i7, Xeon E3-1200 series |
controller type | Serial ATA/600 |
depth | 9.6 in. |
DisplayPort | Yes |
DVI | Yes |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x USB 2.0 - Type A; 1 x serial - header; 1 x audio - header; 1 x FireWire - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | P9D WS |
Network Controller | Intel I210 |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 4 |
Number of PCI Slots | 2 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 7 |
Onboard Audio Header | Yes |
Onboard Parallel Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 DVI out; 2 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 1 onboard FireWire 400; 3 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 2 USB 3.0 |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
Processor Technology | Turbo Boost Technology 2.0; Quick Sync Video Technology |
PS/2 Port | Yes |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 10 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC892 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC, ECC |
Total Number of Onboard FireWire/i.LINK Ports | 1 |
Total Number of Onboard USB Ports | 5 |
Total Number of PCI Express Slots | 5 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
What's Included | P9D WS Workstation Motherboard; User's Manual; I/O Shield; 1 x COM port cable(s); 6 x SATA 6Gb/s Cable(s); 1 x Q-connector(s) (2 in 1); 1 x 2-port USB2.0 + 1394 bracket(s) |
$248.99/each
