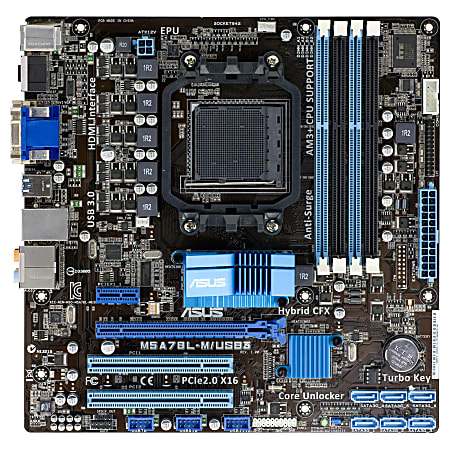

Asus M5A78L-M/USB3 Desktop Motherboard - AMD Chipset - Socket AM3+
1 / 1
$60.09/each
Description
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power usage for critical PC components in real-time - helping save power and money!Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 - the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times faster and is also backward compatible with USB 2.0 components.With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise Overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
Specifications
Product Specifications
Item # | 933157 |
Manufacturer # | M5A78L-M/USB3 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.5 support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1333 MHz, 1066 MHz |
Chipset Manufacturer | AMD |
Compatible Processors | Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6, FX (Maximum TDP 140 Watt) |
controller type | Serial ATA/300 |
Data Bus Transfer Rate | 5.2 GT/s |
depth | 8.2 in. |
DVI | Yes |
form factor | Micro ATX |
Gigabit Ethernet | Yes |
Graphics Controller | ATI Radeon HD 3000 |
Graphics Controller Manufacturer | ATI |
Graphics Controller Model | Radeon HD 3000 |
Hardware Features | ASUS Q-Fan, C.P.R. (CPU Parameter Recall), AMD Cool 'n' Quiet Technology, ASUS Anti-Surge Protection, ASUS Turbo Key, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Core Unlocker, AMD Hybrid CrossFireX technology support |
HDMI | Yes |
HyperTransport Speed | 2600 MHz |
Internal Interfaces | 1 x serial; 1 x SPDIF out; 1 x parallel; 1 x audio |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Bus Speed | 2600 MHz |
Max Processors Qty | 1 |
Max Size | 16 GB |
Maximum Memory | 16 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 2 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz (O.C.); 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800 (O.C.); DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | M5A78L-M/USB3 |
Network Controller | Realtek RTL8111E |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 1 |
Number of PCI Slots | 2 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 4 |
Onboard Audio Header | Yes |
Onboard LEDs Header | Yes |
Onboard Parallel Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | On-board Video Chipset |
PCI Express Standard | PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | Socket AM3+ |
Processor Supported | Athlon II; Athlon II X2; Athlon II X3; Athlon II X4; Phenom II; Phenom II X2; Phenom II X3; Phenom II X4; Phenom II X6; Sempron |
Processor Technology | Cool'n'Quiet Technology; HyperTransport 3.0 Technology |
PS/2 Port | Yes |
RAID Levels | 0; 1; 1+0; JBOD |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | VIA |
Sound Controller Model | VT1708S |
Storage Interfaces | AMD SB710: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / JBOD |
Supported RAM Integrity Check | Non-ECC, ECC |
Total Number of Onboard USB Ports | 6 |
Total Number of PCI Express Slots | 2 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Weight (Approximate) | 2.53 lb |
$60.09/each
