The HPE 1910 Switch Series, part of the HPE OfficeConnect portfolio, delivers Fast Ethernet connectivity for cost-conscious smaller organizations. The switches are ideal for environments that require granular control and where smart-managed flexibility is a must for easy network configuration and management. The 1910 Switch Series provides advanced, smart-managed, fixed-configuration switches in an easy-to-administer solution. Customizable features include basic layer 2 features like VLANs and link aggregation and advanced features such as Layer 3 static routing and ACLs.
|Certifications & Standards||IEEE 802.3; IEEE 802.3u; IEEE 802.3ab|
|Compatible Rack Unit||1U|
|Expansion Slot Type||SFP|
|Flash Memory||128 MB|
|form factor||Rack-mountable; Desktop|
|Input Voltage||110 V AC; 220 V AC|
|Management||Intelligent Management Center; Limited command-line interface; Web browser; SNMP v2c/3; RMON; VLAN; QoS; DHCP; Telnet|
|Media Type Supported||Twisted Pair|
|Number of SFP Slots||4|
|Number of Total Expansion Slots||4|
|package contents||1910-24G Switch; Power Cord; Self-Adhesive Rubber Pads; Console Cable; Rack-mount Kit; Product CD; Warranty and Safety Information Flyer|
|Port/Expansion Slot Details||24 x Gigabit Ethernet Network; 4 x Gigabit Ethernet Expansion Slot|
|ports||20 10/100/1000 Ethernet (RJ-45); 1 management|
|power source||Power Supply|
|Redundant Power Supply Supported||No|
|Standard Memory||128 MB|
|Total Number of Network Ports||24|
|warranty length||limited lifetime|
|Weight (Approximate)||6.80 lb|

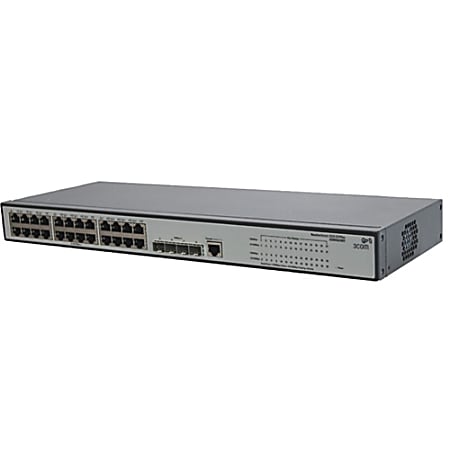

HP 1910-24G Switch
|The HPE 1910 Switch Series, part of the HPE OfficeConnect portfolio, delivers Fast Ethernet connectivity for cost-conscious smaller organizations. The switches are ideal for environments that require granular control and where smart-managed flexibility is a must for easy network configuration and management. The 1910 Switch Series provides advanced, smart-managed, fixed-configuration switches in an easy-to-administer solution. Customizable features include basic layer 2 features like VLANs and link aggregation and advanced features such as Layer 3 static routing and ACLs.|
Simplifies Network Deployment and Management for Small Organizations
- The HPE 1910 Switch Series features easy-to-use, out-of-the box, plug-and-play deployment.
- Series offers a complete portfolio of choices for increased flexibility. It consists of five rack-mountable models with internal power supplies including three non-Power over Ethernet (PoE) models: 8-, 24- and 48-port and two PoE+ models: 8- and 24-port. All models come with two combo uplink ports.
- These smart-managed switches use an intuitive Web management interface to simplify deployment and management while offering you greater granularity of control of key features.
Keeps Your Business up and Running and Protected
- Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection, and supports secure http (https).
- The 1910 Switch Series is covered by the Hewlett Packard Enterprise Limited Lifetime Warranty.
Delivers Improved Performance, While Lowering Total Cost of Ownership (TCO)
- The HPE 1910 Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, IPv6 support, rate limiting, link aggregation, and IGMP.
- The switch series includes PoE+ options to power IP devices without the cost of additional power outlets.
- Advanced silicon technology delivers greater energy-efficiency and the Limited Lifetime Warranty significantly reduce TCO.
- Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port
- Selectable queue configurations: allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
- IGMP snooping: improves network performance through multicast filtering, instead of flooding traffic to all ports
- Fiber uplink: provides greater distance connectivity using Gigabit fiber uplinks
- VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
- Spanning Tree Protocol (STP): supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- BPDU filtering: drops BPDU packets when STP is enabled globally but disabled on a specific port
- Jumbo frame support: supports up to 10 kilobyte frame size to improve the performance oflarge data transfers
- Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
- DHCP relay: simplifies management of DHCP addresses in networks with multiple subnets
24 RJ-45 auto-negotiating 10/100/1000 ports
4 SFP 1000 Mbps ports
Supports a maximum of 24 autosensing 10/100/1000 ports plus 4 1000BASE-X SFP ports, or a combination
|Memory and processor||
ARM @ 333 MHz
128 MB flash
packet buffer size: 512 KB
128 MB RAM
100 Mb Latency: < 5 µs
1000 Mb Latency: < 5 µs
|Throughput||up to 41.7 Mpps|
|Routing/switching capacity||56 Gbps|
IMC - Intelligent Management Center
Limited command-line interface
IEEE 802.3 Ethernet mib
|Input voltage||100-240 VAC|
|Operating temperature range||0 to 45°C|
|Operating humidity range||10 to 90% (noncondensing)|
|Power consumption||31.5 W (maximum)|
|Product dimensions (H x W x D)||17.4 x 6.3 x 1.7 in|
- (1) HP 1910-24G Switch
