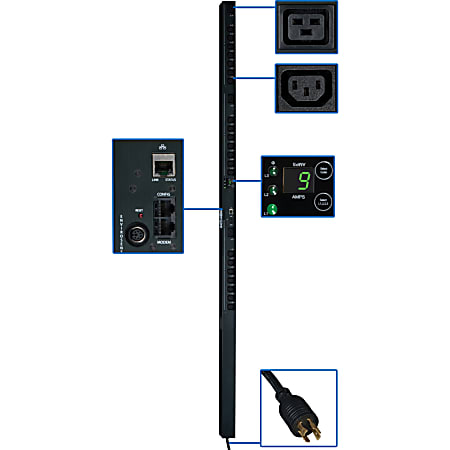

Tripp Lite PDU 3-Phase Switched 208V 5.7kW L15-20P 21 C13; 3 C19 0URM Item # 956503
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
PDU3VSR10L1520 Switched 3 phase 208V Zero U vertical rack PDU supports 5.7kW total output capacity. Includes 10 ft. / 3m input cord with NEMA L15-20P 20A (3P+E) 208V 3 phase input plug and 24 individually controllable outlets arranged in 3 single phase output load banks. Each single-phase output loading bank contains 8 outlets (7 C13, 1 C19). Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase or individual receptacle. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
|brand name||Tripp Lite|
|Input Connectors||Power NEMA L15-20|
|Input Receptacles||NEMA L15-20P|
|Input Voltage||230 V AC|
|Management||Protocols:HTTP; HTTPS; SMTP; SNMPv1; SNMPv2; Telnet; SSH; FTP; DHCP; BOOTP; NTP|
|Output Receptacles||3 x IEC 60320 C19; 21 x IEC 60320 C13|
|Output Voltage||208 V AC|
|Power Rating (Watt)||5700 W|
|warranty length||2-year limited|
|Weight (Approximate)||13.23 lb|
|What's Included||Switched PDU3VSR10L1520 24-Outlets 5.7kW PDU; Cord Retention Brackets; Rack Mounting Brackets; Owner's Manual|
|Show More ▾|
Effective 3-Phase Power Distribution with a Digital Meter and Remote Control of 24 Outlets
Unfiltered electrical pass-through makes the PDU3VSR10L1520 ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures and network closets. It provides reliable 208V power service via 24 outlets in three separately breakered single-phase load banks: 21 C13 outlets (7 per phase) and 3 C19 (1 per phase). This PDU has a rugged all-metal housing and 10 ft. cord with L15-20P 20A input. Load capacity is 5.7kW.
Remote Individual Outlet Control
The PDU3VSR10L1520’s 24 outlets (21 C13 and 3 C19) are individually controllable via network or web browser interface, providing a higher level of network power control. These controllable outlets enable power management tasks, such as load shedding, load ramping, programming power-on and power-off sequences, and rebooting of locked-up network devices, to be performed remotely. Unused outlets can be disabled to prevent the connection of unauthorized equipment loads.
A built-in SNMPWEBCARD enables full remote access for power monitoring, configuration and control via a secure network or web browser interface. Tiered access privileges allow both an administrator and a guest to log in and monitor the PDU via a web browser. It supports notification and logging of all major power events and user-specified alarm thresholds via email or SNMP traps. Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered. When used with Tripp Lite’s optional ENVIROSENSE sensor, the PDU3VSR10L1520 can also remotely monitor temperature/humidity conditions and provide rack access notification for up to 4 SRSWITCH door sensors.
The PDU3VSR10L1520 provides 10/100 Mbps auto-sensing for optimal communication compatibility with a current 10/100 Base-T network. Protocols supported include HTTP, HTTPS, PowerAlert® Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses.
A digital meter with 180° rotation allows IT personnel to monitor in real time (either locally or remotely) the input voltage and load levels per outlet and per phase. The meter helps ensure the PDU is used at maximum capacity with no danger of overload. The meter can also provide the IP address. Each outlet has an LED that illuminates to confirm power on/off status.
The PDU3VSR10L1520 is easy to integrate with a wide range of data center and network applications. It can be configured for 0U (vertical) rack installation with the included mounting brackets, and it also supports toolless button-mount vertical installation in compatible rack enclosures. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack.
2-Year Warranty and Environmentally Responsible Design
The PDU3VSR10L1520 comes backed by a 2-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Reliable power distribution in high-density IT environments
- Built-in SNMPWEBCARD provides remote power monitoring via a secure network or web browser interface
- Digital meter enables monitoring of total PDU load
- Compact, 0U vertical rackmount installation
- Rugged all-metal housing with 24 total outlets (21 C13 and 3 C19)
- 2-year warranty
- 3-Phase Switched PDU
- Cord retention brackets
- Spare installation buttons
- Mounting brackets
- Owner’s manual
