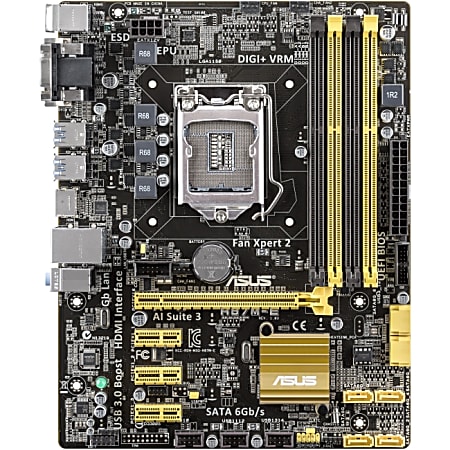

Asus H87M-E Desktop Motherboard - Intel H87 Express Chipset - Socket H3 LGA-1150
1 / 1
$85.09/each
Description
ASUS motherboards guard your PC with 5x protection. ASUS use quality components like DIGI+ VRM digital power design for precise CPU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. ASUS also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ mode has a fresh look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
Specifications
Product Specifications
Item # | 999433 |
Manufacturer # | H87M-E |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC887 |
BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.5 support, UEFI BIOS |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
Buttons & Keys | CMOS Clear |
Chipset Manufacturer | Intel |
Chipset Model | H87 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 7.6 in. |
DVI | Yes |
Environmental Certification | RoHS; WEEE |
form factor | Micro ATX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x SPDIF out - header; 1 x audio - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM; UDIMM |
Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | H87M-E |
Network Controller | Realtek RTL8111G |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 3 |
Number of PCI Express x16 Slots | 1 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 4 |
Onboard Audio Header | Yes |
Onboard LEDs Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
Processor Technology | Turbo Boost Technology 2.0; Smart Response Technology; Quick Sync Video Technology |
PS/2 Port | Yes |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL) |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 4 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
