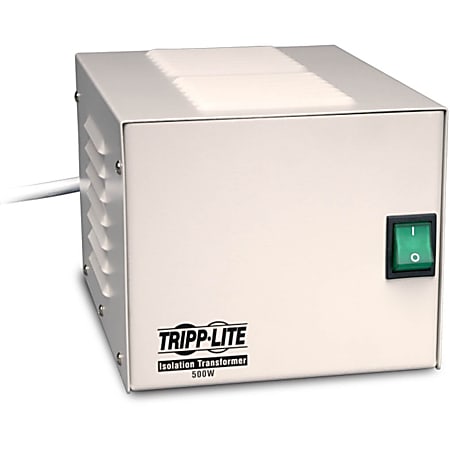

Tripp Lite 500W Isolation Transformer Hospital Medical with Surge 120V 4 Outlet HG TAA GSA Item # 146730
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment.
|Additional Information||Tripp Lite's IS500HG Hospital Grade isolation transformer offers line isolation, continuous noise filtering and enhanced common mode surge suppression.; Internal low-impedence isolation transformer with Faraday shield offers 100% isolation from the input AC line; Full UL2601-1 medical grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.|
|brand name||Tripp Lite|
|Certifications & Standards||UL (UL Series AGIS500YWN) , cUL|
|Frequency Provided||60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Voltage||120 V AC|
|Maximum Line Current||4.20 A|
|Output Voltage||120 V AC|
|package contents||IS500HG Isolation Transformer; Instruction Manual with Warranty Information|
|Plug/Connector Type||NEMA 5-15P|
|Power Cord/Cable Length||10 ft|
|Receptacles||4 x NEMA 5-15R|
|Surge Energy Rating||680 J|
|warranty length||2-year limited|
|Show More ▾|
Compliant Medical Grade UL60601-1 Power Protection
|All isolation transformers must conform to the UL 60601-1 standard when used within patient care areas. Get complete, compliant protection for all sensitive devices in the patient care area and prevent power disruption with Tripp Lite's Isolator IS500HG Power Conditioner. Featuring an internal isolation transformer with a Faraday Shield, the IS500HG completely isolates equipment from line noise that can cause incremental, but devastating, equipment damage. Its 510-joule surge suppression rating protects equipment from surges and spikes caused by utility power disruptions and the operation of nearby equipment on the same circuit. With 100% isolation from the input AC line, the IS500HG eliminates leakage and shock potential down to less than 100 microamps. The IS500HG's 10-ft. power cord allows for flexibility when installing, while the built-in circuit breaker prevents dangerous circuit overloads. 500 watts of capacity allow for use with a variety of sensitive monitoring, diagnostic and computer equipment. The widely spaced hospital-grade output receptacles fit any standard input plug and the power switch offers convenient, one-touch power control. For peace of mind, the IS500HG features a rugged, all-metal housing and comes with a 2-year warranty.|
Approved for Use in Patient Care AreasUL 60601-1 compliance is required for isolation transformers within patient care areas in order to avoid hazardous conditions and provide an optimally safe environment for patients, staff and visitors. By isolating equipment from unpredictable and disruptive utility power, the IS500HG eliminates the need for dedicated circuits or costly upgrades to a healthcare facility's electrical system. The internal isolation transformer with Faraday Shielding provides 100% isolation from the AC power line for equipment plugged into the IS500HG and reduces leakage to less than 100 microamps for full UL 60601-1 compliance. The IS500HG is perfect for protecting sensitive medical equipment that can be affected by EMI/RFI line noise, utility switching transients, background spikes and other unpredictable power conditions.
High-Capacity with Robust FeaturesThe IS500HG's 500-watt capacity can handle a variety of electronic medical devices, while features like a 510-joule surge suppression rating, integrated circuit breaker and powerful line noise filtering provide ultimate protection and safety in even the most hazardous conditions. With continuous transformer filtering and no wearable parts, the IS500HG reduces surges in the worst power environments to harmless levels.
Convenient, User-Friendly OperationA 10-ft. cord allows for flexible installation, while 4 hospital-grade NEMA 5-15R-HG output receptacles let you plug standard equipment into the IS500HG without any adapters or custom power cords. Operation is easy; simply plug the IS500HG into a grounded 3-prong utility outlet, plug your equipment into the IS500HG and turn the power on with simple, one-touch lighted power switch.
2-Year Warranty and Environmentally Responsible Design
The IS500HG is backed by a 2-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.
Tripp Lite IS500HG Medical-Grade Isolation Transformer:
- Complete line isolation, noise filtering and surge suppression for sensitive medical equipment
- Full UL 60601-1 compliance permits use within designated patient-care areas
- Faraday Shield offers 100% isolation from the input AC line
- 500-watt continuous capacity with 4 hospital-grade NEMA 5-15R-HG output receptacles
- 510-joule surge suppression rating
- 10-ft. power cord with hospital-grade input plug allows for installation flexibility
- Circuit breaker provides overload protection
- Convenient, lighted power switch for simple power control
- TAA-compliant for GSA Schedule purchases
- 2-year warranty
