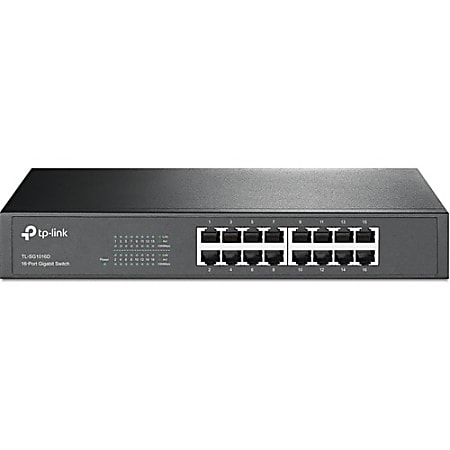

TP-Link® 16-Port Gigabit Ethernet Rackmount Switch, TL-SG1016D Item # 259393
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Improve your network speed
- High-speed Gigabit Ethernet switch features 16 ports with connection speeds up to 1000Mbps. Helps ensure graphics, CGI, CAD or multimedia files and other applications are transferred rapidly across your network.
- Nonblocking switching architecture greatly improves network response times.
- Compatible with most 10, 100 and 1000Mbps Ethernet devices.
- Diagnostic LED indicators on the front panel display power, link/activity and speed information.
- Supports Mac address auto-learning and auto-aging.
- Energy-efficient technology conserves up to 40% power. Automatically powers down ports idle ports and budgets power output for different Ethernet cable lengths.
- Plug-and-play design simplifies the installation process. Auto cable connection on all ports eliminates the need for crossover cables and uplink ports.
- Includes rack-mounting kit for seamless integration of the switch into your existing setup.
|number of ports||16|
|Network Cable Included||Yes|
|dimensions||11 3/5 in. X 7 1/10 in. X 1 7/10 in.|
|Eco Label Standard||RoHS|
|Product Type||Unmanaged Switch|
From the Manufacturer|Powered by
What This Product DoesImprove the speed of your office and workgroup network with the TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch. It has 16 ports offering connection speeds of up to 1,000 Mbps for your network, perfect for ensuring that graphics, CGI, CAD, or multimedia files and other applications with bandwidth-intensive files are transferred across the network almost instantly. Plus, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.
Plug-and-Play SimplicityThe TL-SG1016D requires no configuration and can simply be plugged in and used. Auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cable or uplink ports. Each port can be directly connected to a server, hub, router, or switch using a straight or crossover cable, so there's no confusion about port specificity.
Faster Network Response TimesWith non-blocking switching architecture, the TL-SG1016D greatly improves network response times and significantly speeds up the traffic between subnets by forwarding and filtering packets at full wire speed for maximum throughput.
Go Green With Your EthernetThe TL-SG1016D includes green Ethernet technology and power-saving features to help make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths.
Universal System CompatibilityCompatible with all 10, 100, and 1,000 Mbps Ethernet devices, the TL-SG1016D allows you to protect your existing investments while migrating to a faster network. All ports support full- and half-duplex transfer modes for 10/100 Mbps and full-duplex transfer mode for 1,000 Mbps. The TL-SG1016D also supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex transfer mode.
Diagnostic LED IndicatorsDiagnostic LEDs on the front panel display information for power, link/activity, and speed, enabling you to quickly detect and correct problems on the network.
- Innovative energy-efficient technology saves power up to 40%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 32Gbps Switching Capacity
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Store and forward Switching scheme
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
- Plug and Play design simplifies installation
- 16-Port Gigabit Switch
- Rackmount Kit
- Power Cord
- User Guide
TL-SG1016D DatasheetPDF, 328K, 3 pages
