StarTech.com 1U Fixed 19 Adjustable Depth Universal Server Rack Rails Item # 564300
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Mount 19" Servers or Networking Hardware in any Standard Rack. These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19" server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell, IBM, HP or Apple servers that no longer have rack rails available.This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.Adhering to the EIA-310 standard for 19" rackmount equipment, these mounting rails are universally compatible with 19" server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that's removable for additional customization.To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg).
|Certifications & Standards||UL; CE|
|Maximum Load Capacity||55 lb|
|warranty length||limited lifetime|
|Weight (Approximate)||5.75 lb|
|What's Included||6 x Adjustable Side Rail Component; 3 x Cross Brace; 1 x Cable Manager; Mounting Hardware; Assembly Tool|
|Show More ▾|

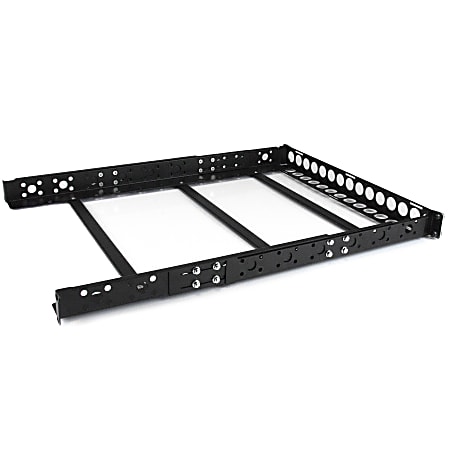

StarTech.com 1U Fixed 19" Adjustable Depth Universal Server Rack Rails
Mount 19" Servers or Networking Hardware in any Standard Rack
The UNIRAILS1U 1U Fixed 19-inch Adjustable Depth Universal Server Rack Rails enable you to fit non-rack mountable equipment (weight up to 25kg/55lbs.) into a standard 19-inch rack.
- Universal design mounts to almost any 19" server, or other equipment
- Weight capacity up to 25kg (55lbs.)
- 2 sturdy cross-bars spanning center of rails for equipment that doesn't quite reach the opposing rail lip
- Adjustable depth from 420mm (16.5 in) - 1054mm (41.5 in)
- Removable rear cable management panel
- Includes assembly hardware, mounting hardware, and assembly tool
