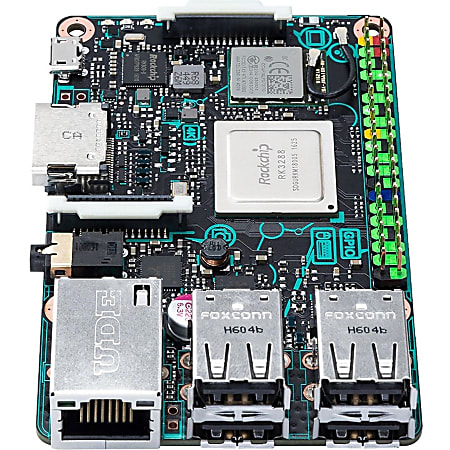

Asus Tinker Board Single Board Computer, ARM Cortex A17, 2GB Memory Item # 6788275
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tinker Board is a Single Board Computer (SBC) in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The Tinker Board offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.
Features & Functionality
With its powerful and modern quad-core ARM-based processor - the Rockchip RK3288 - Tinker Board offers significantly improved performance versus other popular SBC boards. To provide the flexibility needed for different builds and projects, Tinker Board features 2GB of LPDDR3 dual-channel memory. Tinker Board is also equipped with an SD 3.0 interface that offers significantly faster read and write speeds to expandable microSD cards used for the OS, applications and file storage.
Robust GPU Performance & Functionality
Featuring a powerful but energy-efficient design, Tinker Board supports next-generation graphics and GPU computing API's. Powered by an ARM-based Mali™-T764 GPU, Tinker Board's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more. Multimedia enthusiasts will appreciate the fixed-function H.264 and H.265 playback support, including playback of HD and UHD video.
HD Audio Quality
Further improving on key areas found lacking on many SBC boards, Tinker Board is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.
Maker-Friendly, with IoT Connectivity
Tinker Board features standard maker connectivity options, including a 40-pin GPIO interface that allow for interfacing with a range inputs from buttons, switches, sensors, LEDs, and much more. Tinker Board is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.
Tinker Board also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.
Tinker Board also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
Enhanced DIY Design
Careful consideration went into the design and development of the Tinker Board to ensure that it provides a superior user experience for first-time builders or for seasoned hobbyists. Builders will appreciate the color-coded GPIO header, which makes it easy to recognize respective pin headers.
The PCB dimensions and topology of the Tinker Board align with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs.
Tinker Board also includes a heatsink, which helps improve heat dissipation under heavy loading or in hot ambient environments.
|Number of USB Ports||4|
|Processor Speed (Base)||1.8 GHz|
|Product Line||Tinker Board|
|Product Type||Barebones Desktop Computer|
|Memory Card Supported||microSD|
|Product Name||Tinker Board Single Board Computer|
|memory card reader||Yes|
|Bluetooth Standard||Bluetooth 4.0 + EDR|
|Ethernet Technology||Gigabit Ethernet|
|Processor Core||Quad-core (4 Core)|
|Graphics Controller Model||Mali-T764|
|form factor||Ultra Small|
|Number of USB 2.0 Ports||4|
|Graphics Controller Manufacturer||ARM|
