CyberPower Smart App Intelligent LCD OR500LCDRM1U 500VA UPS Item # 994596
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
994596
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Product Details
| Item # | 994596 |
| OfficeMax # | 23585185 |
| Manufacturer # | N73787 |
| Additional Warranty Information | CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge. |
| Alarm | Low Battery; On Battery; Overload |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Battery Characteristics | Maintenance-free |
| Battery Life | 6 Year |
| battery type | Sealed Lead Acid (SLA) |
| brand name | CyberPower |
| Bypass Switch | Not Provided |
| Certifications & Standards | FCC Class B certified; CUL; UL 1778 |
| Circuit Breaker | Yes |
| color | black |
| cord length | 10 ft |
| Dataline Protection | RJ-45; RJ-11 |
| depth | 9.3 in. |
| Emergency Power OFF | No |
| ENERGY STAR | Yes |
| form factor | Rack-mountable |
| Frequency Provided | 60 Hz |
| height | 1.7 in. |
| Input Connectors | 1 x power NEMA 5-15 |
| Input Voltage | 110 V AC |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| manufacturer | CyberPower Systems, Inc |
| Maximum Battery Recharge Time | 8 Hour |
| model | OR500LCDRM1U |
| Number of Batteries | 2 |
| Output Voltage | 120 V AC |
| Plug/Connector Type | NEMA 5-15P |
| ports | 1 serial; 1 USB |
| Product Line | Intelligent LCD |
| protection type | Dataline Surge; Black Out; AC Surge; EMI / RFI; Overload; Sag |
| Rack Height | 1U |
| Receptacles | 2 x NEMA 5-15R; 4 x NEMA 5-15R |
| software included | PowerPanel Software |
| Status Indicators | On Unit:Power On; Wiring Fault; LCD Panel:Input Voltage; Output Voltage; Battery Capacity; Load Level; Runtime; On Battery; Overload; Silent Mode |
| Surge Energy Rating | 1030 J |
| Switching Time | 4 ms |
| warranty length | 3-year limited |
| Waveform Type | Simulated Sine Wave |
| Weight (Approximate) | 18 lb |
| What's Included | Smart App Intelligent LCD OR500LCDRM1U 500VA UPS; Rack Ears (2); User Manual; Power Management Software; warranty Card; Serial Cable; Phone Cable; USB Cable |
| width | 17 in. |
| Show More ▾ |
Customer Reviews
Product Q & A
Open Popup Window
.jpg)

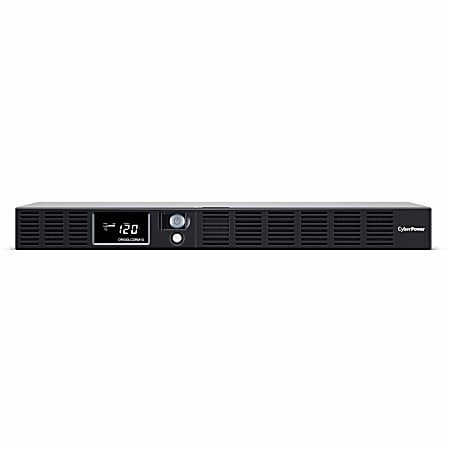

![slide {0} of {1},zoom in, OR500LCDRM1U Front View]()
![slide {0} of {1},zoom in, OR500LCDRM1U Back View]()
![TYPICAL APPLICATIONS]()
![CONNECTED EQUIPMENT GUARANTEE]()
![CYBERPOWER PRODUCT WARRANTY]()
![POWER MANAGEMENT SOFTWARE]()
OR500LCDRM1U Essential Battery Backup & Surge Protection
For corporate and network servers, telecom installations and VoIP systems:
- 6 total outlets including 2 surge only and 4 battery backup + surge
- Battery backup keeps devices running during brief outages and provides enough runtime power for safe shut down
- Automatic Voltage Regulation corrects minor fluctuations without switching to battery power
- Multifunction LCD panel displays system status and battery information
- Remote management ready with optional RMCARD
- ENERGY STAR Certified
Image Hot Spots
Media
.jpg)
.jpg)
WHY DO YOU NEED IT?
Even
brief power outages can result in data loss or hardware damage. This UPS
system provides enough emergency backup to keep your equipment running during
momentary outages, and enough runtime power to close files and properly shut
down IT or networking equipment during extended outages. It also safeguards
connected equipment from storm-related power surges, activity on the power
grid, or high-powered equipment turning on and off. Automatic Voltage
Regulation (AVR) stabilizes incoming voltage, preventing chronic problems
caused by minor but frequent power fluctuations.
.png)
TYPICAL APPLICATIONS
Provides backup power, surge protection and advanced power management capabilities for corporate and departmental applications, including:
- Corporate servers
- Department servers
- Telecom equipment
- VoIP phone systems
- Network devices
- Storage appliances
.png)
.png)
.png)
CONNECTED EQUIPMENT GUARANTEE
This product comes with a with a $300,000 connected equipment guarantee. See user manual for details.CYBERPOWER PRODUCT WARRANTY
CyberPower will repair or replace a defective UPS system within three years of purchase. See user manual for details.POWER MANAGEMENT SOFTWARE
Use PowerPanel® Business Edition software to manage runtime, track power events and more.CyberPower
