Tripp Lite’s SmartRack 18U Mid-Depth Rack Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated door and side panels to promote efficient airflow, adjustable vertical mounting rails and more. And as part of the SmartRack family, the SR18UB is compatible with Tripp Lite’s extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. The SR18UB ships fully assembled for quick installation and comes with a 5-year warranty.The SR18UB is compatible with all standard 19-inch rack equipment and features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches, ideal for standard server installation. Adjustment is quick and convenient: simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 453 kgs (1000 lbs) of equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.With a locking, reversible front/rear doors and locking, removable side panels, the SR18UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance.The top and bottom panels of the SR18UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans (Tripp Lite SRFANWM). The top and bottom panels are also provided with ports for cable routing.To simplify deployment, the SR18UB comes with an accessory caster kit consisting of 4 casters and all required installation hardware. With casters installed, the SR18UB can easily be maneuvered into to desired location, and then secured in place by adjusting the unit’s levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.
|brand name||Tripp Lite|
|Dynamic/Rolling Weight Capacity||1000 lb|
|Rack Width||19 in.|
|Static/Stationary Weight Capacity||1000 lb|
|warranty length||5-year limited|
|What's Included||SmartRack 18U Extra Depth Rack Enclosure Cabinet; 42 x M6 Screws; 42 x M6 Cage Nuts; 42 x M6 washers; 4 x Casters; 4 x Levelers; 2 x Keys; Owner's Manual|
|Show More ▾|

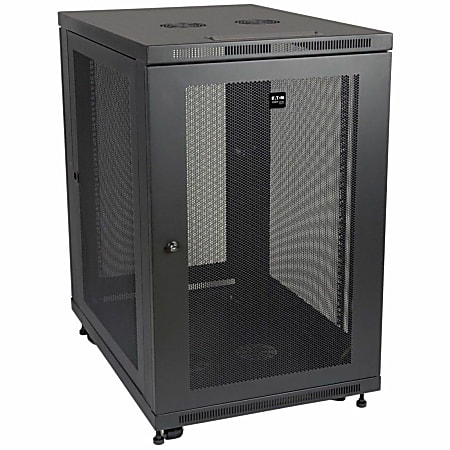

Tripp Lite's 18U Mid-Depth Rack Enclosure Cabinet
The SR18UB simplifies equipment installation with numbered rack spaces for easy reference. Front and rear pairs of vertical rails with square mounting holes are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches.
Vented Top and Bottom Panels with Cable Cutouts
The top and bottom panels of the SR18UB come furnished with vents designed to remove warm air and draw in cool air by convection. The SR18UB's vents also support active cooling with the optional installation of standard user-supplied case fans like Tripp Lite's SRFANWM (sold separately). The top and bottom panels are additionally equipped with cutout ports for cable routing.
The SR18UB is a safe, secure installation solution that meets all requirements toward PCI DSS (Payment Card Industry Data Security Standard) compliance. A locking, reversible front door and locking, removable side panels restrict unwanted access to installed equipment while still allowing authorized personnel to perform inspections, maintenance and equipment replacement.
To simplify deployment, the SR18UB ships fully assembled along with a preinstalled accessory caster kit and all required installation hardware. With casters installed, the SR18UB can be taken out of the box and easily maneuvered to its desired location, followed by securing the rack in place by adjusting the unit’s levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances. The SR18UB comes with: (42) M6 screws; (42) M6 cage nuts; (42) M6 washers; (4) Casters; (4) Levelers; (2) keys and an Owner's Manual.
- Premium SmartRack 18U mid-depth enclosure cabinet
- Adjustable mounting depths from 3" to 32.5"
- Locking, reversible front door and locking, removable side panels
- PCI DSS-compliant
- Vented panels with cable access openings
- Heavy-duty steel construction supports up to 1000 lbs of equipment
- Ships fully assembled
- Included caster kit for easy relocation
- 5-year warranty
- Compliant with RoHS and UL 60950 specifications
The SR18UB's heavy-duty, cold-rolled steel construction securely stores up to 1000 lbs of standard 19-inch rackmount equipment. For peace of mind, the SR18UB comes backed by a 5-year warranty.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
