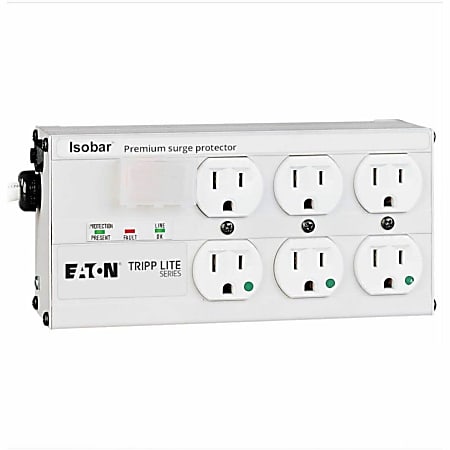

Tripp Lite Isobar® Ultra 6-Outlet Diagnostic Surge Suppressor, 15' Cord, Gray Item # 145735
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Protects sensitive electronics from damaging surges and line noise
- Offers 3330 joules of rated protection against heavy normal-mode surge conditions.
- High-quality components with an all-metal case and unique noise-filtration system.
- Diagnostic LEDs confirm your power availability, line fault, and protection status.
- 6 hospital-grade outlets prevent system crashes, reboots and performance problems.
- Removes EMI/RFI interference, even noise from other pieces of connected equipment.
- Comes with a 15' AC line cord, keyhole mounting tab and 4 child-safety covers.
|amp rating||15 amps|
|brand name||Tripp Lite|
|built-in telephone jack||no|
|Certifications & Standards||UL1449 (let through rating 330V); UL1363; cUL|
|coaxial cable line protection||no|
|Compatibility||Ideal for premium protection with hospital-grade receptacles and plug where durability and reliability is required. Not for use where NEC requires hospital-grade receptacles|
|cord length||15 feet|
|dimensions||2.5"H x 7"W x 3.5"D|
|EMI/RFI noise reduction||yes|
|fax/phone line protection||no|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power NEMA 5-15P (hospital grade)|
|Input Voltage||120 V AC|
|joule rating||3300 joules|
|Maximum Line Current||15 A|
|Maximum Surge Current||48 kA|
|mounting hardware included||yes|
|number of outlets||6|
|Output Voltage||120 V AC|
|Plug/Connector Type||NEMA 5-15P|
|Power Cord/Cable Length||15 ft|
|protection status indication||yes|
|Receptacles||6 x NEMA 5-15R|
|Status Indicators||Line OK; Line Fault; Protection Present|
|Surge Energy Rating||3330 J|
|warranty length||limited lifetime|
|What's Included||Isobar 6 Outlets 120V Surge Suppressor; ISOBAR6ULTRAHG Surge Suppressor; Instruction Manual with Warranty Information|
|Show More ▾|
All Metal, 6 Outlet, 15 ft. Cord, Hospital Grade Surge Suppression
The ISOBAR6ULTRAHG offers powerful surge protection for hospital administrative areas and other locations in medical facilities outside of patient care areas. It provides 6 hospital-grade 5-15R outlets arranged in 3 isolated filter banks. Outlets are widely spaced to accommodate up to 3 large transformers without blocking remaining outlets. Diagnostic LEDs confirm power availability, line fault, and surge protection status at a glance. An extra-long, 15-ft. cord with hospital-grade 5-15P plug enables connection to a distant wall outlet. Keyhole slots on the back of the unit enable the ISOBAR6ULTRAHG to be mounted on a wall.
More joules mean more protection! The ISOBAR6ULTRAHG’s 3330-joule surge suppression rating, Isobar surge protection technology and rugged, all-metal housing shield connected equipment from even the strongest surges. EMI/RFI line noise filtering helps components perform at their peak. Line noise filtering eliminates performance problems that can be caused by radio transmissions, fluorescent lighting, and appliances, while promoting longer component life spans.
Devices connected to the same surge protector can interfere with one another’s performance—for instance, when office equipment or medical appliances degrade monitor picture and sound quality. The Isobar is the only surge protector with internal barriers (called isolated filter banks) that prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Isolated filter banks ensure that peripheral devices and appliances don’t degrade the performance of computers and sensitive A/V components.
The ISOBAR6ULTRAHG features 3 diagnostic LEDs (LINE OK, GROUND OK, and SURGE OK) that show power and protection status at a glance. An illuminated master switch provides one-touch power control over all connected components.
