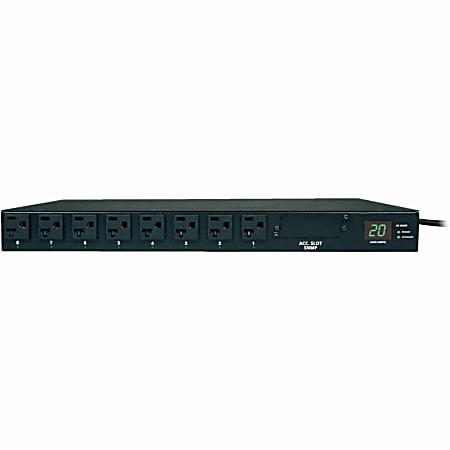

Tripp Lite Single Phase Auto Transfer Switch, Metered PDU Item # 149485
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
|brand name||Tripp Lite|
|Certifications & Standards||60950; Class A; RoHS Complaint|
|Frequency Provided||50/60 Hz|
|Input Connectors||2 x power NEMA L5-20|
|Input Receptacles||2 x NEMA L5-20P|
|Input Voltage||120 V AC|
|Management||Optional Automatic Transfer Switch (ATS) function enables setup for hot-swappable UPS maintenance bypass; Dual UPS protection or dual AC input redundancy for critical single-corded network hardware; Slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP|
|Number of Cord/Cable||2|
|Output Receptacles||16 x NEMA 5-15/20R|
|Output Voltage||120 V AC|
|Power Rating (VA)||2400 VA|
|warranty length||2-year limited|
|Weight (Approximate)||12.20 lb|
|What's Included||PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet; PDU with attached L5-20P input power cord; Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input; Two NEMA L5-20R to NEMA 5-20P plug adapters; User manual with warranty information|
|Show More ▾|
Do you need an efficient, cost-effective way to distribute, monitor and manage power in an IT or industrial environment? Tripp Lite's PDUMH20AT Metered Power Distribution Unit with ATS is the solution you seek! It provides sixteen outlets plus a digital meter that displays continuous power consumption, enabling IT personnel to monitor the PDU's load on site. Optional integrated automatic transfer switching capability enables dual AC input redundancy for critical network hardware, hot-swappable UPS maintenance bypass or dual UPS protection. The PDUMH20AT is also equipped with a built-in SNMPWEBCARD slot, enabling it to be permanently upgraded to a switched PDU. The PDUMH20AT features an all-metal housing and a switchless design to prevent accidental shutoff. It is suitable for 1U rackmount installation as well as wall-mount, workbench, under-counter and similar installations.
The PDUMH20AT is designed for reliable distribution of AC power to supported equipment in IT, industrial and similar applications. It features a rugged all-metal case, high-quality outlets, a 20A circuit breaker and a switchless design to prevent accidental shutoff. Auto-Transfer Switching function adds hot-swap and maintenance bypass ability to standard UPS configurations.
Reliable IT Power Distribution
Unfiltered electrical pass-through makes the PDUMH20AT ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. It provides sixteen 5-15/20R outlets and dual 12-ft. cords (one attached, one detachable) with locking L5-20P plugs to prevent accidental disconnection. Two included L5-20R to 5-20P plug adapters enable the PDU to be connected to standard 5-15/20R outlets.
The PDUMH20AT features optional integrated automatic transfer switching (ATS) capability to provide a redundant power option for networking and server applications with non-redundant internal power supplies. In ATS mode, the attached power cord delivers primary input power and the included detachable power cord provides secondary input power. If primary power becomes unstable or fails, the PDU automatically switches to the secondary power source. Additionally, ATS enables fault-tolerant hot-swappable UPS protection when used with a single UPS system, and fully redundant UPS protection when each power cord is connected to a separate UPS system. Front-panel input LEDs indicate primary or secondary power availability.
Digital Current Meter
Assure proper load balance with the PDUMH20AT's easy to read, two-character digital LED meter that displays the total connected equipment load. This meter enables IT personnel to monitor the total load on the PDU in real time, allowing more equipment to be safely connected with no danger of overloading the PDU or power supply circuits. Plus, the outlets are factory programmed for sequential turn-on when the PDU is first powered on to prevent inrush-related equipment interaction on start-up and safeguard against costly overloads.
A built-in SNMPWEBCARD slot enables the PDUMH20AT to be permanently upgraded to a switched PDU with full network power monitoring and individual outlet control capability. With an SNMPWEBCARD installed, the PDUMH20AT can also be custom programmed for power-on and power-off sequences with user-specified time delays in response to loss and restoration of primary input power.
The PDUMH20AT's switchless design prevents accidental shutoff and safeguards against downtime due to human error. The L5-20P plug locks into place to maintain a secure connection.
The PDUMH20AT is easy to integrate with a wide range of data center and network applications. It is suitable for 1U installation in standard 19-inch rack enclosures as well as wall-mount, workbench, under-counter and similar installations. Two included L5-20R to 5-20P plug adapters enable the PDU to be connected to standard 5-15/20R outlets.
