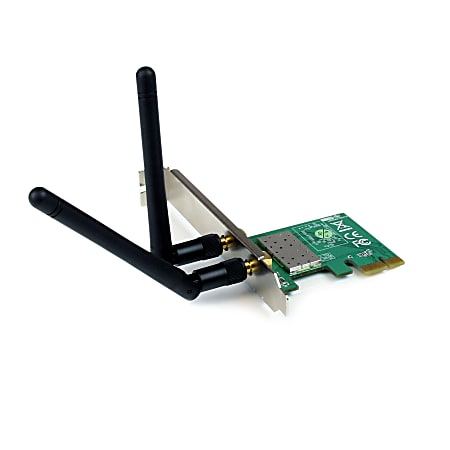

StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card - 2T2R 2.2 dBi Item # 166501
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
166501
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Add high speed Wireless-N connectivity to a desktop PC through PCI Express. The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.
Product Details
| Item # | 166501 |
| Manufacturer # | PZ1482 |
| Antenna Connector | RP-SMA Connector |
| Antenna Gain | 2 dBi |
| brand name | StarTech |
| Certifications & Standards | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n; FCC; CE |
| depth | 4.7 in. |
| Device Supported | Desktop Computer |
| form factor | Internal |
| height | 3 in. |
| Host Interface | PCI Express |
| ISM Band | Yes |
| ISM Maximum Frequency | 2.48 GHz |
| ISM Minimum Frequency | 2.40 GHz |
| length | 3 in. |
| manufacturer | StarTech.com |
| Number of Antennas | 2 |
| Platform Supported | PC |
| quantity | 1 |
| System Requirements | Windows XP (64-bit); Windows Server 2003 (32/64-bit); Windows Server 2008 R2; Windows Vista (32/64-bit); Windows 7 (32/64-bit); Windows 8 (32/64-bit); Windows 10; Linux 2.6.32 or later |
| UNII Band | No |
| warranty length | 2-year limited |
| Weight (Approximate) | 1.30 oz |
| What's Included | PCI Express Wireless Networking Card; 2 x Antenna; 1 x Low Profile Bracket; 1 x Driver CD; 1 x Instruction Manual |
| width | 0.7 in. |
| Wireless LAN Standard | IEEE 802.11n |
| Wireless Security | WEP 64-128-bit; WPA; WPA2; WPS; TKIP; AES |
| Wireless Transmission Speed | 300 Mbit/s |
| Show More ▾ |
Customer Reviews
StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card - 2T2R 2.2 dBi is rated
out of
5 by
1.
Rated 5 out of
5
by
Giaco from
Painless install, works fine
I installed this a couple of months ago into a new Windows 10 home built. I expected to have to install drivers or something, but a few seconds after boot-up, the system recognized it, and it just started working. No problems yet.
Date published: 2018-03-23
Open Popup Window
.jpg)
![slide {0} of {1},zoom in, Add high speed Wireless-N connectivity to a desktop PC through PCI Express]()
![slide {0} of {1},zoom in, Add high speed Wireless-N connectivity to a desktop PC through PCI Express]()
![slide {0} of {1},zoom in, Add high speed Wireless-N connectivity to a desktop PC through PCI Express]()
![slide {0} of {1},zoom in, Add high speed Wireless-N connectivity to a desktop PC through PCI Express]()
![slide {0} of {1},zoom in, Add high speed Wireless-N connectivity to a desktop PC through PCI Express]()
![slide {0} of {1},zoom in, Add high speed Wireless-N connectivity to a desktop PC through PCI Express]()
![Ensures a fast, reliable wireless-N network connection]()
![Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience]()
![Includes both a full and low profile/half-height bracket for installation into any sized desktop computer]()
Add high speed Wireless-N connectivity to a desktop PC through PCI Express
- 2 Transmitter/2 Receiver (2x2:2) antenna configuration
- Compliant with IEEE 802.11n standard, with support for up to 300Mbps of wireless data bandwidth
- Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks
- Supported security features: WEP (64-128-bit), WPA, WPA2, WPS
- Support for WMM/WMM-PS Quality of Service (QoS)
- Infrastructure and Ad-Hoc network modes support
- Dual detachable 2dBi antennas
- Includes Low Profile/Half-Height installation bracket
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Ensures a fast, reliable wireless-N network connection
The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range..jpg)
Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience
This WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS..jpg)
Includes both a full and low profile/half-height bracket for installation into any sized desktop computer
This easy-to-install PCI Express 2.0 card makes for an excellent wireless upgrade or first-time setup option.Applications
- Add wireless-N networking capabilities to a PCI Express-enabled desktop PC
- Connect a remote workstation PC to a wireless-N network, in environments where running network cables is not feasible
