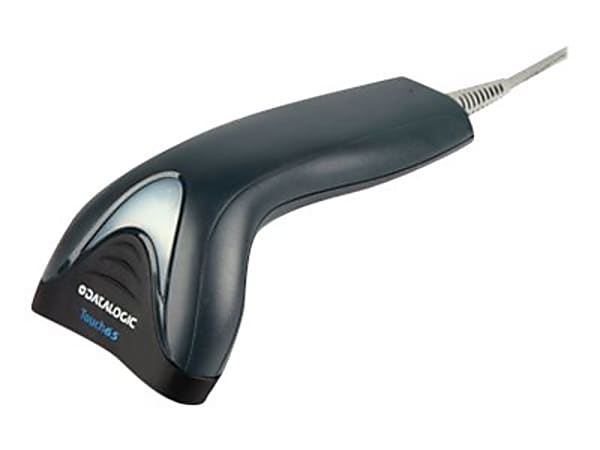

Datalogic General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit Item # 378169
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
378169
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m/5.0 feet drop resistance, which is typically included in a higher range of products.The Touch TD1100 65/90 Pro readers provide a complete all-in-one multi-interface solution, including RS-232, USB and keyboard wedge and wand emulation, while the Touch 65/90 Lite readers provide USB or RS-232/keyboard wedge interfaces. A 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items.
Product Details
| Item # | 378169 |
| Manufacturer # | 3418221 |
| Barcode Dimension | 1D |
| Barcode Symbology Supported | 1D / Linear Codes:Autodiscriminates all standard 1D codes including GS1 DataBar linear codes; Stacked Codes:GS1 DataBar Expanded Stacked; GS1 Databar Stacked; GS1 DataBar Stacked Omnidirectional |
| brand name | Datalogic |
| color | black |
| Connectivity Technology | Cable |
| Decode Capability | Code 93, Industrial 2 of 5, Code 39, ISBT 128, IATA, GS1 DataBar, BC 412, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Code 11, Interleaved 2 of 5, Codablock F, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Standard 2 of 5, GS1 DataBar Stacked |
| depth | 3.3 in. |
| Depth of Field | 0 mil - 3.20"@7.50 mil - Code 39; 0 mil - 4.70"@10 mil - Code 39; 0 mil - 6"@13 mil - EAN13 |
| Drop Specification | 5 ft to concrete |
| Electric Current Required | 20 mA (standby), 100 mA (typical) |
| height | 6.3 in. |
| Host Interface | USB |
| Image Sensor Type | Imager; Linear |
| Light Source Wave Length | 640 nm |
| manufacturer | Datalogic S.p.A |
| Maximum Scan Resolution | 4 mil |
| Minimum Bar Width | 4 mil |
| model | 65 Lite |
| OK Notification | Beeper, LED indicator |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Product Line | Touch |
| Product Series | TD1100 |
| Scan Field Width | 5.91 in. |
| Scan Pattern | Omni-directional |
| Skew (Degrees) | 70 |
| TTL Decoding | Decoded |
| Weight (Approximate) | 4.60 oz |
| width | 2.3 in. |
| Show More ▾ |
