Tripp Lite USB-C Docking Station w/ USB-A , HDMI, VGA, mDP, Gbe, Memory Cards 3.5mm, USB C PD Charging 4K @ 30Hz Item # 950152
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

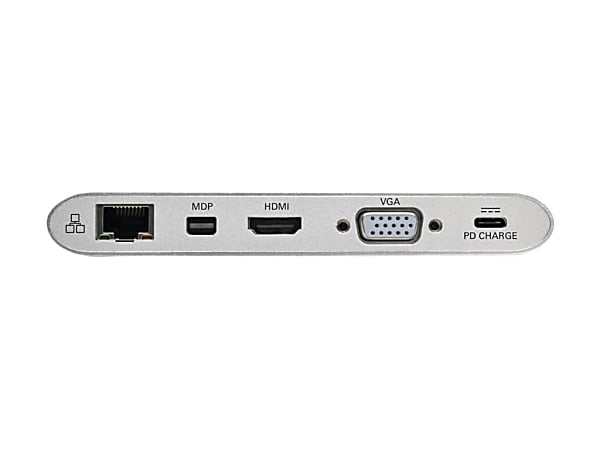

The U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station turns your computer, laptop or tablet into a versatile workstation. By connecting its built-in cable to your device's USB-C or Thunderbolt 3 port, you'll be able to add an external display, access Gigabit Ethernet networks, transfer data, display video and more.Mini DisplayPort, VGA and HDMI ports allow you to connect an external display (one display at a time). With the addition of adapters (sold separately), you can also add a DVI or DisplayPort display to the U442-DOCK1. The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports HD video resolutions up to 1920 x 1200, including 1080p, at 60 Hz.Connect a Gigabit Ethernet cable (sold separately) to the RJ45 port to access true 10/100/1000 Mpbs network speeds. Three USB-A hub ports are convenient for connecting peripherals to your device. Each supports data transfer rates up to 5 Gbps. A dedicated BC 1.2-compliant USB port provides up to 1.5A of fast-charging power.The U442-DOCK1 also features a USB-C Power Delivery (PD) port that supports power input up to 20V 3A (60W). It connects to a USB-C wall charger to power the device it's plugged into, as well as peripherals plugged into the USB-A ports.Micro SD and SD/MMC memory card slots also provide access to external memory. A 3.5 mm audio jack is convenient for connecting speakers, headphones or a microphone to your connected device.
|brand name||Tripp Lite|
|Device Supported||Notebook/Tablet PC|
|Host Interface||USB Type C|
|ports||1 Ethernet (RJ-45); 1 HDMI; 1 Mini DisplayPort; 3 USB 3.0; 1 VGA 15-pin D-sub|
|Total Number of USB Ports||3|
|warranty length||3-year limited|
|What's Included||U442-DOCK1 Docking Station; Owner's Manual|
Converts Your Computer or Tablet Into a Fully Functional Workstation
U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station expands the capabilities of your
computer, laptop or tablet by adding Gigabit Ethernet access, an external
display and up to three USB peripherals. It’s recommended for accessing a local
area network (LAN), watching videos, transferring data or connecting a printer
or scanner to your device.
The U442-DOCK1’s Mini DisplayPort™, VGA and HDMI ports allow you to connect one external display at a time. With the addition of adapters (sold separately), you can also add a DVI or DisplayPort™ display. The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports HD video resolutions up to 1920 x 1200, including 1080p, at 60 Hz.
Supports True Gigabit Ethernet Speeds
Connect a Gigabit Ethernet cable (sold separately) to the RJ45 port to access true 10/100/1000 Mbps network speeds. The U442-DOCK1 complies with IEEE 802.3az standards and supports full- and half-duplex operations, IPv4/IPv6 pack COE to reduce CPU loading, and Wake-on-LAN. It also automatically resumes operation from hibernation and suspend modes.
The U442-DOCK1’s USB 3.0 ports achieve data transfer speeds up to 5 Gbps without compromising signal quality. They’re backward compatible with previous USB generations, and one port is compliant with USB Battery Charging Specification 1.2 (commonly referred to as BC 1.2) to provide up to 1.5A of fast-charging power.
Features a USB-C Power Delivery Port for Charging Portable Devices
The USB-C Power Delivery (PD) port supports power input up to 20V 3A (60W). It connects to a USB-C wall charger to power both the device it’s plugged into and the peripherals plugged into its USB-A ports.
With no software, drivers or external power required, this docking station is ready for action right out of the box. Simply plug its built-in USB-C cable into your laptop or tablet, then use its 3.5 mm audio jack to connect speakers, headphones or a microphone to your connected device. Micro SD and SD/MMC card slots provide extra external memory access.
Comes Backed by a Three-Year Warranty
The U442-DOCK1 comes with a three-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Connects a Mini DisplayPort, VGA or HDMI external display (one display at a time)
- Mini DisplayPort and HDMI ports support video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- VGA port supports video resolutions up to 1920 x 1200, including 1080p, @ 60 Hz
- Supports true 10/100/1000 Mbps Gigabit Ethernet speeds
- USB hub ports support data transfer rates up to 5 Gbps
- USB-C power delivery port supports power input up to 20V 3A
- Supports connection of speakers, headphones or microphone
- Micro SD and SD/MMC card slots provide external memory access
- Plug-and-play—no software, drivers or external power sources needed
- Three-year warranty
- U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station
- Owner’s Manual
