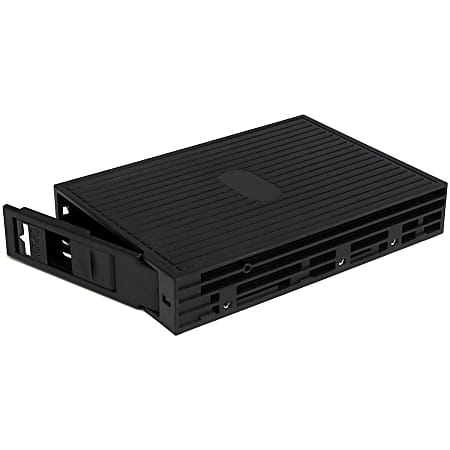

StarTech.com 2.5in SATA/SAS SSD/HDD to 3.5in SATA Hard Drive Converter Item # 117792
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
117792
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive. The 25SATSAS35 2.5-inch SATA/SAS to 3.5-inch SATA Hard Drive Converter converts a 2.5-inch SATA or SAS hard drive (HDD) or solid state drive (SSD) into a 3.5-inch form factor SATA Hard Drive.The converter provides a versatile solution for 2.5-inch drive installations, enabling you to install a 2.5-inch SATA/SAS drive in a 3.5-inch bay, drive drawer caddy/tray, or into a 3.5-inch drive enclosure.To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.Suitable for drives with a height of up to 15mm, virtually any 2.5-inch SATA or SAS hard drive can be made to look and function like a 3.5-inch hard drive - complete with standard mounting points along the sides and bottom (including 3 points along the sides for compatibility with some Dell systems).The Drive Converter features a trayless design for simple drive installation and removal, and is constructed of durable, yet lightweight plastics, with ventilation openings to aid air flow and help keep hard drives running cooler.
Product Details
| Item # | 117792 |
| Manufacturer # | 11384079 |
| brand name | StarTech |
| Certifications & Standards | FCC; CE |
| color | black |
| Compatible Bay | 1 x internal 3.5" |
| Compatible Drive Bay Width | 3.5 in. |
| Cooling Fan | No |
| depth | 5.7 in. |
| Drive Interface | 6Gb/s SAS; Serial ATA/600 |
| form factor | Internal |
| height | 1 in. |
| manufacturer | StarTech.com |
| material | Plastic |
| Number of 2.5" Bays | 1 |
| Number of Total Expansion Bays | 1 |
| quantity | 1 |
| Supported Form Factor | 3.5" to 2.5" |
| warranty length | 2-year limited |
| Weight (Approximate) | 4.76 oz |
| width | 4 in. |
| Show More ▾ |
Customer Reviews
StarTech.com 2.5in SATA/SAS SSD/HDD to 3.5in SATA Hard Drive Converter is rated
out of
5 by
8.
Rated 1 out of
5
by
BDBaer from
Did not work for me
First: could not just slide in the 2.5 drive into the converter, (about 1/2 an inch stuck out the back) in the end I just removed the 8 or 9 screws placed the drive and reassembled the converter.
Second: the mounting holes did match the pins on my Dell’s mount.
Date published: 2018-06-28
Rated 3 out of
5
by
Nivek from
Works Well
This is a decent product. I used it to put a 2.5 SSD in my tower workstation. It fit and worked well.
Date published: 2017-11-22
Rated 3 out of
5
by
Nick71 from
Solid performance, not so solid build.
OK, so I tried to use it internally, but the mount holes don't line up at all (can't move it forward or back in the Lenovo or CoolerMaster case internal positions I tried since they use plastic spacers that fit into the drive holes, which of course, don't line up.
My son's PC is built inside an older case that has a 3.5" floppy slot. This chassis works fine in that slot. It was then that I noticed that the drive holes are spaced just fine for a 3.5" HDD, but slid backwards---aka, if the end of the drive was flush with the case--and why would anyone want their internal drive sticking OUT?
OK, that being said... I popped an SSD in, and then slid the chassis into a Startech trayless 3.5" removable that I have mounted on the front of my tower, so a drive in a drive tray, in a drive tray. Fit just fine (screw holes are irrelevant this way), and works like a drive should, no performance impact on the SSD within, and invisible to the OS since it's just passing SATA through.
As for the build... I like the "open" button and the sliding lock. The plastic is fine for something that doesn't get swapped too often, but doesn't feel that solid. Older trayless drive slots that I use (all Startech BTW...) are solid, and have some metal in the door/latch/housing to provide extra strength/durability. I just don't se that with this adapter. I would buy this to use SSDs in my tower, as removables. But would not recommend if it is going to be in a work environment with people that are hard on the hardware.
So perfect score on actual performance, but not so much on physical build.
I received this product in exchange for an unbiased review.
Date published: 2017-10-16
Rated 2 out of
5
by
NickD_CA28 from
Cheap but works
The hard drive adaptor has been working well for me but physically very cheap and with limited mounting options, could be better.
The hard drive adaptor comes in a box just barely bigger than 3.5 inch hard drive. It is made of all black plastic and raddles like there are loose parts inside when either empty or with a drive installed. When you put a drive in it, the case makes a very scary 'crack' sound. I still can't get used to the terrible sound of the door closing as it sounds like I just broke the hard drive. The open latch is clearly labeled, but at a glance the sliding lock also looks like a latch and breaks off very easy if you try and pull it. There is a blue LED light on the front that lights when it has power. The light doesn't change or flash for drive activity. The adaptor is the same size as a regular 3.5" hard drive however the screw holes are NOT in the same position so the adaptor cannot be installed where other hard drives can. Screws are included with the adaptor.
The adaptor works well once the drive is in. The adapter works in SATA docking stations and connected directly to my motherboard.
The hard drive adapter works as needed, but is very cheaply made with it raddling and cracking sounds and can't be mounted where 3.5" drive can be. I received this product in exchange for an unbiased review.
Date published: 2017-10-15
Open Popup Window
.jpg)
![slide {0} of {1},zoom in, Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive]()
![slide {0} of {1},zoom in, Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive]()
![slide {0} of {1},zoom in, Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive]()
![slide {0} of {1},zoom in, Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive]()
![slide {0} of {1},zoom in, Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive]()
![A trayless design and support for 15mm drives enables quick and easy install/removal of drives, including newer high capacity drives]()
![Uses standard 3.5" form factor mounting points, along with 3 mounting points on the sides]()
![Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller]()
Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive
- Trayless design: hard drives are not mounted into separate trays/enclosures
- Supports 2.5" form factor hard drives (HDD) and solid state drives (SSD) up to 15mm in height
- Power indicator LED
- Lightweight plastic construction with air vents
- Plug and Play and hot swap compatible
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Support for SAS revision I/II (3.0/6.0 Gbps)
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
A trayless design and support for 15mm drives enables quick and easy install/removal of drives, including newer high capacity drives
The Drive Converter features a trayless design for simple drive installation and removal, and is constructed of durable, yet lightweight plastics, with ventilation openings to aid air flow and help keep hard drives running cooler..jpg)
Uses standard 3.5" form factor mounting points, along with 3 mounting points on the sides
The converter provides a versatile solution for 2.5-inch drive installations, enabling you to install a 2.5-inch SATA/SAS drive in a 3.5-inch bay, drive drawer caddy/tray, or into a 3.5-inch drive enclosure..jpg)
Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.
Applications
- Use available 2.5" hard drives in place of a 3.5" hard drive
- Install a 2.5" hard drive into a 3.5" hard drive enclosure or backplane
- Turn unused 2.5" hard drives into additional storage in a desktop computer
- Use large capacity 12.5mm SATA drives as a front bay removable drive
