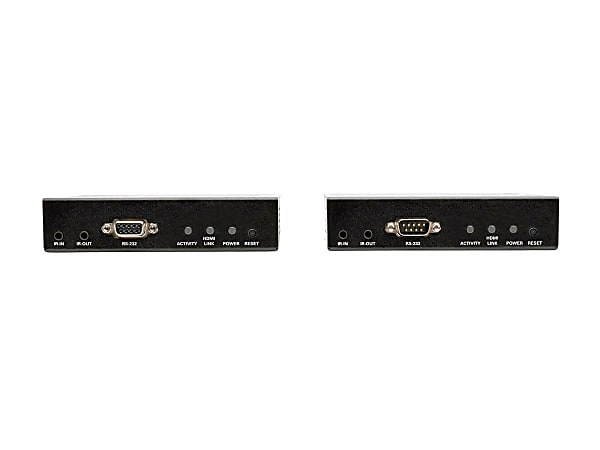

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit w/ Ethernet, Serial and IR Control 150m 500ft Item # 266007
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The BHDBT-K-E3SI-ER HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 152 m (500-ft.) over a single Cat5e/6/6a cable, including a 1920 x 1080(1080p) signal @ 60 Hz.In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN.You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.The plug-and-play BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.
|brand name||Tripp Lite|
|Graphics Modes||Full HD|
|Maximum Operating Distance||500 ft|
|Maximum Video Resolution||1920 x 1080|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||1|
|Number of Output Devices Supported||1|
|ports||1 Ethernet (RJ-45); 1 HDMI in; 1 HDMI out; 1 serial|
|Twisted Pair Cable Standard||Category 6a|
|warranty length||1-year limited|
|What's Included||Transmitter Unit; Receiver Unit; IR-In Cable; IR-Out Cable; 2 x External power supplies (Input: 100-240V, 50/60 Hz, 1A; Output: 5V, 3A); Mounting Hardware; Owner's Manual|
HDBaseT HDMI, Ethernet, Serial and IR Control over Cat5e/6/6a Extender Kit (Transmitter and Receiver)
- Send HDMI audio/video, Ethernet, RS-232 serial and IR control signals over a single Cat5e/6/6a cable
- Place source devices in a secure, remote location for controlled access while still delivering a signal to remote devices in another area
This extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray™ player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN.
Greater Distance Provides Greater Flexibility—Up to 500 ft.
The BHDBT-K-E3SI-ER extends a 1920 x 1080 (1080p) HDMI signal @ 60 Hz up to 500 ft. With the BHDBT-K-E3SI-ER, you have the flexibility to house the source devices in a secure, remote location while still delivering the signals to devices in another area.
Serial signals and IR control signals travel over a single Cat5e/6/6a cable along with HDMI video. This eliminates cable clutter and reduces installation costs. The BHDBT-K-E3SI-ER supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors. Two-way 39 KHz IR remote control functionality allows use of an HDMI source’s remote control in the same location as a monitor connected to the receiver.
Compatible with Current Standards
Designed to deliver high-quality results, the BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio. It also supports 36-bit Deep Color (12 bits per channel) and CEC pass-through. This extender kit is compatible with 3D video, EDID and HDCP 2.0.
The BHDBT-K-E3SI-ER does not require software or drivers, making setup simple. It includes mounting hardware for wall, rack and pole installations. Locking HDMI ports on the transmitter and receiver units prevent disconnection when used with HDMI cables with locking connectors, such as Tripp Lite’s P569-006-LOCK HDMI cables.
TAA-Compliant for GSA Schedule Purchases
The BHDBT-K-E3SI-ER is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty and Environmentally Responsible Design
The BHDBT-K-E3SI-ER comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Transmit HDMI audio/video, Ethernet, RS-232 serial and IR control signals over a single Cat5e/6/6a cable
- 3 built-In 10/100 Ethernet ports on transmitter and receiver allow connected devices to communicate
- Ideal for use in schools, retail locations, tradeshow booths and conference rooms
- Extends a 1920 x 1080 (1080p) HDMI signal @ 60 Hz up to 500 ft.
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Allows control of a Blu-ray player from the location of a remote monitor
- TAA-compliant for GSA Schedule purchases
- One-year warranty
- HDBaseT HDMI over Cat5e/6/6a Extender Kit with Ethernet, Serial and IR Control (Transmitter and Receiver)
- IR-In Cable
- IR-Out Cable
- 3.5 mm Male to DB9 Female Adapter Cable
- 3.5 mm Male to DB9 Male Adapter Cable
- (2) External Power Supplies (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
- Mounting Hardware
- Owner’s Manual
