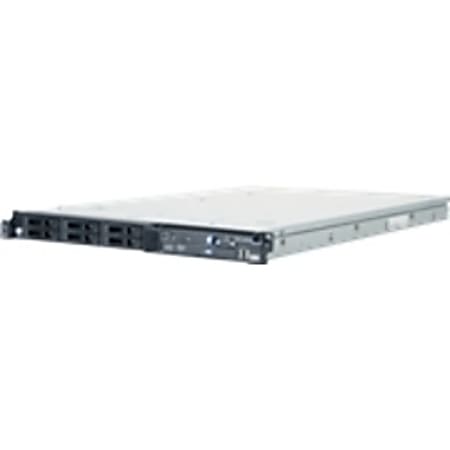

Sign up for IBM System x3550 M2 7946 - Xeon E5530 2.4 GHz
Item #316053
1 / 1
$2242.95/each
Description
The IBM System x3550 M2 offers robust, proven technology and a flexible, energy-smart design. Delivering multi-core computing on Intel Xeon processor with QuickPath Interconnect technology, this server delivers significant performance improvement per watt compared to previous generation servers by integrating low-wattage components for an energy-smart thermal profile. This server offers feature-rich systems management capabilities from power management to proactive hardware monitoring. The virtual media key option provides remote presence capabilities without taking up a slot on the planar, while IBM Systems Director Active Energy Manager provides advanced power monitoring and notification. Designed to provide leadership virtualization, the x3550 M2 supports the VMware ESXi 3.5 embedded hypervisor, the industry-leading solution for virtualization. In addition, the x3550 M2 provides exceptional memory capacity per core, enabling you to implement virtualization efficiently and cost-effectively.
Specifications
Product Specifications
| Item # | 316053 |
| Manufacturer # | 316053 |
| manufacturer | IBM/Lenovo |
| Type | Server |
| Product Form Factor | rack-mountable - 1u |
| Built-in Devices | LED panel |
| Embedded Security | trusted platform module (tpm 1.2) security chip |
| server scalability | 2-way |
| front accessible bays qty | 1 |
| hot-swap bays qty | 6 |
| depth | 27.5 in |
| weight | 28 lbs |
| color | Stealth Black |
| Localization | English |
| processor type | intel xeon e5530 / 2.4 ghz |
| 64-bit Computing | Yes |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| upgradability | upgradable |
| Processor Main Features | hyper-threading technology, intel quickpath interconnect |
| cache memory type | l3 cache |
| Cache Memory | 8 mb |
| Cache Per Processor | 8 MB |
| Chipset Type | intel 5520 |
| data bus speed | 1066 mhz |
| memory | 4 gb / 128 gb (max) |
| memory type | ddr3 sdram - ecc chipkill |
| memory speed | 1066 MHz |
| maximum memory upgrade | pc3-10600 |
| form factor | DIMM 240-pin |
| Configuration Features | 2 x 2 GB |
| storage controller type | 1 x serial attached scsi - plug-in card - pci express |
| Storage Controller Name | LSISAS1068 |
| Channel Qty | 8 |
| RAID Level | raid 0, raid 1, raid 1e |
| storage controller (2nd) type | 1 x serial ata - integrated |
| Controller Interface Type | serial ata-300 / sas |
| hard drive capacity | none. |
| optical storage type | cd-rw / dvd-rom combo - serial ata |
| read speed | 24x (CD) / 8x (DVD) |
| monitor type | None. |
| graphics controller type | pci - integrated |
| graphics processor / vendor | matrox mga g200e |
| Video Memory | 128 mb ddr2 sdram |
| networking | network adapter - pci express - integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| ethernet controller(s) | 2 x broadcom bcm5709s |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | ipmi 2.0 |
| Remote Management Controller | Maxim VSC452 Super Baseboard Management Controller with Integrated VGA Controller |
| expansion bays total (free) | 6 ( 6 ) x hot-swap - 2.5" sff ª 1 ( 0 ) x front accessible - 5.25" x 1/6h (slim line) |
| expansion slots total (free) | 2 ( 1 ) x processor - lga1366 socket ª 16 ( 14 ) x memory - dimm 240-pin ª 1 ( 1 ) x pci express x16 - low-profile ª 1 ( 1 ) x pci express x16 - half-length, full-height |
| data input method | 4 x hi-speed usb - 4 pin usb type a ( 2 in front ) ª 2 x display / video - vga - 15 pin hd d-sub (hd-15) ( 1 in front ) ª 2 x network - ethernet 10base-t/100base-tx/1000base-t - rj-45 ª 1 x serial - rs-232 - 9 pin d-sub (db-9) ª 1 x management - rj-45 |
| digital camera use | wake on lan (wol), pxe support, teaming support |
| Compliant Standards | fcc class a certified, nom, fcc part 15, ices-003 class a, ul 60950-1, iec 60950-1, csa c22.2 no. 60950-1-03 |
| Manufacturer Selling Program | ibm express |
| image technology | power supply - hot-plug |
| Power Redundancy | yes |
| Power Redundancy Scheme | 1+1 |
| wattage | ac 120/230 v ( 50/60 hz ) |
| Power Provided | 675 watt |
| Warranty | 3 years warranty |
| Service & Support Details | limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Min Operating Temperature | 50 ¦f |
| Max Operating Temperature | 95 ¦f |
| Humidity Range Operating | 8 - 80% |
$2242.95/each
