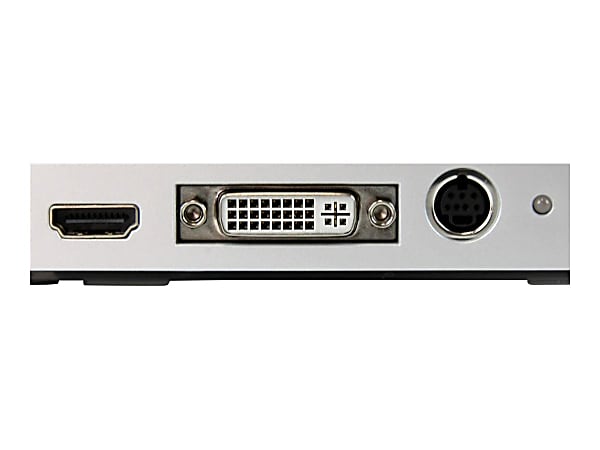

StarTech.com USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps Item # 355742
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
355742
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC. This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac, iOS and Android with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere and Windows Media Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch.This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using the SDI to HDMI converter (SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.The device also includes easy-to-use software that's compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers. Will not record digitally encrypted content. Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S400 or PEXUSB3S4.
Product Details
| Item # | 355742 |
| Manufacturer # | 11597709 |
| brand name | StarTech |
| Certifications & Standards | CE; FCC |
| color | black |
| depth | 3.3 in. |
| DVI | Yes |
| form factor | External |
| Frame Rate | 60 fps |
| functions | Video Conversion; Video Encoding |
| HDMI | Yes |
| height | 1 in. |
| Host Interface | USB 3.0 |
| manufacturer | StarTech.com |
| maximum resolution | 1920 x 1080 |
| Platform Supported | PC |
| ports | 1 DVI in; 1 HDMI in |
| quantity | 1 |
| System Requirements | OS Compatibility:Windows® 8 (32/64bit); Windows® 7 (32/64bit); Windows® Vista(32/64); Windows® XP(32/64) |
| video formats | MPEG-4; H.264 |
| Video System | NTSC; PAL-M; PAL60 |
| warranty length | 2-year limited |
| Weight (Approximate) | 3.74 oz |
| What's Included | USB 3.0 HD Video Capture Device; 1 x A/V breakout cable; 1 x DVI to VGA Adapter; 1 x USB 3.0 Cable; 1 x Instruction Manual |
| width | 4.5 in. |
| Show More ▾ |
Customer Reviews
StarTech.com USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps is rated
out of
5 by
4.
Rated 5 out of
5
by
price from
Very good product
This is a very good product. I have been using it for about 18 months. I did have to educate myself about how to use DirectShow with VLC. But the hardware is very good quality. Now I just need Startech to make one capable of 4K video capture. I will buy it when they do.
Date published: 2018-12-04
Rated 5 out of
5
by
DJ Jeremy from
I Am So Glad I Bought This!
I bought this from Amazon and it has been amazing! I had a minor issue when I first installed it but tech support helped me through it. What was amazing was I called them on a holiday and not only did they help me through it, the gentleman who helped me was really cool and professional...even though I was bugging him on a holiday! I haven't had a problem with it since! My only complaint is that it's not Mac compatible, but I knew that going in so I don't hold it against them...just maybe a suggestion for the near future considering the most common forms of video editing are done on Mac.
Date published: 2016-11-05
Rated 5 out of
5
by
Abbe from
Excellent product
The product is good. I just had a lil problem and I can say the tech support from Startech is amazing. Thank you to DAN and DAVID, the software kept displaybg "NO SIGNAL" until we changed the USB port I was using on my PC, it's good now! Thank you guys
Date published: 2016-01-07
Rated 5 out of
5
by
JohnnyCaps from
Great Product with Great Support
I was looking for something that might be able to record a specific HDMI output signal and so with the help of the excellent support staff at StarTech, and a little sleuthing of my own, I was able to accomplish that goal. All 3 things came together, the hardware, the support and some of my own initiative.
The support staff spend over 45 minutes with me one day. If they can't figure out how to accomplish something with their hardware it probably can't be done.
Date published: 2015-11-04
Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC
- Seamless picture quality with USB 3.0 bandwidth enabling you to capture 1080p video at 60fps
- Record from virtually any device, with support for HDMI, DVI, VGA, and Component video input sources
- Supports 2-channel stereo audio (HDMI / RCA)
- NTSC and PAL systems supported
- Supports 16:9 and 4:3 aspect ratio
.jpg)
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Seamless picture quality at 60 FPS
Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.
.jpg)
H.264 encoding for wide device compatibility
The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac®, iOS® and Android™ with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch.
This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft® DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).
.jpg)
Flexible Input Solutions for Convenient Compatibility
With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter (SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that’s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Notes:
- A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers.
- Will not record digitally encrypted content.
- Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S400 or PEXUSB3S4.
Computer System Requirements:
- Operating System: Microsoft® Windows® Vista / 7 / 8 / 8.1 / 10 (32/64-bit)
- CPU: i3 Dual Core 2.8GHz or higher
- Memory: 2 GB
- USB 3.0 host controller (Confirmed support with: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100)
Applications
- Record video for training and tutorial purposes from varying video output technologies
- Stream live video feeds online with streaming services such as twitch
- Use with ST122HDMILE HDMI splitter to capture HD video game play at 60 frames per second, while playing on a different display
- Convert analog video to digital in professional video archiving applications
