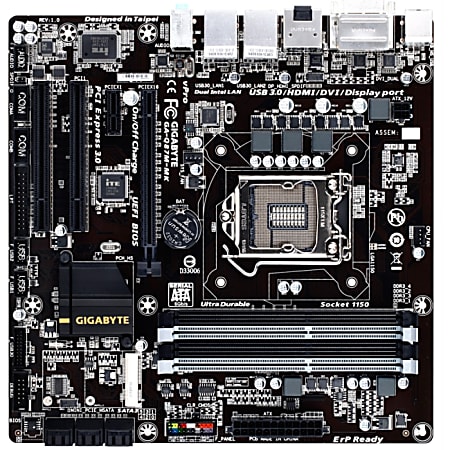

Sign up for Gigabyte Ultra Durable 4 Plus GA-Q87M-MK Desktop Motherboard - Intel Q87 Express Chipset - Socket H3 LGA-1150
Item #527119
1 / 1
$161.99/each
Description
Gigabyte 8 Series motherboards support the Intel Core processor, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, Gigabyte 8 series motherboards are in a class of their own.
Specifications
Product Specifications
| Item # | 527119 |
| Manufacturer # | GA-Q87M-MK |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887 |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| BIOS Type | AMI |
| brand name | Gigabyte |
| Bus Clock | 1600 MHz, 1333 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | Q87 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 9.6 in. |
| DisplayPort | Yes |
| DVI | Yes |
| Environmental Certification | WEEE; China RoHS; ErP Ready |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | 3x USB Power Boost, Teaming Technology, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Intel Smart Response Technology, One Port One Fuse, GIGABYTE 333 Onboard Acceleration, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Small Business Advantage support, ESD Protection, Ultra Durable 4 Plus, Clear CMOS Button |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| HDMI | Yes |
| Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x parallel - header; 2 x serial - header; 1 x SPDIF out - header |
| manufacturer | GIGABYTE Technology, Inc |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Memory Technology | DDR3 SDRAM |
| model | GA-Q87M-MK |
| Number of Memory Slots | 4 |
| Number of Mini PCI Express Slots | 1 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Number of PCI Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 5 |
| Onboard Audio Header | Yes |
| Onboard Parallel Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | Ultra Durable 4 Plus 8 Series GA-Q87M-MK (rev. 1.1) Desktop Motherboard; Bundle Software |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 2 DVI out; 2 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 2 USB 2.0; 4 USB 3.0 |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| Processor Technology | vPro Technology |
| Product Line | Ultra Durable 4 Plus |
| Product Series | 8 |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 2 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
| weight | 2.25 lb |
| UPC | 818313017758 |
$161.99/each
