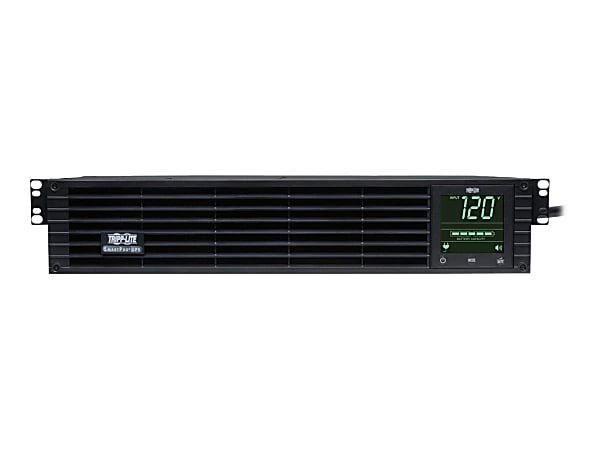

Tripp Lite SmartPro SMART1500RM2U 8-Outlet Rackmount Uninterruptible Power Supply, 1500VA/1350 Watts Item # 651894
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The SMART1500RM2U SmartPro Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, it switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
- Featuring eight NEMA 5-15R outlets (four switchable) and a 10" power cord with 120V NEMA 5-15P input.
- Internal battery provides up to 13 minutes of support at half load and up to 4.5 minutes at full load.
- A front-panel LCD screen lets you monitor important data, such as load level, voltage, battery charge and estimated runtimes.
- Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power.
- EMI/RFI noise filtering improves your equipment’s performance and prevents damage.
- A 570-joule surge suppression rating protects your equipment from harmful power surges.
- PowerAlert software (available via free download) enables safe unattended system shutdown and file saves in case of a prolonged power failure.
- ENERGY STAR— For products that meet federal guidelines for energy efficiency.
|Alarm||On Battery; Overload; Low Battery|
|average charging time||4 hours|
|Backup/Run Time (Full Load)||4.50 Minute|
|Backup/Run Time (Half Load)||13 Minute|
|Battery Life||6 Year|
|battery type||Sealed Lead Acid (SLA)|
|brand name||Tripp Lite|
|Certifications & Standards||UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications|
|coaxial cable line protection||yes|
|connected equipment warranty||$250,000|
|cord length||10 feet|
|dimensions||3.5"H x 17.5"W x 13.5"D|
|Emergency Power OFF||Yes|
|EMI/RFI noise reduction||yes|
|fax/phone line protection||no|
|Frequency Provided||60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Voltage||110 V AC|
|joule rating||570 joules|
|Load Capacity (VA)||1500 VA|
|Load Capacity (Watt)||1350 W|
|Maximum Battery Recharge Time||4 Hour|
|mounting hardware included||yes|
|Network Management||SNMP Manageable|
|number of outlets||8|
|number of outlets with battery backup||8|
|Output Voltage||120 V AC|
|Plug/Connector Type||NEMA 5-15P|
|protection status indication||yes|
|Receptacles||8 x NEMA 5-15R|
|Status Indicators||5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.|
|Total Number of Expansion Slots||1|
|warranty length||3-year limited|
|Waveform Type||Sine Wave|
|Weight (Approximate)||46 lb|
|What's Included||SmartPro 1500RM2U UPS; Mounting hardware for 4 post rackmount installation; Cabling for USB & DB9 Monitoring and EPO Switching; PowerAlert Unattended Shutdown and UPS/Power Monitoring Software; Warranty Information|
|Show More ▾|
SMART1500RM2U SmartPro® Line-Interactive Rack/Tower Sine Wave UPS with Network Slot and LCD
for servers and network hardware
This line-interactive UPS system protects your critical network systems from damage, downtime and data loss.
- Pure sine wave output improves compatibility with sensitive equipment.
- Battery backup powers critical systems during outages.
- Advanced AVR corrects power sags (brownouts) and overvoltages.
- Surge protection blocks harmful transient voltages.
- LCD shows power conditions and permits easy access to settings.
- Network card slot supports optional remote access and network management.
- USB and serial ports connect to computers for power management.
- 3-year warranty and $250,000 insurance reflect commitment to reliability.
Why is this UPS a Good Investment?The success of any organization depends on critical information systems like servers and network hardware. If your critical systems don't have reliable power, employees can't work, communications go down, automated systems malfunction and productivity grinds to a halt. It would be nice if utility power was always reliable, but it isn't. Between severe weather, the aging electrical grid and unavoidable hazards lurking inside your own walls, your servers and network hardware are under constant attack from power problems. Even a brief loss of power or a momentary surge can damage your equipment, corrupt your data, bring down your network and hurt your bottom line.
The potential costs of downtime are alarming. Surveyed averages range from $1,167 per minute for mid-size businesses (IDC) to $7,908 per minute for larger operations (Ponemon Institute). For a tiny fraction of these costs, you can prevent damage, downtime and data loss by installing this SmartPro® UPS system. It conditions incoming AC power to protect your equipment, provides enough battery backup to outlast most outages and allows critical systems to shut down gracefully to prevent data loss and corruption during extended blackouts.
This UPS system also has a high power factor (0.9), allowing you to connect more equipment to the UPS and circuit. A 1500 VA UPS with a typical 0.8 power factor can support a 1200 W load, while a 1500 VA UPS with a high 0.9 power factor can support a 1350 W load, an increase of 12.5 percent without a corresponding increase in circuit or space requirements.
Common ApplicationsProtect Servers and Network Hardware
Application Servers, Storage Servers, Database Servers, File Servers, Virtualization Servers, Proxy Servers, Web Servers, Media Servers, VoIP Servers, Network-Attached Storage, Network Switches, PoE Switches, Firewalls, Network Appliances, Bridges, Gateways, Routers
Protect Equipment with Active PFC Power Supplies
Active PFC power supplies found in many devices require pure sine wave power.
Pure Sine Wave OutputWhen operating from battery power, a UPS system generates the waveform of its AC output. Many UPS systems generate PWM sine wave power, an approximation of the pure sine wave power you receive from your electrical utility. Although PWM sine wave power is compatible with most equipment, pure sine wave power is required by some devices -- such as computers with active PFC power supplies -- and prevents others from overheating, malfunctioning or failing prematurely. This UPS system generates pure sine wave power for superior compatibility with active PFC power supplies and other sensitive equipment.
Advanced AVR and Surge/Noise ProtectionIn locations with chronic voltage problems, frequent switching to battery drains reserve power and shortens battery life. This UPS system has a feature called automatic voltage regulation (AVR) that solves the problem. The UPS detects when input voltage is out of bounds and corrects it without using the battery.
All Tripp Lite UPS systems also include built-in surge protection and noise filtering to shield your equipment from destructive transient voltages and electromagnetic (EMI/RFI) line noise.
Flexible Management OptionsThere are several ways to manage this UPS system:
- [Use the multifunction LCD screen for comprehensive local management.
- Use the USB port with your computer's built-in power management features.
- Use the USB or serial port with your computer and Tripp Lite's PowerAlert® software. PowerAlert provides enhanced features like automatic file saves, event notification, logging, advanced device control and an SNMP agent that supports centralized management. Select UPS models include a convenient CD-ROM, or you can download the latest version of PowerAlert for free at Tripp Lite's website.
- Install an optional network card to enable standalone network management via SNMP, Web, SSH or telnet. The network card has an Ethernet port and embedded interface, allowing you to access advanced monitoring, control and notification features without directly connecting the UPS system to a computer. The network card also supports connecting one or more optional sensors for remote temperature, humidity and contact closure monitoring. (Available network cards and sensors include TLNETCARD with TLNETEM sensor; WEBCARDLX with E2MT, E2MTDO, E2MTDI and E2MTHDI sensors; and SNMPWEBCARD with ENVIROSENSE sensor. Refer to each model for specific features.)
Multifunction LCD ScreenThe illuminated LCD provides easy access to detailed UPS settings and information. The LCD shows a variety of helpful data, including input/output voltage, output load percentage, output load wattage, power status, battery status, AVR status, battery capacity, estimated backup runtime remaining and daily power consumption. If you decide to install the UPS system in a tower configuration, you can rotate the LCD for optimal viewing.
- High Efficiency: This UPS system saves energy, produces less heat, shrinks your carbon footprint and reduces annual operating costs.
- User-Replaceable Battery: This UPS system has a user-replaceable, recyclable battery, allowing it to remain in service instead of going to a landfill.
- RoHS Compliance: This UPS system complies with the RoHS (Restriction of Hazardous Substances) Directive, limiting the use of hazardous substances in manufacturing.
Dependable Service from an Industry LeaderService and Support
- 3-Year Product Warranty: If this UPS system (including the internal battery) proves defective in material or workmanship within that period, Tripp Lite will repair or replace it at no charge.
- $250,000 Insurance: Tripp Lite will repair or replace connected equipment damaged by surges – even lightning strikes!
- Free Tech Support: Chicago-based, in-house tech specialists are available by phone, email and chat.
- Over 90 Years: Founded in 1922, Tripp Lite has a long-established and proven track record of providing reliable products and responsive customer service.
- Trusted Name: From the smallest office to the largest data center, customers worldwide trust Tripp Lite to power, protect, manage and connect valuable IT equipment.
- Third-Party Safety Testing and ISO 9001 Certification
Key SpecificationsModel: SMART1500RM2U
Load Capacity: 1.5 kVA (1.35 kW)
Power Factor: 0.9
Nominal AC Input: 120V, 60 Hz
Nominal AC Output: 120V, 60 Hz
AC Outlets: 8 x 5-15R
Switched Outlet Banks: 2 Banks of 2 Outlets
Output Waveform (AC Mode): Sine Wave
Output Waveform (Battery Mode): Pure Sine Wave
Input Cord: 10 ft. (3 m) Cord with 5-15P Plug
Half-Load Runtime: 13 min. (675 W Load)
Communications: USB Port (HID-Compliant); Serial Port (DB9); Network Card Slot; EPO
User-Replaceable Battery: Yes (RBC93-2U)
Primary Form Factor: 2U Rack (Supports 4-post rack installation with included kit. Add 2POSTRMKITWM for 2-post rack or wall-mount installation. Add 2-9USTAND for tower installation.)
Dimensions: 3.5 x 17.5 x 13.45 in. (8.9 x 44.5 x 34.2 cm)
Weight: 46.5 lb. (21.1 kg)
Standards: UL 1778 (USA); CSA (Canada); NOM (Mexico); FCC (EMI); RoHS
Product Warranty (Worldwide): 3-Year Limited Warranty (Registration required for third year.)
Connected Equipment Insurance (U.S., Canada and Puerto Rico): $250,000
What's Included: UPS, 4-Post Rack Installation Kit, USB/Serial/EPO Cabling, PowerAlert Software, Manual
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Actual products may differ slightly from photos. Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. Runtime varies with load, battery condition and other factors. Go to Tripp Lite's website for more information, including complete warranty terms and conditions.
