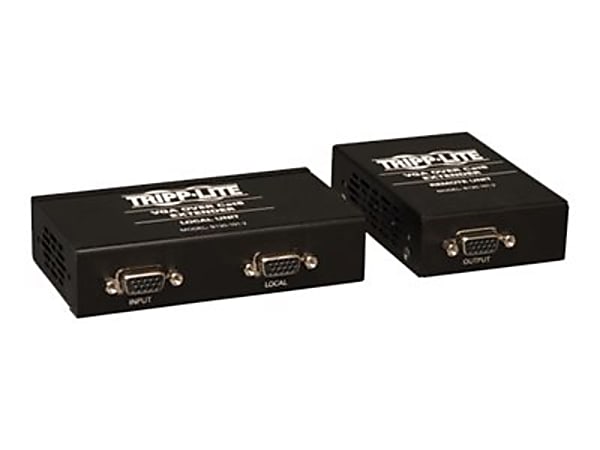

Tripp Lite VGA over Cat5/Cat6 Video Extender Kit Transmitter/Receiver EDID 1000' Item # 696781
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
|brand name||Tripp Lite|
|Certifications & Standards||TAA|
|form factor||Wall Mountable; Rack-mountable; Pole-mountable|
|Input Voltage||110 V AC; 220 V AC|
|Maximum Operating Distance||1000 ft|
|Maximum Video Resolution||1920 x 1440|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||1|
|Number of Output Devices Supported||2|
|ports||2 Ethernet (RJ-45); 1 VGA in; 2 VGA out|
|Twisted Pair Cable Standard||Category 6|
|warranty length||1-year limited|
|What's Included||Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.); Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.); Mini-Screwdriver for EQ/Gain Adjustment; 2 x Mounting Hardware Kits; 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A); Owner's Manual|
|Show More ▾|
Extend Your VGA Signal up to 1,000ft. With Tripp Lite
Don’t sacrifice quality for distance—extend a VGA signal up to 1,000 ft. ! The Tripp Lite B130-101-2 VGA over Cat5 Extender Kit delivers peak performance from VGA-enabled digital video components. When used with 24 AWG Solid-Wire Cat5e/6 cabling like Tripp Lite’s N022-01K-GY or N222-01K-GY, it can extend a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1,000 ft. For maximum image quality between 500 and 1,000 ft. , use Zero-Skew cable such as Tripp Lite P524-01K. This kit comes with both the local and remote connection units, allowing you to plug in and get started right away. With no software or drivers to install, the B130-101-2 provides total plug-and-play convenience. For peace of mind, the B130-101-2 comes backed by a one-year warranty.
The Smart Solution for Digital Signage Applications
Greater Distance—Greater FlexibilityWhen used with 24 AWG Solid Wire Cat5e/6 cable like Tripp Lite's N022-01K-GY or N222-01K-GY, the B130-101-2 can extend a 1920x1440 (60Hz) signal up to 500 ft. or a 1024x768 (60Hz) signal up to 1,000 ft. This distance can be further expanded with the addition of B132-110 repeaters. Up to 3 repeaters can be connected, with the B130-101-2 receiver at the end of the chain, for a total of 4 sets of monitors. For maximum image quality between 500 and 1,000 ft., use Zero-Skew cable such as Tripp Lite's P524-01K.
One-Year WarrantyThe B130-101-2 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. It is also compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. For peace of mind, it comes backed by a one-year warranty.
- Ideal for digital signage applications in schools, churches, retail locations and trade show presentations
- Extends a VGA signal up to 1,000 ft.
- Supports resolutions up to 1920 x 1440 (60 Hz)
- EDID copy feature ensures optimal display compatibility
- Built-in equalization control
- One-year warranty
