Tripp Lite 40G to 10G Breakout Cassette 2 12-Fiber MTP/MPO to 12 LC Duplex Item # 978987
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's N484-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 40GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with (x2) 12-Fiber MTP/MPO cables, breaking out to (x12) LC Duplex fiber connections. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
|brand name||Tripp Lite|
|LC Port Type||Duplex|
|ports||12 LC; 2 MT; 14 RJ-11|
|Total Number of Ports||14|
|warranty length||limited lifetime|
|Weight (Approximate)||11.20 oz|
|What's Included||40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber MTP/MPO to ( x12 ) LC Duplex; Quick Start Guide|
High-Density Fiber Cassette is a Simple Solution for 40Gb to 10Gb Connections (MTP/MPO to LC)
- High-density network applications as specified in the Data Center Cabling Standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas

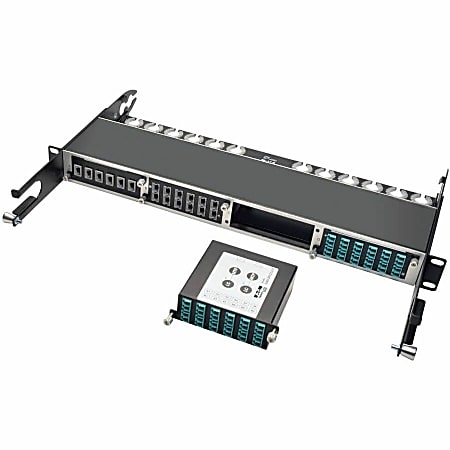

The N484-2M12-LC12 cassette is easy to install into a Tripp Lite N484-00U sleeve or N484-01U 1U enclosure panel. Insert the cassette and tighten the screw tabs to secure it to the sleeve or panel. Loosen the screw tabs for removal. No tools are required. Once the cassette is installed, you can connect your cables. One N484-2M12-LC12 cassette fits in the N484-00U sleeve and up to four cassettes fit in the N484-01U 1U panel. The connectors are factory terminated to reduce time and labor during field installations.
Meets or Exceeds the Latest Standards
The N484-2M12-LC12 complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements. It has a max insertion loss of 0.35 dB, which is far below the IEEE 802.3ae maximum channel loss spec of <25 dB.
- High-density fiber cassette for use with Tripp Lite’s N484-00U Cassette Sleeve or N484-01U Enclosure Panel
- 40Gb to 10Gb breakout cassette with (x2) 12-Fiber MTP/MPO connections to (x12) LC Duplex connections
- 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
- No tools are required for installation and removal; just tighten and loosen the screw tabs
- Factory terminated connectors reduce the time and labor required during field installations
- Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
- Max insertion loss of 0.35 dB is far below the IEEE 802.3ae maximum channel loss spec of <25 dB
- Heavy-duty steel housing with dust caps to protect unused ports
- Lifetime warranty
What’s in the Box
- N484-2M12-LC12 40Gb to 10Gb Breakout Cassette – (x2) 12-Fiber MTP/MPO to (x12) LC Duplex
- Quick Start Guide
