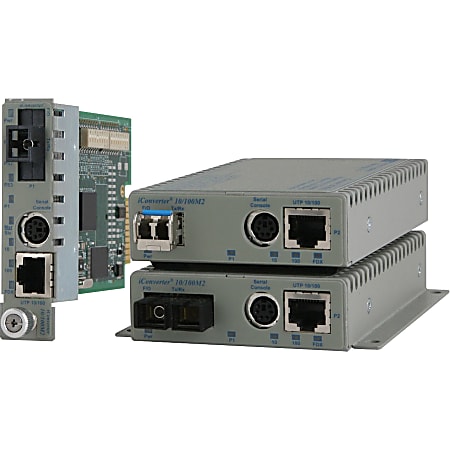

The 10/100M2 utilizes the iConverter Operations, Administration and Maintenance (OAM) management system to remotely monitor network status, configure hardware parameters, generate statistic reports and receive a variety of user-specified traps. The iConverter management system reduces operational expenditures by keeping "truck rolls" to a minimum through remote provisioning and instant trap notification capabilities.The iConverter 10/100M2 supports port access, enhanced bandwidth control, Port MIB statistics, 2,048 byte frames and Layer 2 Control Protocol (L2CP) Policy Control.The 10/100M2 features multiple, user-selectable link fault detection modes for quick fault detection and isolation. These modes operate independently of the network management and monitor the state of the cabling hardware:Link-Segmentation (LS): the normal (default) mode where the UTP and fiber ports establish their links to other connected devices independently of each other.Link-Propagation (LP): in this mode (also known as "Link-Loss-Carry-Forward"), a link-out from the UTP port is generated only when a link-in to the fiber port is present, and a link-out from the fiber port is generated only when a link-in to the UTP port is present. In LP mode, a cable or link fault is propagated in a "domino" fashion to downstream or upstream connected equipment, enabling rapid fault detection.Asymmetrical Link Propagation (ALP) has two modes of operation: copper-to-fiber and fiber-to-copper. In the 'copper-to-fiber' mode, a fault on the UTP port will propagate across the fiber to attached link partner, but not to the UTP port of the link partner. A fault on the fiber will not propagate at all. In the 'fiber-to-copper' mode, a fault on the UTP port will not propagate through to the attached UTP device. In this mode the "domino" effect is limited.Remote-Fault-Detection (RFD): in RFD+LS mode, each port transmits a link signal only when receiving a link. As a result, link faults (no link received) are looped-back and can be reported to the network coreRemote Fault Detection + Link Propagate (RFD+LP): in RFD+LP mode, link faults are propagated from the fiber to the UTP port and also looped-back to the fiber port. This mode provides rapid reporting of any cable faults to the network core.Symmetrical-Fault-Detection (SFD): SFD mode is similar to the RFD mode and provides a loop-back of a fiber link fault. When connecting two SFD configured converters "back-to-back", this mode facilitates fiber or UTP fault notification to both ends of the network.
|brand name||Omnitron Systems|
|form factor||Desktop; Wall Mountable; Rail-mountable|
|Input Voltage||110 V AC; 220 V AC|
|package contents||10/100BASE-TX UTP to 100BASE-FX Media Converter and Network Interface Device; Mini DIN-6 Male to DB-9 Female Adapter|
|warranty length||limited lifetime|
