Tripp Lite PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM Item # 437860
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

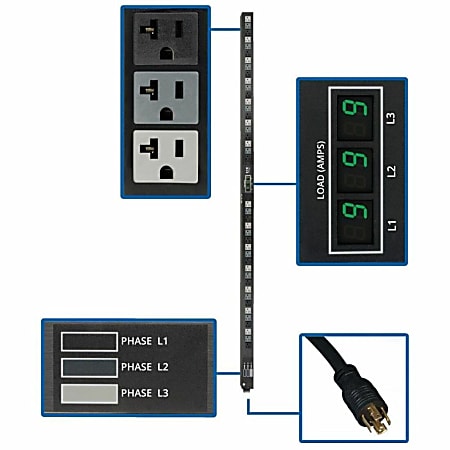

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
|brand name||Tripp Lite|
|Input Connectors||1 x power NEMA L21-20|
|Input Receptacles||NEMA L21-20P|
|Input Voltage||230 V AC|
|Output Receptacles||42 x NEMA 5-15/20R|
|Output Voltage||120 V AC|
|Power Rating (Watt)||5700 W|
|warranty length||2-year limited|
|Weight (Approximate)||12.57 lb|
|What's Included||3-Phase Metered PDU; Cord Retention Brackets; Rack Mounting Brackets; User Manual|
|Show More ▾|
Built-In Digital Meters Provide Visual Monitoring of 3-Phase Power Distribution
The PDU3MV6L2120LV provides reliable 120V power service via 42 5-15/20R outlets arranged in three single-phase output load banks. This PDU has a rugged all-metal housing and a 6 ft. power cord with L21-20P twist-lock plug. Load capacity is 5.7kW.
Digital Load Meters for Real-Time Visual Monitoring
Three digital load meters that provide the current level (in amps) of connected equipment in each load bank. The meters help ensure the PDU is used at maximum capacity with no danger of overload.
The PDU3MV6L2120LV is easy to integrate with a wide range of data center and network applications. It can be configured for 0U (vertical) rack installation with the included mounting brackets, and it also supports toolless button-mount vertical installation in compatible rack enclosures. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack.
The PDU3MV6L2120LV is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty and Environmentally Responsible Design
The PDU3MV6L2120LV comes backed by a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Reliable power distribution in IT environments
- 3 digital meters display current draw of connected equipment
- Compact, 0U vertical rackmount installation
- Rugged all-metal housing with 42 5-15/20R outlets
- Cord retention brackets secure equipment power cords
- 2-year warranty
What’s in the Box
- 3-Phase Metered PDU
- Cord retention brackets
- Spare installation buttons
- Mounting brackets
- Owner’s manual
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
