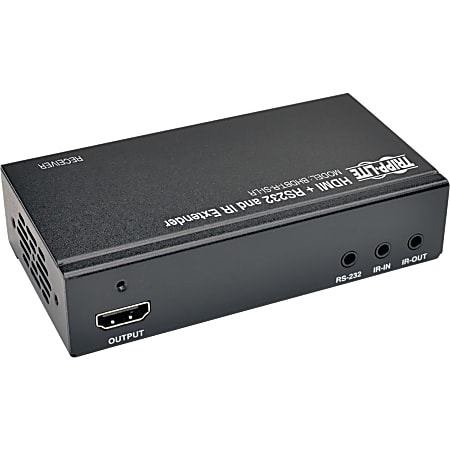

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Receiver, Serial and IR Control 4K x 2K 100m 328ft Item # 668003
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals. Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver. You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal. The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
|brand name||Tripp Lite|
|form factor||Wall Mountable; Rack-mountable; Pole-mountable|
|Maximum Operating Distance||328 ft|
|Maximum Video Resolution||3840 x 2160|
|Media Type Supported||Twisted Pair|
|Number of Output Devices Supported||1|
|ports||1 Ethernet (RJ-45); 1 HDMI out; 1 serial|
|Receiver Depth||2.50 in.|
|Receiver Height||1.10 in.|
|Receiver Weight (Approximate)||8.80 oz|
|Receiver Width||4.50 in.|
|Twisted Pair Cable Standard||Category 6a|
|warranty length||1-year limited|
|What's Included||BHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver; IR-IN Cable; IR-Out Cable; 3.5 mm Male to DB9 Female Adapter Cable; 3.5 mm Male to DB9 Male Adapter Cable; External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A); Mounting Hardware; Owner's Manual|
|Show More ▾|
HDBaseT HDMI, Serial and IR Control over Cat5e/Cat6 Extender Receiver
- Receive HDMI audio/video, RS-232 serial and IR control signals from a matrix transmitter over a single Cat5e/6/6a cable
- Place source devices in a secure, remote location for controlled access while still delivering a signal to remote devices in another area
When used with a Tripp Lite BHDBT-T-SI-4X2 or BHDBT-T-SI-4X4 matrix transmitter, the BHDBT-R-SI-LR receiver extends a 1920 x 1080 (1080p) HDMI signal @ 60 Hz up to 328 ft. or a UHD 4K 3840 x 2160 signal up to 328 ft. (use Cat6a cable to achieve maximum distances). With the BHDBT-R-SI-LR, you have the flexibility to house source devices in a secure, remote location while still delivering the signals to monitors, televisions or projectors in another area.
Compatible with Transceivers to Expand and Extend Installations
To expand your installation and extend its reach, add up to five Tripp Lite BHDBT-TR-SI-LR transceivers between a BHDBT-series matrix transmitter and the BHDBT-R-SI-LR receiver. With five transceivers, you can transmit signals up to 2,000 ft. Each transceiver supports connection of an HDMI display.
In addition to HDMI video, serial signals and IR control signals travel from a BHDBT-series matrix transmitter to this receiver over a single Cat5e/6/6a cable. This eliminates cable clutter and reduces installation costs. The BHDBT-R-SI-LR supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors. Two-way 39 KHz IR remote control functionality allows use of an HDMI source’s remote control in the same location as a monitor connected to the receiver. This gives you the ability to control your Blu-ray™ player with its remote while standing at the remote monitor (and vice versa).
Compatible with Current Standards
Designed to deliver high-quality results, the BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio. It also supports 36-bit Deep Color (12 bits per channel) and CEC pass-through. This receiver is compatible with 3D video, EDID and HDCP 2.0.
The BHDBT-R-SI-LR does not require software or drivers, making setup simple. It includes mounting hardware for wall, rack and pole installations. A locking HDMI port on the receiver prevents disconnection when used with HDMI cables with locking connectors, such as Tripp Lite’s P569-006-LOCK HDMI cables. Power and activity LEDs indicate status at a glance.
TAA-Compliant for GSA Schedule Purchases
The BHDBT-R-SI-LR is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty and Environmentally Responsible Design
The BHDBT-R-SI-LR comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Receive HDMI audio/video, RS-232 serial and IR control signals over a single Cat5e/6/6a cable
- Works with a BHDBT-T-SI-4X4 or BHDBT-T-SI-4X2 matrix transmitter
- When used with a matrix transmitter, extends a 1920 x 1080 (1080p) HDMI signal @ 60 Hz up to 328 ft. or a UHD 4K 3840 x 2160 signal up to 328 ft.
- Ideal for use in schools, retail locations, tradeshow booths and conference rooms
- Supports RS-232 serial devices at baud rates up to 115 Kbps
- Allows control of a Blu-ray player from the location of a remote monitor
- TAA-compliant for GSA Schedule purchases
- One-year warranty
What’s in the Box
- HDBaseT HDMI over Cat5e/Cat6 Extender Receiver
- IR-In Cable
- IR-Out Cable
- 3.5 mm Male to DB9 Female Adapter Cable
- 3.5 mm Male to DB9 Male Adapter Cable
- External Power Supply (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
- Mounting Hardware
- Owner’s Manual
