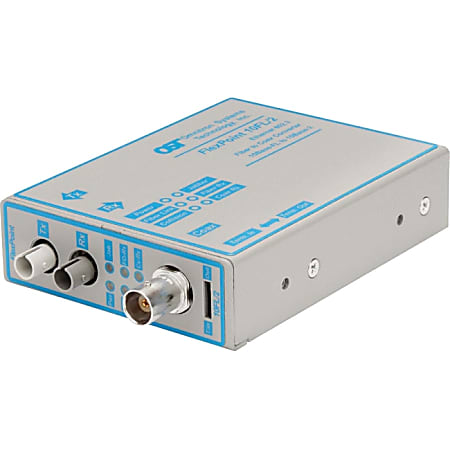

Omnitron Systems FlexPoint 4311-0 Media Converter

The FlexPoint 10FL/2 is a member of the modular FlexPoint converter product family. The FlexPoint product family supports the IEEE 802.3 standard and provides an extensive range of connectivity options across different media.The FlexPoint 10FL/2 is a 10Base-FL to 10Base-2 converter that converts between fiber and coax LANs and joins their collision domains. The FlexPoint 10FL/2 facilitates the connection of a coax segment to a fiber port. When using a pair of FlexPoint 10FL/2 converters back to back, they connect between two coax segments via fiber. On the fiber side, the FlexPoint 10FL/T uses ST connectors and features an 850 nm multimode model, a 1300 nm multimode model and a 1300 nm single-mode model. Per IEEE 802.3 timing, the length of the fiber is limited to 2 km. On the coax side, the FlexPoint 10FL/2 utilizes a BNC connector and supports a 50 ohm cable and a distance up to 185 m (606 ft.). Per IEEE 802.3 standard, up to 30 workstations can be attached to the coax segment. The FlexPoint 10FL/2 features a convenient and cost-effective cable termination via a termination switch and a built-in termination element. The FlexPoint 10FL/2 provides diagnostic data through LED indicators that assist in network installation and maintenance. The LEDs report power availability, collisions and jabber, the
