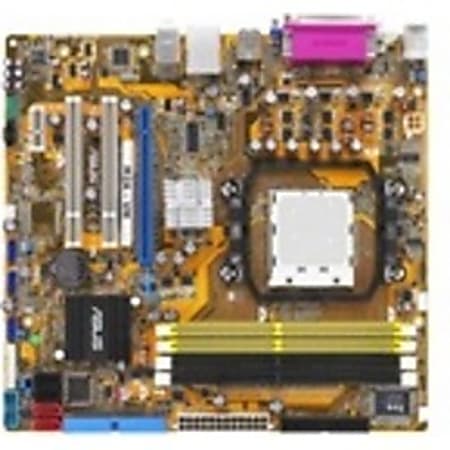

Sign up for ASUS M2A-VM AM2 AMD 690G Micro ATX AMD Motherboard - Retail
1 / 1
$77.95/each
Description
Enjoy DVI supported playback of HD DVD and Blu-ray Discs - with the M2A-VM. The motherboard supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel unbuffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology. Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability. 64-bit computing, the next generation technology to replace the current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.
Specifications
Product Specifications
| Item # | 291185 |
| Manufacturer # | 291185 |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| form factor | Micro ATX |
| depth | 9 in |
| operating system compatibility | amd live! ready |
| Compatible Processors | athlon 64, sempron, athlon 64 fx, athlon 64 x2 |
| 64-bit processors compatibility | yes |
| Processor Socket | Socket AM2 |
| multi-core support | dual-core |
| Chipset Type | amd 690g / amd sb600 |
| Max Bus Speed | 1000 MHz |
| BIOS Type | Award |
| Storage Controller | ata-133, serial ata-300 (raid) |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Installed Qty (Max Supported) | 0 ( 1 ) |
| supported ram technology | ddr2 sdram |
| Supported RAM Integrity Check | Non-ECC, ECC |
| RAM Installed ( Max ) | 0 mb / 8 gb (max) |
| supported ram speed | pc2-4300, pc2-6400, pc2-5300 |
| memory type | unbuffered, two ddr channels |
| Graphics Controller | ati radeon x1250 |
| Video Memory | shared video memory (uma) |
| audio formats supported | sound card |
| Audio Codec | Realtek ALC883 |
| Sound Output Mode | 5.1 channel surround |
| Compliant Standards | Plug and Play |
| networking | network adapter - ethernet, fast ethernet, gigabit ethernet |
| BIOS Features | dmi 2.0 support, wfm 2.0 support, asus mylogo2, smbios 2.3 support, asus ez flash 2, asus o.c. profile |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Hardware Features | chassis intrusion detection, asus q-fan, c.p.r. (cpu parameter recall), amd cool 'n' quiet technology, jack retasking, crashfree bios 3 |
| Expansion Slot(s) | 1 processor - socket am2 ª 4 memory - dimm 240-pin ª 1 pci express x16 ª 1 pci express x1 ª 2 pci |
| Storage Interfaces | amd sb600 : ata-133 - connector(s): 1 x 40pin idc - 2 device(s) ª amd sb600 : serial ata-300 - connector(s): 4 x 7pin serial ata - 4 device(s) - raid 0 / raid 1 / raid 10 |
| data input method | 1 x audio - line-in - 4 pin mpc ª 1 x storage - floppy interface - 34 pin idc ª 1 x parallel - ieee 1284 (epp/ecp) - 25 pin d-sub (db-25) ª 1 x network - ethernet 10base-t/100base-tx/1000base-t - rj-45 ª 4 x hi-speed usb - 4 pin usb type a ª 1 x display / |
| Additional Connectors (Optional) | 6 x hi-speed usb |
| cable type included | 1 x serial ata cable ª 1 x serial ata power adapter ª 1 x floppy cable ª 1 x ide cable |
| software included | drivers & utilities, asus live update, asus pc probe 2 |
$77.95/each
