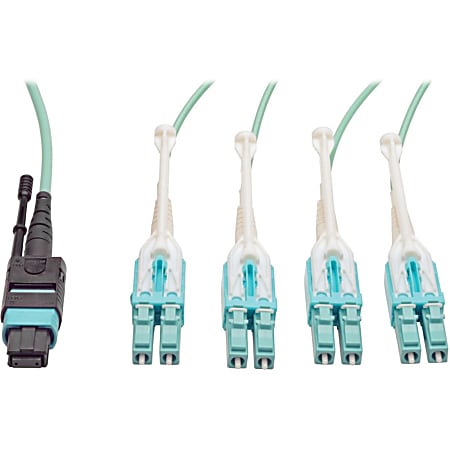

Tripp Lite 2M Fiber Optic Fan-out Cable Push / Pull Tab MTP/MPO to 8 x LC 40Gbase OM3 Plenum Aqua 6ft 6' 2 Meter Item # 407757
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's Premium MPO/MTP multi-fiber cabling system is ideally suited for a high density environment that demands space saving and reduced cable management solutions. MPO/MTP fan-outs support various connections from multi-fiber to single-fiber out. N844-02M-8LC-P cables utilize 8 fibers to fully transmit 40 GBASE-SR, 4 fibers in each direction transmitting at 10 Gbps. It includes push/pull tab connectors for maximum accessibility; install or remove the cable with one hand without needing additional tools. Its slim, uniboot design provides space savings, while its premium-grade ceramic ferrules are designed for 10 GbE and faster applications.
|brand name||Tripp Lite|
|Cable Characteristic||Fan-out Cable|
|cable type||Fiber Optic|
|Connector||8 x LC multi-mode - male|
|Connector (Second End)||MTP/MPO multi-mode - male|
|Connector on First End||MTP Network|
|Connector on Second End||8 x LC Network|
|Core / Cladding Diameter||50 / 125 micron|
|Core/Cladding Diameter||50/125 µm|
|Device Supported||Network Device|
|Fiber Optic Mode||Multi-mode|
|material||Plastic - Housing; Ceramic - Ferrule|
|Type of Fiber Optics||Multimode|
|warranty length||limited lifetime|
|Show More ▾|
2 m (6.5 ft.) Fan-Out Cable Consolidates Fiber Connections to Save Space, Time and Money
- High density network applications as specified in the Data Center Cabling Standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas
- Used with 40GBASE-SR4 networking hardware
MTP to 8 x LC Connectors for 40Gb Ethernet NetworksThe N844-02M-8LC-PT uses an MTP/MPO connector that is approximately the same size as an LC connector, but accommodates 8x the density, offering you savings in circuit card and rack space. The eight widely-compatible LC connectors are thoroughly tested to ensure they meet Tripp Lite’s stringent insertion loss standards. The N844-02M-8LC-PT is OM3-rated, designed for 40Gb Ethernet networks and is also backward compatible with existing 50/125 fiber.
Premium Components and Plenum-Rated Jacket
The N844-02M-8LC-PT is manufactured using only the finest materials. It features sturdy push/pull tab connectors for toolless, one-handed installations. A slim uniboot design saves space and makes cables easier to manage. Other top-quality components include a premium-grade ceramic ferrule designed specifically for 10GbE+ applications and fiber made from glass instead of polymer. The N844-02M-8LC-PT has a fire-protected, plenum-rated jacket for in-wall use.
The N844-02M-8LC-PT works with Tripp Lite’s N482-Series MTP and LC Fiber Cassettes and 1U and 2U Fiber Enclosure Panels (sold separately). When used together, Tripp Lite’s modular, high-density fiber solutions offer the highest level of scalability and density, leaving more space for mission-critical equipment such as switches, routers, servers and storage.
Lifetime Product Warranty and Environmentally Responsible Design
The N844-02M-8LC-PT comes backed by a lifetime warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- MTP/MPO to 8 x LC fan-out cable saves time, space and money by consolidating cable installations
- OM3, 40GbE rated, 40GBASE-SR4
- Backward compatible with existing 50/125 fiber
- Push/pull tab connectors allow for one-handed installations
- Slim uniboot design saves space and makes cables easier to manage
- Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
- Made from glass fiber
- Plenum-rated jacket
- Lifetime warranty
- MTP/MPO Fan-out Cable (2 m)
