Digi Xp Multiport Serial Adapter
1 / 1
$669.99/each
Description

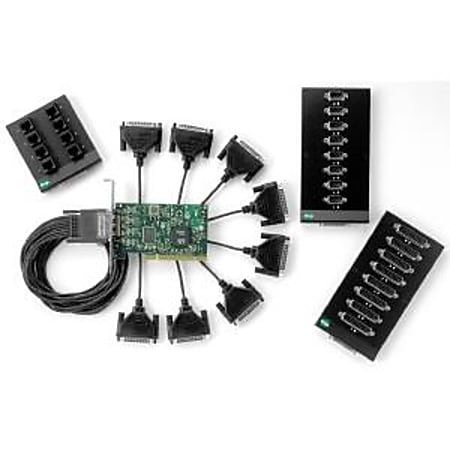

The AccelePort Xp was designed to further enhance multi-user (retail point-of-sale, industrial control processing, data collection and office automation) and Remote Access Service (RAS) implementations. The AccelePort Xp adapter, available from two to 16 high-speed serial ports, provides wide application flexibility and superior CPU utilization. This is achieved through the adapter's Application Specific Integrated Circuit (ASIC), which is built around an 80 MHz RISC processor, providing the most advanced and highest performing design on the market today. And, unlike the competition, the AccelePort Xp communicates at 921.6 Kbps, bi-directionally, on each and every serial port with low latency.The AccelePort Xp comes in a wide array of DB-9, DB-25, and RJ-45 connector options that include fan-out cables, external I/O boxes, and rack-mountable chassis. These options connect to the adapter using a SCSI HD-68 connector, reducing cable clutter and increasing connection reliability. PortAssist Manager, Digi's new Web browser-based management and reporting software, is another great feature that allows the AccelePort Xp to perform basic diagnostics, enhanced network administration and monitoring across all supported operating systems. With the introduction of the AccelePort Xp, Digi has once again set a new standard in the asynchronous communications adapter market. Its excellent throughput, unrivaled feature set, high reliability, quality and ease of installation make this product an ideal solution for all your communication needs.The Acceleport Xp "future proofs" your application to meet your end-users' growing needs:Wide range of scalability, including 2-, 4-, 8 and 16-ports;Simultaneously supports data speeds of 921.6 Kbps, bi-directionally on all ports;Bus master design minimizes CPU utilization;Universal Bus Slot support for both 3.3V and 5V;Wide array of the latest operating system drivers.
Specifications
Product Specifications
Item # | 413281 |
Manufacturer # | 70001548 |
Additional Information | Features: Small form factor; Vital Product Data (VPD); Bus mastering design reduces CPU utilization; Full modem control and hardware and software flow control; Surge protection on all signals for superior reliability; Air movement: 30 CFM forced Power Requirements:; +5V +/-5%, 640mA typical; +12V +/-5%, 100mA typical |
Altitude | 0 ft to 12000 ft |
brand name | Digi |
Cable Information | DB-25 Male Fan-out Cable |
Compatibility | PC; Unix Operating Systems:; Sun® Solaris (SPARC/Intel ); Microsoft® Windows 2000/XP; Microsoft® Windows NT; Microsoft® Windows 95/98/Me; Microsoft® Windows .NET Server 2003; Novell Netware; AIX®; UnixWare® 7; HP-UX®; SCO OpenServer®; Linux |
depth | 4.7 in. |
dimensions | 2.5" Height x 0.7" Width x 4.7" Depth |
form factor | Plug-in Card |
Host Interface | PCI-X |
Humidity | 5 to 90% Relative Humidity |
Input Current | 640 mA Typical @ 5 V DC; 100 mA Typical @ 12 V DC |
manufacturer | DIGI INTERNATIONAL |
maximum data transfer rate | 921.60 kbit/s Full-duplex On All Ports Maximum |
Package Type | Retail |
Platform Supported | PC |
ports | 1 x 68-pin HD-68 Female - SCSI |
Ports Expandability | 8 x 25-pin DB-25 RS-232 - Serial, Via Cable |
processor | 80 MHz RISC |
Product Series | XP |
Protocols | EIA-232 |
quantity | 1 |
software included | Most drivers ship with product on CD-ROM |
Temperature | 50°F (10°C) to 131°F (55°C) Operating; -13°F (-25°C) to 185°F (85°C) Storage |
thickness | 725 mil |
warranty length | 5-year limited |
weight | 5.92 oz |
$669.99/each
