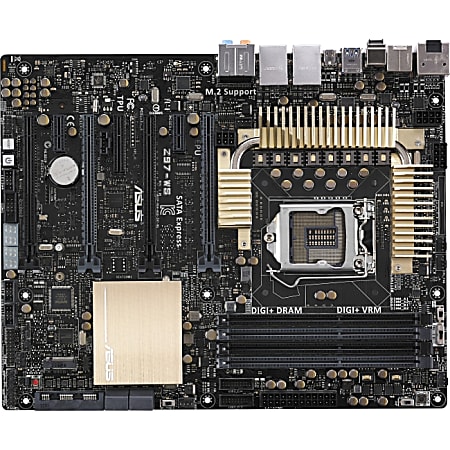

Asus Z97-WS Workstation Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$319.99/each
Description
The Intel Z97 chipset-based workstation motherboard features on-demand NVIDIA GeForce SLI and AMD CrossFireX technology, plus hassle-free troubleshooting features for minimized downtime.ASUS Z97-WS couples innovative thinking with premium components to deliver industry-leading power efficiency. Carefully engineered with Beat Thermal Chokes made of highly conductive and efficient gold-treated coating for minimal-loss power delivery and integrated Dr. MOS MOSFET that both saves space and reduces operating temperatures. For the latest workstation motherboard, ASUS introduce the industry's most durable 12K solid capacitors, and exclusive ASUS ProCool power connectors. Z97-WS is built to stay cool under pressure - and boosts performance, power efficiency and product longevity into extreme levels!Q-code logger is your one-touch troubleshooter that lets users easily check system status at any time. Plug a flash drive into adjacent USB port, press the motherboard's dedicated Q-code logger button and all ASUS Q-code event logs for the current live session will be copied to the drive even with the system off.
Specifications
Product Specifications
Item # | 472731 |
Manufacturer # | Z97-WS |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC1150 |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, USB BIOS Flashback, UEFI BIOS, DMI 2.7 support, ACPI 5.0 support, SMBIOS 2.8 support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 2250 MHz (O.C.) |
Buttons & Keys | MemOK; Power; Reset; CMOS Clear; TPU; EPU; Dr. Power Switch |
Chipset Manufacturer | Intel |
Chipset Model | Z97 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 v3 series |
controller type | Serial ATA/600 |
depth | 9.6 in. |
DisplayPort | Yes |
Environmental Certification | RoHS; WEEE |
eSATA | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 512 MB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 4 x USB 3.0 - header; 1 x audio - header; 1 x Thunderbolt - header; 1 x SPDIF out - header; 1 x FireWire - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.50 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-3200/PC3-25600 (O.C.); DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2500/PC3-20000 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | Z97-WS |
Multi GPU Supported | CrossFireX; SLI |
Network Controller | Intel I210-AT / I218LM |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 4 |
Number of PCI Express x4 Slots | 1 |
Number of SATA Express Interfaces | 2 |
Number of SATA Interfaces | 4 |
Number of Total Expansion Slots | 7 |
Onboard S/PDIF Header | Yes |
Onboard Thunderbolt Header | Yes |
Onboard Video | CPU Dependent Video |
package contents | Z97-WS Workstation Motherboard; Support Disc; User's Manual; ASUS Q-Shield; 1 x COM port cable(s); 6 x SATA 6Gb/s cable(s); 1 x 3-Way SLI Bridge(s); 1 x 4-Way SLI Bridge(s); 1 x SLI Bridge(s); 1 x Q-connector(s) (2 in 1); 1 x 1-port 1394a Module(s) |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 eSATA; 2 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 1 onboard FireWire 400; 4 onboard USB 2.0; 4 onboard USB 3.0; 1 S/PDIF; 1 S/PDIF out; 2 USB 2.0; 6 USB 3.0 |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 6-pin ATX12V connector |
Power Supply Supported | EATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
Processor Technology | Turbo Boost Technology 2.0; Quick Sync Video Technology |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC1150 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-600 -connectors: 1 x 7pin eSATA, 1 x SATA Express port, 1 x M.2 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard FireWire/i.LINK Ports | 1 |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 7 |
Total Number of USB Ports | 8 |
Total Processor Supported | 1 |
