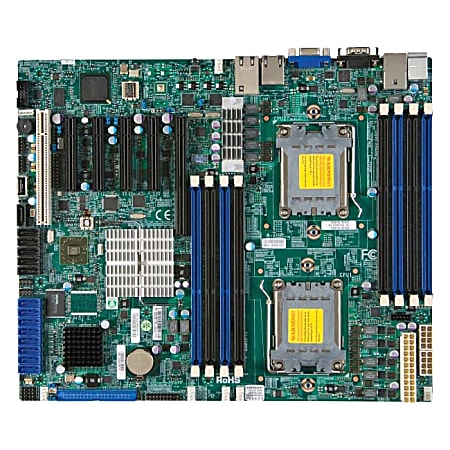

Sign up for Supermicro H8DCL-6 Server Motherboard - AMD Chipset - Socket C32 LGA-1207 - Retail Pack
Item #496180
1 / 1
$400.99/each
DescriptionTechnologically-advanced Motherboard Designs Since 1993 Consistent highest-quality Design, Components, and Production Expertise Extensive Range of x86 Serverboards Available Competitive Price/Performance High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware Standard Form Factors offer Feature - rich Support and application optimization
Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Specifications
Product Specifications
| Item # | 496180 |
| Manufacturer # | MBD-H8DCL-6-O |
| 64-bit Processing | Yes |
| BIOS Features | Power failure recovery (AC loss resume), DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support |
| BIOS Type | AMI |
| brand name | Supermicro |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Chipset Manufacturer | AMD |
| Compatible Processors | Opteron 4000 series |
| controller type | Serial ATA/300 |
| Dedicated Video Memory | 16 MB DDR2 SDRAM |
| depth | 10 in. |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller | Matrox G200eW |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Memory | 16 MB |
| Graphics Controller Model | G200eW |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Internal Interfaces | 1 x USB 2.0 - Type A; 4 x USB 2.0 - header; 1 x serial - header |
| manufacturer | Supermicro Computer, Inc |
| Max Processors Qty | 2 |
| Max Size | 256 GB |
| Maximum Memory | 128 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 1.33 GHz; 1.07 GHz; 800 MHz |
| Memory Standard | DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Memory Technology | DDR3 SDRAM |
| model | H8DCL-6 |
| Network Controller | 2 x Intel 82574L |
| Number of Memory Slots | 8 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 4 |
| Number of PCI Slots | 1 |
| Number of SAS Interfaces | 8 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 6 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | On-board Video Chipset |
| Package Type | Retail |
| PCI Express Standard | PCI Express 2.0 |
| ports | 2 Ethernet (RJ-45); 5 onboard USB 2.0; 2 PS/2; 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub |
| Power Supply Supported | EPS12V |
| Processor Socket | Socket C32 |
| Processor Supported | Opteron Hexa-Core; Opteron Quad-Core |
| Processor Technology | HyperTransport 3.0 Technology |
| PS/2 Port | Yes |
| RAID Levels | 0; 1; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Registered, buffered |
| Sleep / Wake Up | Keyboard wake up, wake on LAN (WOL) |
| Storage Interfaces | AMD SP5100: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10; LSI Logic LSISAS2008: SAS 2 -connectors: 8 - 1 devices - RAID 0 / RAID 1 / RAID 10 |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Total Number of Onboard USB Ports | 5 |
| Total Number of PCI Express Slots | 5 |
| Total Number of USB Ports | 2 |
| Total Processor Supported | 2 |
| warranty length | 1-year limited |
| What's Included | H8DCL-6 Server Motherboard; 2 x Retention; 8 x 57.5CM SATA Flat Cable; 1 x 15.7" USB 2.0 Cable; 1 x 9 Pin Serial Port Cable; 1 x 18" ATA 133/100/66 3-Drop Cable; 1 x I/O Shield; 1 x Driver Disk |
| UPC | 672042090150 |
$400.99/each
