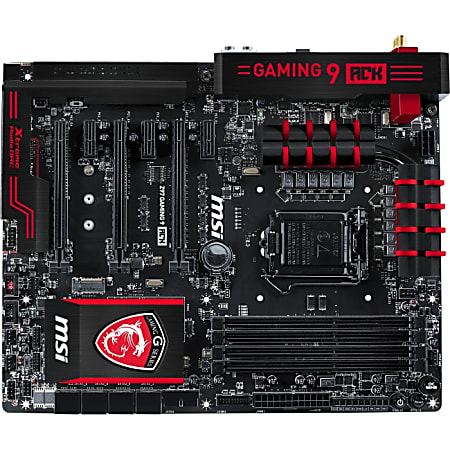

Sign up for MSI Z97 GAMING 9 ACK Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$312.99/each
Description
DOMINATE, CONQUER, DESTROY
- Supports 4th and 5th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
- Supports DDR3-3300(OC) Memory
- ACK: Use Killer DoubleShot Pro to combine Killer WIFI with Killer LAN for the best online gaming experience
- M.2 + USB 3.0 + SATA 6Gb/s
- Xtreme Audio DAC: Experience the Purest Sound Quality
- Audio Boost 2: Reward Your Ears with True Quality
- USB Audio Power: Serve Stable 5V Power & Better Signal Transmission over USB
- XSplit Gamecaster: Show off Your Skills and Achievements
- Guard-Pro: Improved Protection and Power Efficiency
- Gaming App: Boost Your Frame Rate
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- Multi-GPU: NVIDIA SLI & AMD CrossFire Support
- Sound Blaster Cinema 2: Realistic Surround Sound Experience
- Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices
Specifications
Product Specifications
| Item # | 594788 |
| Manufacturer # | Z97 GAMING 9 ACK |
| Number of SATA Interfaces | 8 |
| Number of DisplayPort Outputs | 1 |
| Number of PS/2 Ports | 1 |
| Onboard LEDs Header | Yes |
| Total Number of Onboard USB Ports | 8 |
| Power Supply Supported | ATX12V |
| DisplayPort | Yes |
| Multi GPU Supported | CrossFireX; SLI |
| RAID Levels | 1; 5; 1+0; 0 |
| Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
| HDMI | Yes |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 10 |
| Number of PCI Express x1 Slots | 3 |
| Graphics Controller Manufacturer | Intel |
| Onboard Audio Header | Yes |
| package contents | Z97 GAMING 9 ACK Desktop Motherboard; Door-hanger; MSI GAMING Case Badge; A Set Of Cable Labels; Black M-shield |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC1150 |
| Audio Line In | Yes |
| depth | 9.6" |
| Product Name | Z97 GAMING 9 ACK Desktop Motherboard |
| Number of PCI Express x16 Slots | 3 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 6 |
| Graphics Memory Accessibility | Shared |
| manufacturer | Micro-Star International Co., Ltd |
| 64-bit Processing | Yes |
| Audio Line Out | Yes |
| RAID Supported | Yes |
| brand name | MSI |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Maximum Memory | 32 GB |
| controller type | Serial ATA/600 |
| Audio Channels | 7.1 |
| Number of Onboard USB 2.0 Ports | 4 |
| Gigabit Ethernet | Yes |
| Number of USB 3.0 Ports | 8 |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Number of USB 2.0 Ports | 2 |
| Buttons & Keys | GO2BIOS; Power; Reset; OC Genie; CMOS Clear |
| PS/2 Port | Yes |
| Memory Standard | DDR3-3200/PC3-25600 (O.C.); DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800 |
| Memory Form Factor | DIMM |
| Graphics Memory Technology | DDR3 SDRAM |
| Wireless LAN | Yes |
| Number of Total Expansion Slots | 6 |
| Processor Socket | Socket H3 LGA-1150 |
| Sound Controller Manufacturer | Realtek |
| Chipset Model | Z97 Express |
| Number of M.2 Interfaces | 1 |
| Chipset Manufacturer | Intel |
| Bluetooth | Yes |
| Number of S/PDIF In Ports | 1 |
| form factor | Atx |
| Memory Technology | DDR3 SDRAM |
| Graphics Controller Memory | 1.72 GB |
| Onboard Video | CPU Dependent Video |
| Number of HDMI Outputs | 1 |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of Onboard USB 3.0 Ports | 4 |
| warranty length | 3-year limited |
| model name | Z97 GAMING 9 ACK |
$312.99/each
