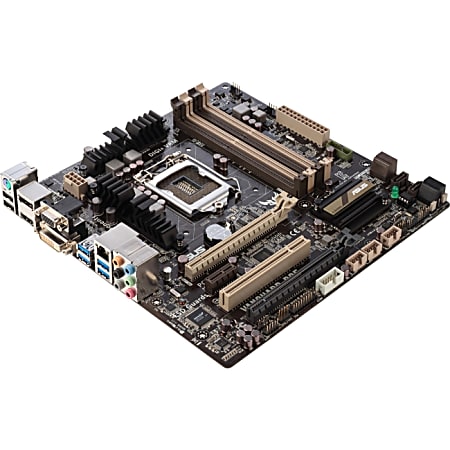

Sign up for TUF VANGUARD B85 Desktop Motherboard - Intel B85 Express Chipset - Socket H3 LGA-1150
1 / 1
$118.99/each
Description
The TUF series delivers a "tough" image. With the unique design & high quality components, TUF series is born for pursuing the preeminent stability, all-round compatibility, and extreme durability. ASUS TUF Thermal Radar Core enables complete system cooling management - quickly, easily and safely. Customizable controls allow you to adjust fan speeds, allowing the temperature to be tuned with just a single click. And talking of single-click simplicity, live update ensures that your Thermal Radar Core is never out of date - just click the button to check for updates.
Specifications
Product Specifications
| Item # | 615906 |
| Manufacturer # | VANGUARD B85 |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887 |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS EZ Flash 2, ASUS O.C. Profile, UEFI BIOS, DMI 2.7 support, ACPI 5.0 support |
| BIOS Type | AMI |
| brand name | TUF |
| Bus Clock | 1600 MHz, 1333 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | B85 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600; Serial ATA/300 |
| depth | 9.6 in. |
| DisplayPort | Yes |
| DVI | Yes |
| Environmental Certification | WEEE; RoHS |
| Ethernet | Yes |
| form factor | Micro ATX |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| HDMI | Yes |
| Internal Interfaces | 2 x USB 2.0 - header; 6 x USB 3.0 - header; 1 x serial - header; 1 x audio - header; 1 x SPDIF out - header |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 1.60 GHz |
| Memory Standard | DDR3-1600/PC3-12800 |
| Memory Technology | DDR3 SDRAM |
| model | VANGUARD B85 |
| Multi GPU Supported | CrossFireX |
| Network Controller | Intel I217V |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Number of PCI Slots | 1 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | VANGUARD B85 Desktop Motherboard; User's Manual; ASUS Q-Shield; 2 x SATA 6Gb/s Cable(s); 1 x Q-connector(s) (2 in 1); 1 x Certification card(s); 1 x Inside sticker(s) |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| Processor Technology | Turbo Boost Technology 2.0; Quick Sync Video Technology |
| Product Name | VANGUARD B85 Desktop Motherboard |
| PS/2 Port | Yes |
| Registered or Buffered | Unbuffered |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices; SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 8 |
| Total Number of PCI Express Slots | 3 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 5-year limited |
$118.99/each
