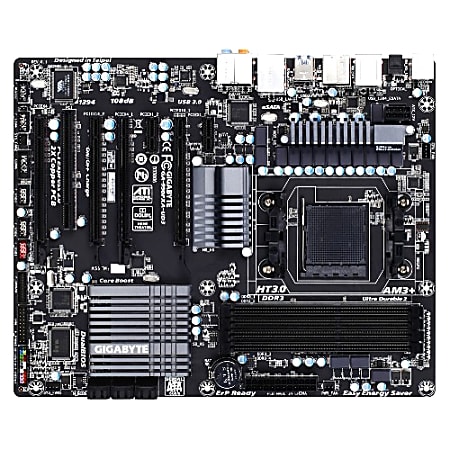

Gigabyte Ultra Durable 3 Classic GA-990FXA-UD3 Desktop Motherboard - AMD 990FX Chipset - Socket AM3 PGA-941
1 / 1
$159.99/each
Description
The 990FXA-UD3 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the Gigabyte 333 onboard acceleration technologies. Featuring the USB 3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5 Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution, Gigabyte AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. All USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.
Specifications
Product Specifications
Item # | 628999 |
Manufacturer # | GA-990FXA-UD3 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC889 |
BIOS Features | DMI 2.0 support, ACPI 1.0b support, SMBIOS 2.4 support, Hybrid EFI Technology |
BIOS Type | Award |
brand name | Gigabyte |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz |
Chipset Manufacturer | AMD |
Chipset Model | 990FX |
Compatible Processors | Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon II, Phenom II X4, Phenom II X6 |
controller type | Serial ATA/600 |
Data Bus Transfer Rate | 5.2 GT/s |
depth | 9.6 in. |
Environmental Certification | WEEE; ErP Ready; China RoHS |
eSATA | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Hardware Features | DualBIOS, Q-Flash, Ultra Durable 3 Classic, 8+2 Phase Power Design, AutoGreen, 3x USB Power Boost, EasyTune6, GIGABYTE Easy Energy Saver, NVIDIA 2-way SLI Technology Support, On/Off Charge, GIGABYTE Turbo XHD, AMD CrossFireX technology support |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, power supply fan tachometer |
HyperTransport Speed | 2600 MHz |
Internal Interfaces | 1 x SPDIF out; 6 x USB 2.0; 2 x USB 3.0; 1 x FireWire; 1 x serial |
manufacturer | GIGABYTE Technology, Inc |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 2 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | GA-990FXA-UD3 |
Multi GPU Supported | SLI; CrossFireX |
Network Controller | Realtek RTL8111E |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 2 |
Number of PCI Express x4 Slots | 2 |
Number of PCI Slots | 1 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 7 |
Onboard Audio Header | Yes |
Onboard LEDs Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
package contents | Ultra Durable 3 Classic GA-990FXA-UD3 Desktop Motherboard; Bundle Software |
PCI Express Standard | PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 2 eSATA; 1 Ethernet (RJ-45); 1 microphone; 1 onboard FireWire 400; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 8 USB 2.0; 2 USB 3.0 |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX; ATX12V |
Processor Socket | Socket AM3+ |
Processor Supported | Phenom II X3; Phenom II X4; Phenom II X2; Phenom II X6; Athlon II X3; Athlon II X4; Athlon II X2; Athlon II; Sempron; Phenom II |
Processor Technology | HyperTransport Technology |
Product Line | Ultra Durable 3 Classic |
PS/2 Port | Yes |
RAID Levels | 0; 1; 5; 1+0; JBOD |
RAID Supported | Yes |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC889 |
Storage Interfaces | AMD SB950: SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD; Marvell 88SE9172: SATA-600 -connectors: 2 x 7pin external SATA - 2 devices - RAID 0 / RAID 1 |
Total Number of FireWire/i.LINK Ports | 1 |
Total Number of Onboard FireWire/i.LINK Ports | 1 |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 6 |
Total Number of USB Ports | 10 |
Total Processor Supported | 1 |
warranty length | 3-year limited |

$159.99/each
