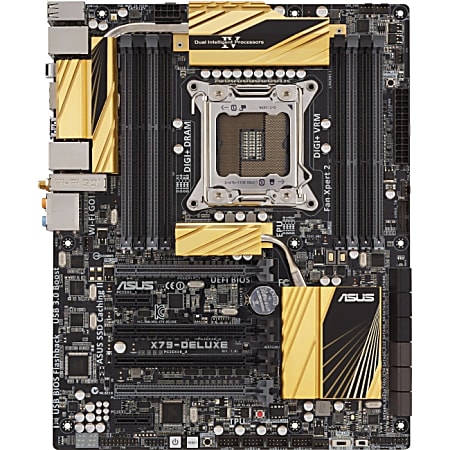

Asus X79-DELUXE Desktop Motherboard - Intel X79 Express Chipset - Socket R LGA-2011
1 / 1
$329.00/each
Description
ASUS X79 motherboards include DIGI+ power control with three digital voltage controllers, including DRAM controllers that offers ultra-precise memory tuning in addition to ultra-precise CPU voltage control. This evolution of innovative, industry-leading ASUS technology provides the best in class control for better efficiency, stability and performance.Onboard Bluetooth v3.0 + HS module enables smart connectivity to Bluetooth and wireless devices with no additional adapter, and peer-to-peer communications with no central access points. Faster than previous versions thanks to 802.11 b/g/n, it lets you enjoy the convenience and faster transfer rates of Wi-Fi on desktops.
Specifications
Product Specifications
Item # | 643500 |
Manufacturer # | X79-DELUXE |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC1150 |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
BIOS Type | AMI |
Bluetooth | Yes |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2800 MHz (O.C.), 2400 MHz (O.C.), 2133 MHz (O.C.) |
Buttons & Keys | CMOS Clear; Reset; MemOK; DirectKey; Power |
Chipset Manufacturer | Intel |
Chipset Model | X79 Express |
Compatible Processors | Core i7 Extreme Edition, Core i7 |
controller type | Serial ATA/600; Serial ATA/300 |
depth | 9.6 in. |
Environmental Certification | RoHS; ErP Ready; WEEE |
eSATA | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Internal Interfaces | 8 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x SPDIF out - header; 1 x audio - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 64 GB |
Maximum Memory | 64 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 2.80 GHz; 2.40 GHz; 2.13 GHz; 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-2800/PC3-22400; DDR3-2400/PC3-19200; DDR3-2133/PC3-17000; DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | X79-DELUXE |
Multi GPU Supported | CrossFireX; SLI |
Network Controller | Intel 82579V / Realtek 8111GR |
Number of Memory Slots | 8 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 4 |
Number of SATA Interfaces | 12 |
Number of Total Expansion Slots | 6 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
package contents | X79-DELUXE Desktop Motherboard; Support Disc; User's Manual; ASUS Q-Shield; 4 x SATA 3Gb/s cable(s); 6 x SATA 6Gb/s cable(s); 1 x ASUS 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x 3-Way SLI Bridge(s); 1 x SLI Bridge(s); 1 x Q-connector(s) (2 in 1) |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 2 eSATA; 2 Ethernet (RJ-45); 1 microphone; 8 onboard USB 2.0; 2 onboard USB 3.0; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 6 USB 3.0 |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA2011 Socket |
Processor Supported | Core i7; Xeon |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL) |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC1150 |
Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin SATA, 2 x 11pin eSATAp - 4 devices; Marvell 88SE9230: SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 10 |
Total Number of PCI Express Slots | 6 |
Total Number of USB Ports | 10 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
