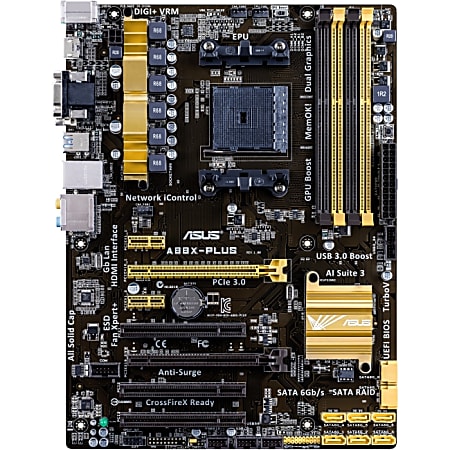

Asus A88X-PLUS Desktop Motherboard - AMD A88X Chipset - Socket FM2+
1 / 1
$105.99/each
Description
PCI Express 3.0 uses improved encoding that provides twice the performance of PCI Express 2.0. Total bandwidth for an x16 link reaches 32 GB/s, delivering unprecedented data speeds combined with the convenience and seamless transition offered by complete backward compatibility.ASUS facilitates USB 3.0 accessibility for both the front and rear panel. Experience the latest Plug and Play connectivity at speeds up to 10 times faster than USB 2.0. The motherboard affords greater convenience with high speed connectivity.
Specifications
Product Specifications
Item # | 643950 |
Manufacturer # | A88X-PLUS |
Number of SATA Interfaces | 8 |
Number of PS/2 Ports | 1 |
Power Supply Supported | ATX12V |
Multi GPU Supported | CrossFireX |
Memory Speed Supported | 2.40 GHz (O.C.); 2.25 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz; 1.87 GHz; 1.60 GHz; 1.33 GHz |
S/PDIF | Yes |
Compatible Processors | Athlon, A series ( supports CPUs with up to 4 cores ) |
Number of Network (RJ-45) Ports | 1 |
Number of DVI Outputs | 1 |
BIOS Type | AMI |
Internal Interfaces | 6 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x audio - header |
Registered or Buffered | Unbuffered |
Graphics Controller Manufacturer | AMD |
Audio Line In | Yes |
Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
Number of PCI Express x16 Slots | 2 |
Total Processor Supported | 1 |
Total Number of PCI Express Slots | 4 |
Graphics Memory Accessibility | Shared |
64-bit Processing | Yes |
Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.), 2200 MHz (O.C.), 2250 MHz (O.C.) |
VGA | Yes |
Max Processors Qty | 1 |
RAID Supported | Yes |
brand name | ASUS |
Audio Channels | 7.1 |
Network Controller | Realtek RTL8111G |
Processor Technology | Turbo Core 3.0 Technology |
Number of USB 2.0 Ports | 4 |
Buttons & Keys | MemOK; GPU Boost |
PS/2 Port | Yes |
DVI | Yes |
Memory Form Factor | DIMM |
Processor Socket | Socket FM2+ |
Chipset Model | A88X |
Sound Controller Manufacturer | Realtek |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
Number of PCI Slots | 3 |
Total Number of Onboard USB Ports | 8 |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
RAID Levels | 0; 1; 5; 1+0; JBOD |
HDMI | Yes |
Processor Supported | Athlon; A-Series; Sempron |
BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, UEFI BIOS, SMBIOS 2.7 support |
Total Number of USB Ports | 6 |
Number of PCI Express x1 Slots | 2 |
Onboard Audio Header | Yes |
package contents | A88X-PLUS Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 6Gb/s Cable(s); Support Disc |
Number of Memory Slots | 4 |
Sound Controller Model | ALC887 |
depth | 8.9 in |
Product Name | A88X-PLUS Desktop Motherboard |
Audio Codec | Realtek ALC887 |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Number of S/PDIF Out Ports | 1 |
Audio Line Out | Yes |
Max Size | 64 GB |
Maximum Memory | 64 GB |
Supported RAM Integrity Check | Non-ECC |
controller type | Serial ATA/600 |
Number of Onboard USB 2.0 Ports | 6 |
Number of USB 3.0 Ports | 2 |
Gigabit Ethernet | Yes |
Network (RJ-45) | Yes |
Microphone Port | Yes |
Onboard Serial Header | Yes |
Memory Standard | DDR3-2400/PC3-19200 (O.C.); DDR3-2250/PC3-18000 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000; DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Graphics Memory Technology | DDR3 SDRAM |
Number of Total Expansion Slots | 7 |
Chipset Manufacturer | AMD |
Memory Technology | DDR3 SDRAM |
form factor | Atx |
Graphics Controller Memory | 2 GB |
Number of HDMI Outputs | 1 |
Number of Onboard USB 3.0 Ports | 2 |
warranty length | 3-year limited |
Onboard S/PDIF Header | Yes |
model name | A88X-PLUS |
