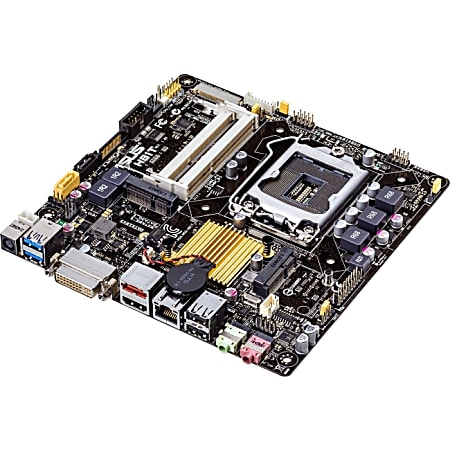

Asus H81T/CSM Desktop Motherboard - Intel H81 Chipset - Socket H3 LGA-1150
1 / 1
$99.00/each
Description
Want to build a DIY PC without the depth? Then you need H81T - the thin mini-ITX motherboard from ASUS. Measuring less than 2.5 cm tall and with a built-in connector for external DC power, it is the perfect choice for all-in-one (AIO) PCs and other slimline builds. Building 'thin' is simpler than you might think.Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
Specifications
Product Specifications
| Item # | 645507 |
| Manufacturer # | H81T/CSM |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887-VD |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.5 support, UEFI BIOS |
| BIOS Type | AMI |
| brand name | ASUS |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | H81 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 6.7 in. |
| DVI | Yes |
| Environmental Certification | RoHS; WEEE |
| eSATA | Yes |
| form factor | Mini ITX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | Jack retasking, ESD Guards, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, Conductive Polymer Capacitors, ASUS USB 3.0 Boost technology, ASUS Network iControl, Onboard mSATA Connector, ASUS Boot Setting, Preboot eXecution Environment (PXE), Clear CMOS Button, anti-pop function |
| HDMI | Yes |
| Internal Interfaces | 5 x USB 2.0 - header; 1 x LVDS - header; 1 x audio - header; 1 x serial - header |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| Max Processors Qty | 1 |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | H81T/CSM |
| Network Controller | Realtek RTL8111G |
| Number of Memory Slots | 2 |
| Number of Mini PCI Express Slots | 1 |
| Number of mSATA Interfaces | 1 |
| Number of SATA Interfaces | 2 |
| Number of Total Expansion Slots | 1 |
| Onboard Video | On-board Video Chipset |
| package contents | H81T/CSM Desktop Motherboard; User's Manual; I/O Shield; Thin Mini ITX I/O Shield; 1 x SATA Power Cable; 1 x SATA 3Gb/s cable(s); 1 x SATA 6Gb/s Cable(s); Support Disc |
| PCI Express Standard | PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 eSATA; 1 Ethernet (RJ-45); 1 HDMI out; 5 onboard USB 2.0; 2 USB 2.0; 2 USB 3.0 |
| Power Connectors | 2-pin power connector |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| Processor Technology | Turbo Boost Technology 2.0 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR), wake on PME |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887-VD |
| Storage Interfaces | SATA-600 -connectors: 1 x 7pin SATA, 1 x mSATA - 2 devices; SATA-300 -connectors: 1 x 7pin Serial ATA, 1 x 7pin external SATA - 2 devices |
| Total Number of Onboard USB Ports | 5 |
| Total Number of USB Ports | 4 |
| Total Processor Supported | 1 |
| UPC | 886227632008 |
