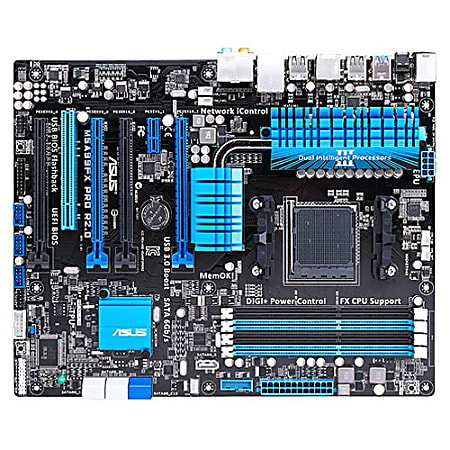

Asus M5A99FX PRO R2.0 Desktop Motherboard - AMD Chipset - Socket AM3+
1 / 1
$139.99/each
Description
The world's first dual intelligent processors from ASUS pioneered twin onboard chips - TPU (TurboV Processing Unit) and EPU (Energy Processing Unit). Third generation Dual Intelligent Processors with DIGI+ power control provides a total CPU, memory and SMART DIGI+ Key profile tuning digital power solution, which includes two digital voltage controllers allowing ultra-precise DRAM tuning in addition to ultra-precise CPU voltage control - a first on the AMD platform. It's upgraded with one-click extreme performance optimization with the user-friendly AI Suite II utility. This evolution of innovative and industry-leading ASUS technology provides super-accurate voltage tuning for better efficiency, stability and performance.The DIGI+ power control design with two digital voltage controllers upgrades motherboard power delivery to an overall solution on AMD AM3+ motherboards, including all DRAM controllers that offers ultra-precise memory tuning in addition to ultra-precise CPU voltage control. This evolution of innovative, industry-leading ASUS technology provides the best in class control for better efficiency, stability and performance.ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. This motherboard affords greater convenience to high speed connectivity.
Specifications
Product Specifications
Item # | 676683 |
Manufacturer # | M5A99FX PRO R2.0 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ASUS MyLogo3, ASUS O.C. Profile, ACPI 2.0a support, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.7 support |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz |
Buttons & Keys | BIOS Flashback; DirectKey; MemOK |
Chipset Manufacturer | AMD |
Compatible Processors | Sempron, Athlon II, Phenom II, FX (supports CPUs with up to 8 cores, Maximum TDP 220 Watt) |
controller type | Serial ATA/600 |
Data Bus Transfer Rate | 5.2 GT/s |
depth | 9.6 in. |
eSATA | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
HyperTransport Speed | 5.20 GT/s |
Internal Interfaces | 2 x USB 3.0; 8 x USB 2.0; 1 x serial; 1 x SPDIF out; 1 x audio |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Bus Speed | 2600 MHz |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM; UDIMM |
Memory Speed Supported | 2.13 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | M5A99FX PRO R2.0 |
Network Controller | Realtek RTL8111F |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 4 |
Number of PCI Slots | 1 |
Number of SATA Interfaces | 7 |
Number of Total Expansion Slots | 6 |
Onboard Audio Header | Yes |
Onboard LEDs Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | No |
PCI Express Standard | PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 eSATA; 1 Ethernet (RJ-45); 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 1 S/PDIF; 1 S/PDIF out; 8 USB 2.0; 2 USB 3.0 |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | Socket AM3+ |
Processor Supported | Athlon II X3; Athlon II X4; Athlon II X2; Athlon X2; FX; Phenom II X3; Phenom II X4; Phenom II X2; Phenom II X6; Sempron; Sempron X2; Phenom II; Athlon II |
Processor Technology | HyperTransport 3.0 Technology; Cool'n'Quiet Technology |
PS/2 Port | Yes |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC892 |
Storage Interfaces | AMD SB950: SATA-600 -connectors: 5 x 7pin SATA, 1 x 7pin eSATA - 6 devices; SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
Supported RAM Integrity Check | Non-ECC, ECC |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 5 |
Total Number of USB Ports | 10 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
What's Included | M5A99FX PRO R2.0 Desktop Motherboard; User's Manual; I/O Shield; 4 x SATA 6Gb/s Cable(s); 1 x SLI Bridge(s); 1 x Q-connector(s) (2 in 1); Support DVD |
