Item #6843785

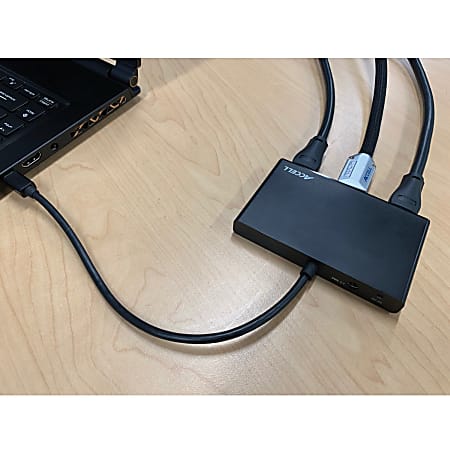

Accell USB-C to 3 HDMI 1.4 Multi-Display (MST) Hub - HDMI/USB A/V Cable for Monitor, Graphics Card, Docking Station, Audio/Video Device, Computer

Item #6843785


    Minimum System Requirements

    • Windows operating system
    • Graphics card that supports DisplayPort Alt Mode over USB-C. Check with the manufacturer of the graphics card if not sure.
    • Tested compatible devices: Dell XPS 12, Dell XPS 13, HP Elitebook x360 G2, HP ZBook, Surface Book 2
    • Direct connection to a computer. Use of a docking station between the computer and MST hub is not recommended.

    Vivid Visuals with 4K Resolution

    The USB-C multi-monitor hub can simultaneously display up to 4Kx2K resolution on up to 3 monitors. The bandwidth can accommodate an additional monitor up to 1080p.

    Please note:

    • If the displays do not automatically configure to the maximum supported resolution and refresh rate, please adjust in Display settings
    • If a monitor does not display
    • You may want to disable the laptop's built-in screen
    • Try setting the refresh rate to one Hz lower such as 59Hz, 29Hz

    One Port Does All

    The USB Type C input delivers power and data through one cord, eliminating the need for an additional power adapter. The compact design allows you to easily pack the hub for your travels.

    Mirror or Extend Your Desktop Over 3 Displays

    Accell's USB-C to 3 HDMI Multi-Display Hub connects up to 3 monitors from a single USB-C output. The multi-monitor splitter supports 3 independent displays.

    You can view a single image across three displays for gaming, graphic design, or spreadsheet analysis. You can also dedicate each display to a separate application for efficient and productive multitasking. Use 2 MST Hubs with a graphics card with multiple video outputs to connect up to 6 external displays -- ideal for digital signage applications such as video wall configurations.

    Please note:

    • 2-hub configurations require a video card with 2 USB-C outputs
    • The maximum number of displays is limited by the number of Display Pipes. See Video Card manufacturer for details.
    • Compatible with Thunderbolt 3
    • Advanced WideEye™SerDes Technology capable of receiving data over a long range
    • Data bandwidth up to 5.4 Gbps per lane, 21.6 Gbps total
    • Utilizes Multi-Stream Transport (MST) protocol
    • Please check if your source device supports the technology
    • Compliant to HDMI 1.4b, HDCP 1.3
    • Can simultaneously display 2 Ultra HD resolution
    Item #6843785
    Manufacturer #5GK586
    Device SupportedMonitor; Computer
    Warranty2-Year Limited
    brand nameAccell
    manufacturerACCELL CORPORATION
    Product TypeAudio Cable
    Connector Type on First EndUSB Type C - Male
    Connector Type on Second EndHDMI 1.4b Digital Audio/Video - Female
    Connector on First End Details1 x USB Type C - Male
    Connector on Second End Details3 x HDMI 1.4b Digital Audio/Video - Female
    Data Transfer Rate2899102924.8
