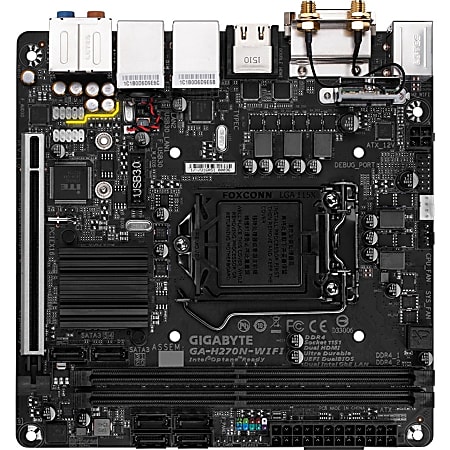

Gigabyte Ultra Durable GA-H270N-WIFI Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Intel Optane Memory Ready - Mini ITX - 32 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces
- Supports 7th/ 6th Generation Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Intel® USB 3.1 Gen 1 with USB Type-C™
- Intel® Optane™ Memory Ready
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- ALC1220 120dB SNR HD Audio with Smart Headphone Amp
- 802.11ac Dual Band 867Mbps wireless supports MU-MIMO and BT4.2
- Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- Ultra Durable™ Metal Shielding over PCIe Slots
- GIGABYTE UEFI DualBIOS™
- APP Center Including Cloud Station™ Utility
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
All Hybrid Fan Pin Headers
- Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly.
- Supports up to 2 amps with built-in overcurrent protection-a must for high-end high current fans.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.
Faster and Better Coverage with Intel® Dual Band 802.11ac WIFI+BT4.2 Module
The onboard 802.11ac WIFI module from Intel® supports up to 867 Mb/s wireless networks and BLUETOOTH 4.2. The bonded 2.4GHz/5GHz Dual Band and 2T2R antenna expands your coverage.
Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Dual Intel® Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Immersive VR Gaming Experience
- VR requires more performance than Full HD graphics for a steady 90FPS or greater.
- Only Gaming PCs can provide the best VR experience.
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
ALC 1220 120dB SNR HD Audio
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 108dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
- RAID supported levels provide data reliability and fault tolerance
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
- Supports Intel HD Graphics controller to enable impressive graphics and enhanced visual quality
- Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Enjoy the freedom of Wi-Fi and connect devices faster
Product Specifications
| Item # | 6952138 |
| Manufacturer # | GA-H270N-WIFI |
| CPU Brand | Intel |
| CPU Series | Celeron,Core i3,Core i5,Core i7,Pentium |
| Graphic Port Type | Digital Visual Interface (DVI); High-Definition Multimedia Interface (HDMI) |
| model | GA-H270N-WIFI |
| Motherboard Form Factor | Mini ITX |
| Number of Memory Slots | 2 |
| Number of PCI Express Slots | 1 |
| Number of USB Ports | 5 |
| Warranty | 3-Year Limited |
| brand name | Gigabyte |
| manufacturer | GBT INC. |
| Maximum Memory Supported | 34359738368 |
| Product Feature 1 | Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games |
| Product Feature 2 | DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput |
| Product Feature 3 | RAID supported levels provide data reliability and fault tolerance |
| Product Feature 4 | Supports Intel HD Graphics controller to enable impressive graphics and enhanced visual quality |
| Product Feature 5 | Enjoy the freedom of Wi-Fi and connect devices faster |
| Product Feature 6 | HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display |
| Product Feature 7 | Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor |
| UPC | 889523008669 |
