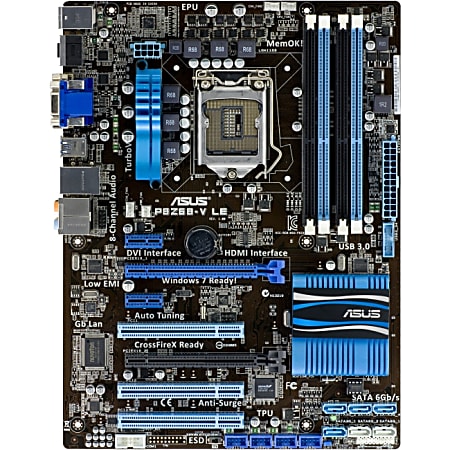

Sign up for Asus P8Z68-V LE Desktop Motherboard - Intel Z68 Express Chipset - Socket H2 LGA-1155
1 / 1
$167.99/each
Description
Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature.With switchable graphics, all ASUS P8Z68 series motherboards leverage the transcending power of Sandy Bridge, allowing users to enjoy three times faster video conversion with Intel Quick Sync Video technology.
Specifications
Product Specifications
| Item # | 774960 |
| Manufacturer # | 90-MIBGS0-G0AAY0KZ |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC892 |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.5 support, ASUS EFI BIOS, UEFI BIOS |
| BIOS Type | AMI |
| brand name | ASUS |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | Z68 Express |
| Compatible Processors | Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series |
| controller type | Serial ATA/600; Serial ATA/300 |
| depth | 9 in. |
| DVI | Yes |
| Environmental Certification | REACH; WEEE; RoHS |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| HDMI | Yes |
| Internal Interfaces | 2 x USB 3.0; 8 x USB 2.0; 1 x serial; 1 x SPDIF out; 1 x audio |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | UDIMM |
| Memory Speed Supported | 2.20 GHz (O.C.); 2.13 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | P8Z68-V LE |
| Multi GPU Supported | CrossFireX |
| Network Controller | Realtek RTL8111E |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Number of PCI Slots | 3 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 7 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | P8Z68-V LE Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 3Gb/s cable(s); 2 x SATA 6Gb/s Cable(s); Support DVD |
| PCI Express Standard | PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 8 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | EPS12V |
| Processor Socket | LGA1155 Socket |
| Processor Supported | Core i3; Core i5; Core i7; Celeron Dual-Core; Pentium Dual-core |
| Processor Technology | Turbo Boost Technology 2.0; Enhanced SpeedStep Technology; Virtualization Technology |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC892 |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 10 |
| Total Number of PCI Express Slots | 4 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
$167.99/each
