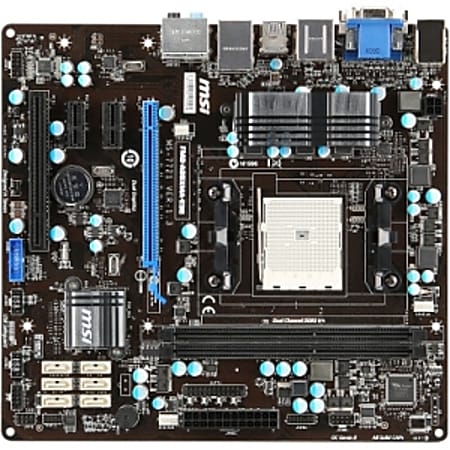

Sign up for MSI FM2-A85XMA-E35 Desktop Motherboard - AMD A85X Chipset - Socket FM2
1 / 1
$94.99/each
Description
The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.USB safeguard can prevent mainboard and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the mainboard. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan.
Specifications
Product Specifications
| Item # | 794782 |
| Manufacturer # | FM2-A85XMA-E35 |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887 |
| BIOS Features | UEFI BIOS, MSI ClickBIOS II |
| brand name | MSI |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz |
| Chipset Manufacturer | AMD |
| Chipset Model | A85X |
| Compatible Processors | Athlon II X2, Athlon II X4, A8 series, A6 series, A4 series, A10 series |
| controller type | Serial ATA/600 |
| depth | 9 in. |
| DVI | Yes |
| Environmental Certification | WEEE; China RoHS |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Memory | 2 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | AMD Cool 'n' Quiet Technology, USB Safeguard, All-Solid Capacitor motherboard Design, audio jack detect technology, OC Genie II, MSI Winki 3, Super Charger, AMD Radeon Dual Graphics |
| HDMI | Yes |
| Internal Interfaces | 2 x USB 2.0; 1 x audio - header; 1 x USB 3.0 |
| manufacturer | MSI |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM; UDIMM |
| Memory Speed Supported | 2.13 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | FM2-A85XMA-E35 |
| Multi GPU Supported | Hybrid CrossFireX |
| Network Controller | Realtek RTL8111E |
| Number of Memory Slots | 2 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Number of PCI Slots | 1 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard Parallel Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 6 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Power Supply Supported | ATX12V |
| Processor Socket | Socket FM2 |
| Processor Supported | A-Series; Athlon X4 |
| Processor Technology | Cool'n'Quiet Technology |
| PS/2 Port | Yes |
| RAID Levels | 0; 1; 5; 1+0; JBOD |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 3 |
| Total Number of USB Ports | 8 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$94.99/each
