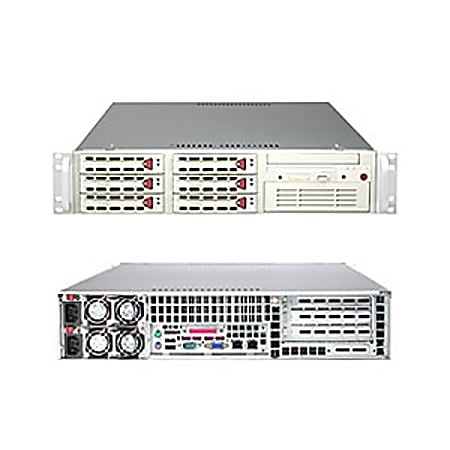

Supermicro SuperServer 6023L-8R Barebone System
1 / 1
$1303.99/each
Description
The new SuperServer 6023L-8R provides you with all the tools you need to succeed in today's ever-changing marketplace. The expertly designed 2U chassis is ideal for high-performance systems with its exceptional thermal control architecture providing abundant cooling for two high-speed Xeon processors and six hot-swap SCSI HDDs. Performance and reliability is assured with dual Intel Xeon Processors of up to 3.06GHz with a 512K L2 cache, up to 12 GB of DDR-266/200 memory, Adaptec AIC-7902 Ultra320 SCSI controller, the latest Broadcom 5704 dual Gigabit LAN, four hot-plug redundant fans, and a hefty redundant 400W power supply. This 2U high-density rackmount solution is pre-configured for optimal performance right out of the box, minimizing the setup time, fine-tuning and resources required. Sophisticated management software is included to ensure that the SuperServer 6023L-8R is simple to configure, deploy and manage on a day-to-day basis. Key applications include server clustering, e-business, front-end server, database applications, business critical applications, and primary server for mid-size companies.
Specifications
Product Specifications
| Item # | 834119 |
| Manufacturer # | SYS-6023L-8RB |
| Additional Information | Processor:Dual mPGA604 ZIF Sockets; Supports up to two Intel Xeon processor(s) with 1MB of integrated Advanced Transfer Cache up to 3.20GHz; System Bus 533MHz/400MHz system bus; Memory:Memory must be populated in pairs; Memory Type DDR266/200, 72-bit SDRAM; Input / Output:Dual EIDE channels support up to four UDMA IDE devices; Supports UDMA Mode 5, PIO Mode 4, and ATA/100; Up to 4 USB ports; 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support; BIOS Type:4Mb Flash EEPROM with AMI BIOS; FAN: |
| brand name | Supermicro |
| Chipset Manufacturer | ServerWorks |
| Chipset Model | GC-LE |
| color | Black |
| depth | 25.7 in. |
| Graphics Controller Interface | PCI |
| Graphics Controller Manufacturer | ATI |
| Graphics Controller Model | RAGE XL |
| Graphics Memory Capacity | 8 MB |
| Input Voltage | 110 V AC; 220 V AC |
| manufacturer | Supermicro Computer, Inc |
| Maximum Memory | 12 GB |
| Memory Technology | DDR SDRAM |
| model | 6023L-8R |
| Number of External 5.25" Bays | 1 |
| Number of PCI-X Slots | 1 |
| Number of Processors Supported | 2 |
| Number of Total Expansion Bays | 7 |
| Number of Total Expansion Slots | 1 |
| Optical Drive Type | CD-Reader |
| Optical Media Supported | CD-ROM |
| package contents | 1x SuperServer 6023L-8R; 1x Super X5DLR-8G2 Motherboard; 1x 2U SC822R-400RC Chassis (black); 2x SP402-2S Redundant 400W power supply module; 1x 2U Power Supply Backplane for SP402-2S modules; 1x Redundant power supply housing; 1x Panasonic 3.5" 1.44MB Floppy Drive; 1x Slim 24x TEAC CD-ROM Drive; 6x 1" SCA drive tray; 1x 2U SCSI Backplane with SAF-TE; 1x 3-slot 3.3V Active PCI-X Riser Card for Serverworks GC-LE chipset; 4x 80mm blower fan; 1x 2U Chassis Mounting Rails |
| ports | 1 10/100/1000 Ethernet (RJ-45); 1 VGA 15-pin D-sub |
| Processor Supported | Xeon |
| Product Line | SuperServer |
| Rack Height | 2U |
| software included | No |
| weight | 53 lb |
| UPC | 672042821341 |
$1303.99/each
