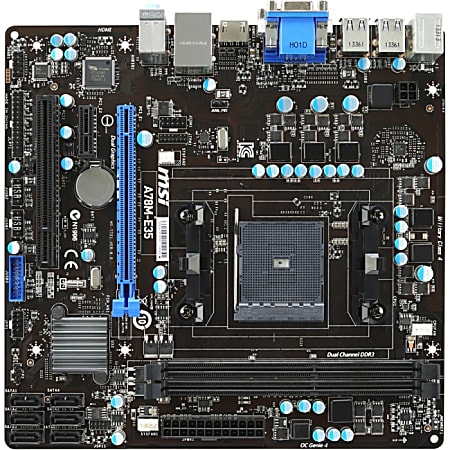

MSI A78M-E35 Desktop Motherboard - AMD A78 Chipset - Socket FM2+
1 / 1
$74.99/each
Description
MSI's Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The standard in stability built on a proven technology of high quality components.The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate.
Specifications
Product Specifications
Item # | 851077 |
Manufacturer # | A78M-E35 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC887 |
BIOS Features | M-Flash, MSI ClickBIOS 4 |
brand name | MSI |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz (O.C.) |
Chipset Manufacturer | AMD |
Chipset Model | A78 |
Compatible Processors | Athlon, A series |
controller type | Serial ATA/600 |
depth | 8.5 in. |
DVI | Yes |
Environmental Certification | WEEE; China RoHS |
form factor | Micro ATX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | AMD |
Graphics Controller Memory | 2 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | AMD Cool 'n' Quiet Technology, USB Safeguard, Intel Extreme Memory Profile (XMP) support, MSI Winki 3, Super Charger, AMD Radeon Dual Graphics, AMD Memory Profile (AMP) support, MSI Military Class IV, Military Class Essentials, OC Genie 4, MSI Fast Boot, Clear CMOS Button |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x serial - header; 1 x parallel - header; 1 x audio - header |
manufacturer | MSI |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 2.13 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | A78M-E35 |
Network Controller | Realtek RTL8111G |
Number of Memory Slots | 2 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 1 |
Number of PCI Slots | 1 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 3 |
Onboard Audio Header | Yes |
Onboard Parallel Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | Socket FM2+ |
Processor Supported | Athlon; A-Series |
PS/2 Port | Yes |
RAID Levels | 0; 1; 1+0; 5 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 6 |
Total Number of PCI Express Slots | 2 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
weight | 2.86 lb |
$74.99/each
