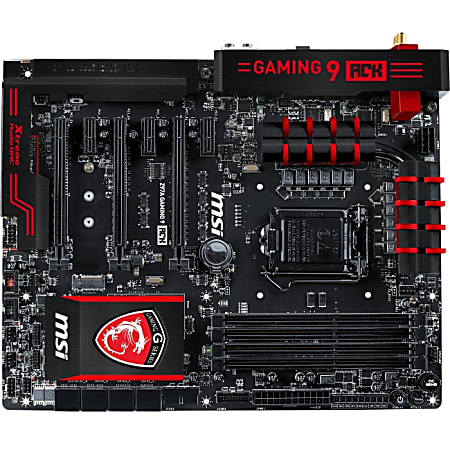

Sign up for MSI Z97A GAMING 9 ACK Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$323.99/each
Description
MSI GAMING motherboards are designed to provide gamers with outstanding features and technology. Backed by the imposing looks of MSI's Dragon, each motherboard is an engineering masterpiece tailored to gaming perfection. USB 3.1 allows for speeds up to 10 Gbps, doubling the speed compared to USB 3.0 and 20x faster than legacy USB 2.0. USB 3.1 is even faster than SATA III! Transferring your favorite games, music and movies over USB has never been faster.
Specifications
Product Specifications
| Item # | 912477 |
| Manufacturer # | Z97A GAMING 9 ACK |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC1150 |
| BIOS Features | DMI support, MSI ClickBIOS 4, MSI MultiBIOS II |
| Bluetooth | Yes |
| brand name | MSI |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.) |
| Chipset Manufacturer | Intel |
| Chipset Model | Z97 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 9.6 in. |
| DisplayPort | Yes |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 512 MB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| HDMI | Yes |
| Internal Interfaces | 4 x USB 2.0 - header; 4 x USB 3.0 - header; 1 x audio - header |
| manufacturer | MSI |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3L-10600; DDR3-1066/PC3-8500; DDR3-3200/PC3-25600 (O.C.) |
| Memory Technology | DDR3 SDRAM |
| model | Z97A GAMING 9 ACK |
| Multi GPU Supported | CrossFireX; SLI |
| Network Controller | Killer Gaming E2205 / 1525 |
| Number of M.2 Interfaces | 1 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 8 |
| Number of Total Expansion Slots | 6 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | Z97A GAMING 9 ACK Desktop Motherboard; Cables and Connectors; Case Badge; Door Hanger; Cable Labels; Black M-shield |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 4 onboard USB 3.0; 1 PS/2; 2 USB 2.0; 6 USB 3.0; 2 USB 3.1 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| Processor Technology | Smart Response Technology |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 10 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC1150 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 8 |
| Total Number of PCI Express Slots | 6 |
| Total Number of USB Ports | 10 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
| Wireless LAN | Yes |
