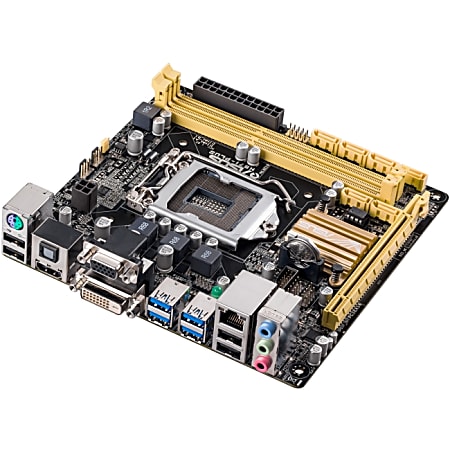

Asus H87I-PLUS Desktop Motherboard - Intel H87 Express Chipset - Socket H3 LGA-1150
1 / 1
$118.99/each
Description
The Intel H87 Express chipset is a single-chipset design that supports socket LGA1150 4th generation Intel processor. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel H87 Express chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance.Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. Together, these perfect your BIOS experience.
Specifications
Product Specifications
Item # | 930061 |
Manufacturer # | 90MB0F30-M0AAY0 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC887 |
BIOS Features | DMI 2.0 support, WfM 2.0 support, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.5 support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
Chipset Manufacturer | Intel |
Chipset Model | H87 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 6.7 in. |
DVI | Yes |
Environmental Certification | WEEE; RoHS; ErP Ready |
form factor | Mini ITX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | ASUS Anti-Surge Protection, 4 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, GPU Boost, ASUS EZ DIY, CrashFree BIOS 3, All-Solid Capacitor motherboard Design, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, USB 3.0 Boost, ASUS Network iControl, ASUS Remote GO!, ASUS 5X PROTECTION, 4K Ultra HD ready, ASUS Enhanced DRAM Overcurrent Protection |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x SPDIF out - header; 1 x audio - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 16 GB |
Maximum Memory | 16 GB |
Memory Form Factor | UDIMM |
Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | H87I-PLUS |
Network Controller | Intel I217V |
Number of Memory Slots | 2 |
Number of PCI Express x16 Slots | 1 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 1 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Video | CPU Dependent Video |
package contents | H87I-PLUS Desktop Motherboard; Support Disc; User's Manual; I/O Shield; 2 x SATA 6Gb/s Cable(s) |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
Processor Technology | Turbo Boost Technology 2.0 |
PS/2 Port | Yes |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL) |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 6 |
Total Number of PCI Express Slots | 1 |
Total Number of USB Ports | 8 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
